Quick Details
-
Brand Name:
-
xindun
-
Model Number:
-
XD-Wonder2 mppt
-
Work Time (h):
-
6~24H
-
Max PV Power:
-
5600W
-
Max PV Voltage:
-
180V
-
Certificate:
-
CE RoHS
-
Warranty:
-
12 months
-
Rated Voltage:
-
12V/24V/48V
-
Color:
-
white or customized
-
Charge current:
-
10A~100A
-
Control Mode:
-
MPPT
-
Battery type:
-
lead-acid batteries / lithium batteries
-
Keywords:
-
mppt solar charge controller bangladesh price
-
OEM:
-
Accept OEM/ODM
-
Protection function:
-
reverse connection,short circuit,overcharge,ant charge protection
-
Display:
-
LCD
-

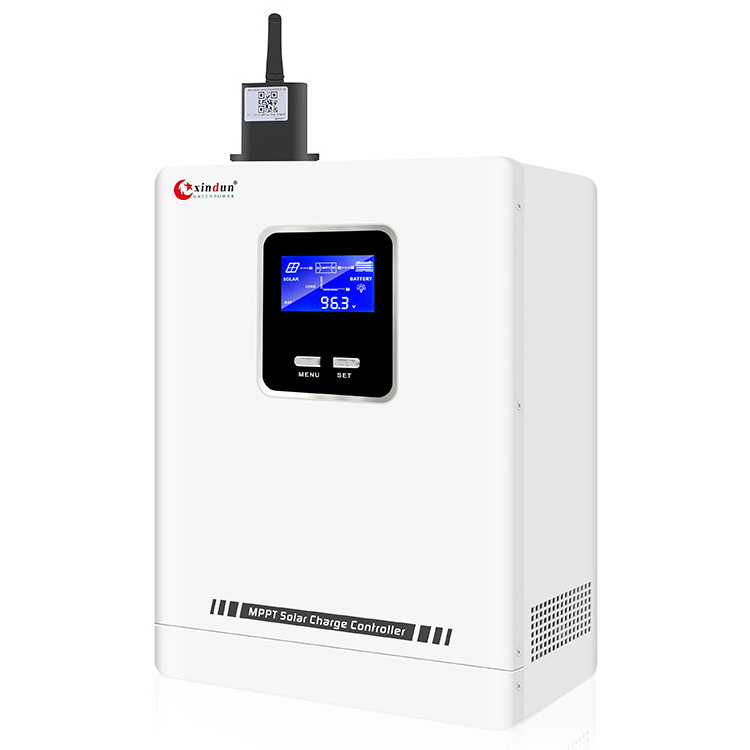

Product name:
-
Solar Charge Controller
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
xindun
-
Model Number:
-
XD-Wonder2 mppt
-
Work Time (h):
-
6~24H
-
Max PV Power:
-
5600W
-
Max PV Voltage:
-
180V
-
Certificate:
-
CE RoHS
-
Warranty:
-
12 months
-
Rated Voltage:
-
12V/24V/48V
-
Color:
-
white or customized
-
Charge current:
-
10A~100A
-
Control Mode:
-
MPPT
-
Battery type:
-
lead-acid batteries / lithium batteries
-
Keywords:
-
mppt solar charge controller bangladesh price
-
OEM:
-
Accept OEM/ODM
-
Protection function:
-
reverse connection,short circuit,overcharge,ant charge protection
-
Display:
-
LCD
-
Product name:
-
Solar Charge Controller
Inverter Feature
1.
Advanced MPPT tracking algorithm, with tracking efficiency up to 99%. Compared with ordinary
PWM algorithm, the power generation efficiency can be improved by about 20%；
2.
LCD graphic display of photovoltaic power generation data and simulation of power generation process；
3.
Multiple load working modes can be set to adapt to different working occasions；
4.
Ultra wide photovoltaic input voltage range, more convenient system configuration；
5.
It supports a variety of lead-acid batteries and lithium batteries, and users can customize the
charging and discharging parameters; Users are more flexible and convenient to use；
6.
Lithium battery activation function;
7.
Full range of electronic protection functions: battery anti reverse connection, PV anti reverse connection,
charging over-current, DC output over-current, over temperature, over-voltage and undervoltage protection;
8.
Intelligent battery management function, extending battery life;
9.
RS485 communication interface (Mod Bus protocol) and mobile phone APP are convenient for users to integrate and manage.
Highlight
Specification
|
Model: Wonder2
|
10124, 20124, 30124
|
1048， 2048， 3048
|
40124， 50124， 60124
|
4048， 5048， 6048
|
80124， 100124
|
8048， 10048
|
||||||
|
Rated Current
|
10A/20A/30A
|
|
40A/50A/60A
|
|
80A/100A
|
|
||||||
|
Rated System Voltage
|
12V/24V
|
48V
|
12V/24V
|
48V
|
12V/24V
|
48V
|
||||||
|
Max PV Input Voltage(Voc)
(At the lowest ambient temperature) |
120V
|
180V
|
120V
|
180V
|
120V
|
180V
|
||||||
|
MPPT Tracking Voltage Range
|
12V system: 15V-80V; 24V system: 30V-100V; 48V system: 60V-140V
|
|
|
|
|
|
||||||
|
Recommended operating voltage range
|
12V system: 15V-30V; 24V system: 30V-60V; 48V system: 60V-90V
|
|
|
|
|
|
||||||
|
PV array Max power
|
12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A);
24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A); 48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A) |
|
|
|
|
|
||||||
|
Battery Type
|
Lead acid battery/Lithium battery(Users can customize charging parameters for other types of batteries)
|
|
|
|
|
|
||||||
|
Floating Voltage
|
13.8V/Single battery
|
|
|
|
|
|
||||||
|
Charge Voltage
|
14.2V/Single battery
|
|
|
|
|
|
||||||
|
Charging Protection Voltage
|
15V/Single battery
|
|
|
|
|
|
||||||
|
Promote recovery voltage
|
13.8V/Single battery
|
|
|
|
|
|
||||||
|
Recovery voltage after low voltage disconnect
|
12.5V/Single battery
|
|
|
|
|
|
||||||
|
Discharge Limited voltage
|
10.5V/Single battery
|
|
|
|
|
|
||||||
|
Temperature Compensation Coefficient
|
-3mV / ℃ / 2V (25℃ is base line) (Optional)
|
|
|
|
|
|
||||||
|
Charging Mode
|
MPPT maximum power point tracking
|
|
|
|
|
|
||||||
|
Charging Method
|
Three stages: constant current(MPPT); constant voltage; floating charge
|
|
|
|
|
|
||||||
|
Protection
|
Over-voltage/under-voltage/over-temperature/Anti-reverse connection protection
|
|
|
|
|
|
||||||
|
Conversion Efficiency
|
>98%
|
|
|
|
|
|
||||||
|
MPPT Tracking Efficiency
|
>99%
|
|
|
|
|
|
||||||
|
Machine Size(L*W*Hmm)
|
214*155*72.8
|
|
238*180*82
|
|
315*210*106.5
|
|
||||||
|
Package Size(L*W*Hmm)
|
243*184*115（1pc）
497*379*247 (8pcs) |
|
267*209*124（1pc）
639*278*265 (6pcs) |
|
344*239*149（1pc）
489*355*315 (4pcs) |
|
||||||
|
N.W(kg)
|
1.6（1pc）
|
|
2.4（1pc）
|
|
4.2（1pc）
|
|
||||||
|
G.W.(kg)
|
1.8（1pc）
|
|
2.7（1pc）
|
|
4.6（1pc）
|
|
||||||
|
system parameter
|
|
|
|
|
|
|
||||||
|
Display
|
LCD
|
|
|
|
|
|
||||||
|
Thermal Method
|
Cooling fan in intelligent control
|
|
|
|
|
|
||||||
|
Type Of Mechanical Protection
|
IP20
|
|
|
|
|
|
||||||
|
Operating Temperature
|
-15℃~+50℃
|
|
|
|
|
|
||||||
|
Storage Temperature
|
-20℃~+60℃
|
|
|
|
|
|
||||||
|
Elevation
|
5000m(Dreating above 2000m)
|
|
|
|
|
|
||||||
|
Humidity
|
5%~95%(No condensation)
|
|
|
|
|
|
||||||
|
Communication
|
RS485/APP（WIFI monitoring or GPRS monitoring）
|
|
|
|
|
|
||||||
|
Note: All specifications are subject to change without prior notice
|
|
|
|
|
|
|
||||||
Product Detail
Wiring diagram
Packing&Delivery
Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
