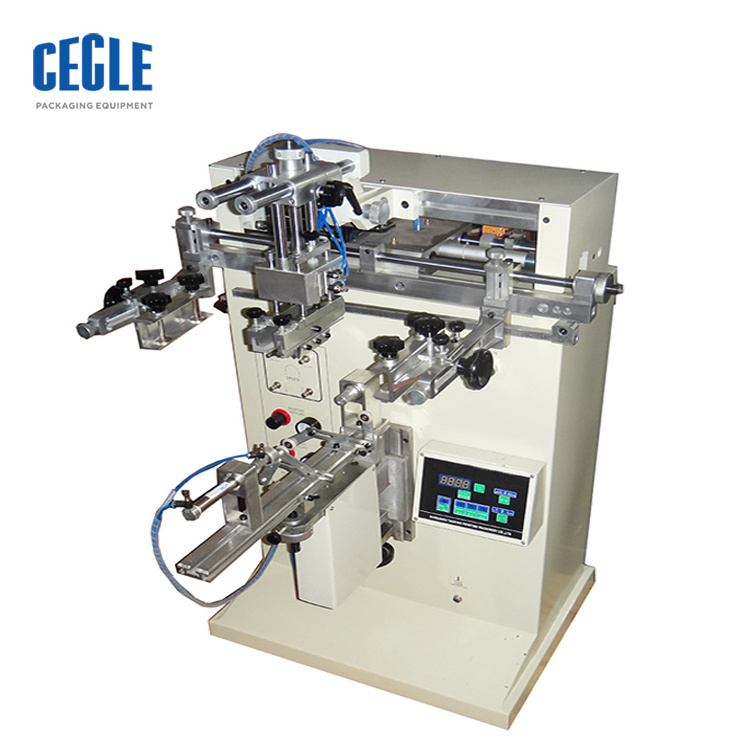

Semi-Automatic Bottle Screen Printing Machine
Curved screen printing machine (
S model
) is suitable for printing curved surface products.
- Product Details
- {{item.text}}
Quick Details
-
Applicable Industries:
-
Printing
-
Place of Origin:
-
China
-
Brand Name:
-
CECLE
-
Dimensions(L*W*H):
-
1980*1150*1650mm
-
Weight:
-
360 KG
-
Certification:
-
CE
-
Core Components:
-
screen printing machine
-
Marketing Type:
-
Hot Product
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Voltage:
-
220V/50HZ
-
Applicable Industries:
-
Printing
-
Place of Origin:
-
China
-
Brand Name:
-
CECLE
-
Dimensions(L*W*H):
-
1980*1150*1650mm
-
Weight:
-
360 KG
-
Certification:
-
CE
-
Core Components:
-
screen printing machine
-
Marketing Type:
-
Hot Product
Product Description
Application
This machine is widely used in PET, PVC, IMD ,transfer paper (film), floor heating film, geothermal film, electrothermal film, color paper, film, name plate, flexible circuit board, mobile phone keys, 3 m glue, glue, film switch, trademark laser, scratch CARDS, self-adhesive stickers, paper, aluminum foil and copper foil this roll material silk screen printing.
Curved Screen Printing Machine.
Plane & Surface Screen Printing Machine.
Flat&Curved screen printing machine (
SM model
) is suitable for printing flat and curved surface products.
|
Model
|
TD-250S
|
TD-250SM
|
TD-400S
|
TD-400SM
|
|||
|
Max printing size
|
170*200mm/7"*8"
|
170*220mm/7"*9"
|
360*200mm/14"*8"
|
360*200mm/14"*8"
|
|||
|
Max printing area
|
240*200mm/9"*8"
|
|
380*200mm/15"*8"
|
|
|||
|
Max size of screen frame
|
380*350mm/15"*14"
|
|
580*350mm/23"*14"
|
|
|||
|
Max printing speed
|
1200(pcs/h)
|
|
|
|
|||
|
Printing length
|
≤250mm/9"
|
|
|
|
|||
|
Air pressure
|
5bar
|
|
|
|
|||
|
Gross Power
|
20w
|
|
|
|
|||
|
Voltage
|
220V/50HZ
|
|
|
|
|||
|
Weight
|
100kg/220lbs
|
120kg/265lbs
|
120kg/265lbs
|
120kg/265lbs
|
|||
|
Overall dimensions
|
730*580*1280mm
(29"*23"*50")
|
730*580*1280mm
(29"*23"*50")
|
960*900*1380mm
(38"*35"*54")
|
960*900*1380mm
(38"*35"*54")
|
|||
|
Model
|
TD-600S
|
TD-800S
|
TD-1100S
|
||
|
Max printing size
|
Ø200mm/8"
|
1240*350mm/49"*14"
|
1330*350mm/52"*14"
|
||
|
Max printing area
|
500*250mm/20"*10"
|
780*300mm/31"*12"
|
1050*350mm/41"*14"
|
||
|
Max size of screen frame
|
800*350mm/31"*14"
|
1000*350mm/39"*14"
|
1200*350mm/47"*14"
|
||
|
Max printing speed
|
1000(pcs/h)
|
800(pcs/h)
|
500(pcs/h)
|
||
|
Printing length
|
≤350mm/14"
|
≤400mm/16"
|
≤400mm/16"
|
||
|
Air pressure
|
6bar
|
5bar
|
6bar
|
||
|
Gross Power
|
20w
|
|
|
||
|
Voltage
|
220V/50HZ
|
|
|
||
|
Weight
|
140kg/309lbs
|
140kg/309lbs
|
360kg/794lbs
|
||
|
Overall dimensions
|
1580*950*1650mm
(62"*37"*65")
|
1580*950*1650mm
(62"*37"*65")
|
1980*1150*1650mm
(78"*45"*65")
|
||
Our Company
Certifications
Our Business
Our Service
FAQ
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: We accept T/T, Western Union paying methods. For those orders less than 500USD, we accept PayPal to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Your Satisfaction is Our Honor!
