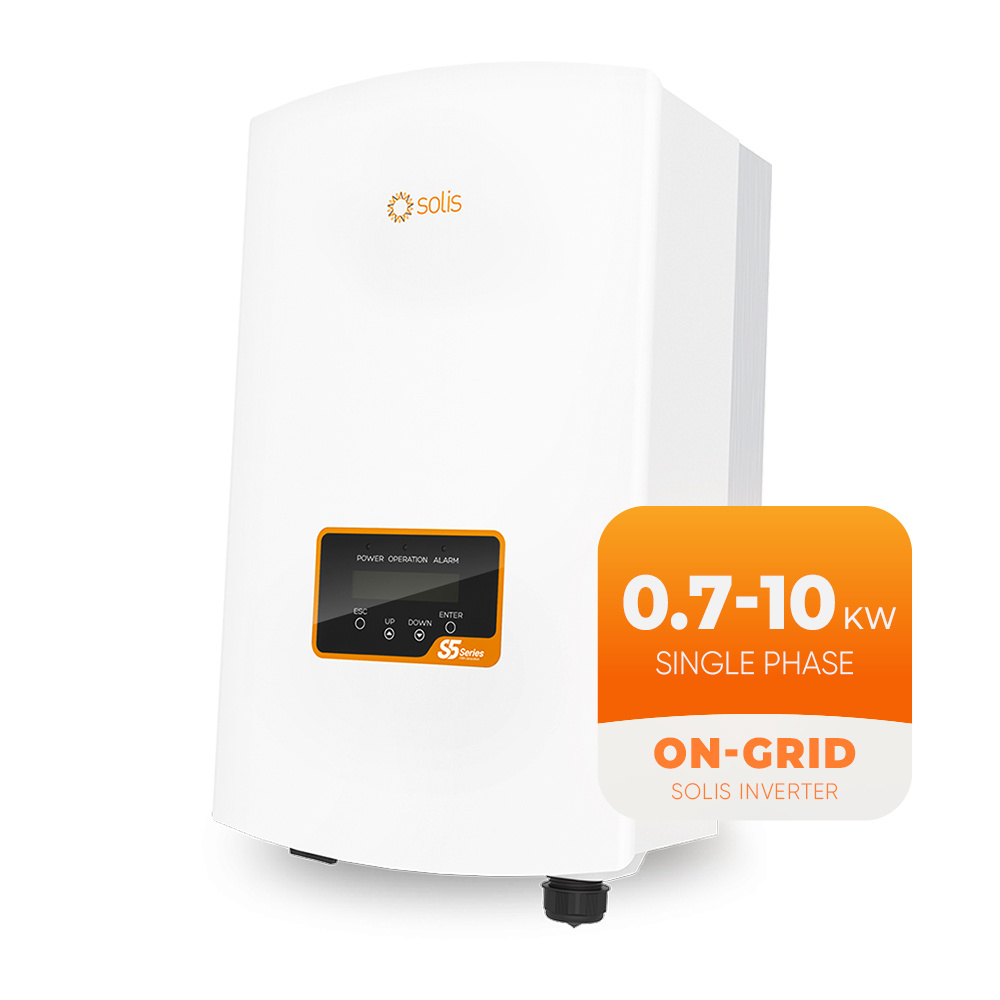

0.7-10KW1-3 MPPTs
Single Phase 220-240V 50/60Hz
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Solis
-
Model Number:
-
Solis Inverter 0.7-10KW1-ON
-
Input Voltage:
-
100-500V
-
Output Voltage:
-
1/N/PE, 220 V / 230 V
-
Output Current:
-
10-50A
-
Output Frequency:
-
50/60Hz
-
Size:
-
333*579*253 mm
-
Certificate:
-
CE/IEC
-
Warranty:
-
10 Years
-
Weight:
-
20 kg
-
Product name:
-
Solis On Grid Solar Inverter
-
PV Input Power:
-
0.7-10KW
-
MPPT Voltage Range:
-
100-500 V
-
MPPT Number:
-
1-3
-
Topology:
-
Transformerless
-
Self-consumption (night):
-
<1 W
-
Operating temperature range:
-
-25 ~ +60°C
-
Protection Degree:
-
Ip66
-
Cooling concept:
-
Natural convection
-
Communication:
-
RS485, Optional: Wi-Fi, GPRS
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
99.9%
-
Place of Origin:
-
China
-
Brand Name:
-
Solis
-
Model Number:
-
Solis Inverter 0.7-10KW1-ON
-
Input Voltage:
-
100-500V
-
Output Voltage:
-
1/N/PE, 220 V / 230 V
-
Output Current:
-
10-50A
-
Output Frequency:
-
50/60Hz
-
Size:
-
333*579*253 mm
-
Certificate:
-
CE/IEC
-
Warranty:
-
10 Years
-
Weight:
-
20 kg
-
Product name:
-
Solis On Grid Solar Inverter
-
PV Input Power:
-
0.7-10KW
-
MPPT Voltage Range:
-
100-500 V
-
MPPT Number:
-
1-3
-
Topology:
-
Transformerless
-
Self-consumption (night):
-
<1 W
-
Operating temperature range:
-
-25 ~ +60°C
-
Protection Degree:
-
Ip66
-
Cooling concept:
-
Natural convection
-
Communication:
-
RS485, Optional: Wi-Fi, GPRS
Product Description
|
Model Name
|
700-4G
|
1000-4G
|
1500-4G
|
2000-4G
|
2500-4G
|
3000-4G
|
3600-4G
|
|||||||
|
Input DC
|
|
|
|
|
|
|
|
|||||||
|
Recommended max. PV power
|
0.9kW
|
1.2kW
|
1.8kW
|
2.3kW
|
3kW
|
3.5kW
|
4kW
|
|||||||
|
Max. input voltage
|
600V
|
|
|
|
|
|
|
|||||||
|
Rated voltage
|
200V
|
|
|
330V
|
|
|
|
|||||||
|
Start-up voltage
|
60V
|
|
|
90V
|
|
|
|
|||||||
|
MPPT voltage range
|
50-500V
|
|
|
80-500V
|
|
|
|
|||||||
|
Max. input current
|
11A
|
|
|
|
|
|
19A
|
|||||||
|
Max. short circuit current
|
17.2A
|
|
|
|
|
|
30A
|
|||||||
|
MPPT number/Max. input strings number
|
1/1
|
|
|
|
|
|
1/2
|
|||||||
|
Output AC
|
|
|
|
|
|
|
|
|||||||
|
Rated output power
|
0.7kW
|
1kW
|
1.5kW
|
2kW
|
2.5kW
|
3kW
|
3.6kW
|
|||||||
|
Max. apparent output power
|
0.8kVA
|
1.1kVA
|
1.7kVA
|
2.2kVA
|
2.8kVA
|
3.3kVA
|
3.6kVA
|
|||||||
|
Max. output power
|
0.8kW
|
1.1kW
|
1.7kW
|
2.2kW
|
2.8kW
|
3.3kW
|
3.6kW
|
|||||||
|
Rated grid voltage
|
1/N/PE, 220/230V
|
|
|
|
|
|
|
|||||||
|
Rated grid frequency
|
50/60Hz
|
|
|
|
|
|
|
|||||||
|
Rated grid output current
|
3.2A/3.0A
|
4.5A/4.3A
|
6.8A/6.5A
|
9.1A/8.7A
|
11.4A/10.9A
|
13.6A/13A
|
16A
|
|||||||
|
Max. output current
|
4.4A
|
5.2A
|
8.1A
|
10.5A
|
13.3A
|
15.7A
|
16A
|
|||||||
|
Power Factor
|
>0.99 (0.8 leading - 0.8 lagging)
|
|
|
|
|
|
|
|||||||
|
THDi
|
<3%
|
|
|
|
|
|
|
|||||||
|
Efficiency
|
|
|
|
|
|
|
|
|||||||
|
Max. efficiency
|
97.2%
|
|
|
|
97.5%
|
|
|
|||||||
|
EU efficiency
|
96.5%
|
|
|
|
96.8%
|
|
|
|||||||
|
Protection
|
|
|
|
|
|
|
|
|||||||
|
DC reverse-polarity protection
|
Yes
|
|
|
|
|
|
|
|||||||
|
Short circuit protection
|
Yes
|
|
|
|
|
|
|
|||||||
|
Output over current protection
|
Yes
|
|
|
|
|
|
|
|||||||
|
Surge protection
|
Yes
|
|
|
|
|
|
|
|||||||
|
Grid monitoring
|
Yes
|
|
|
|
|
|
|
|||||||
|
Anti-islanding protection
|
Yes
|
|
|
|
|
|
|
|||||||
|
Temperature protection
|
Yes
|
|
|
|
|
|
|
|||||||
|
Integrated DC switch
|
Optional
|
|
|
|
|
|
|
|||||||
|
General Data
|
|
|
|
|
|
|
|
|||||||
|
Dimensions (W*H*D)
|
310*373*160 mm
|
|
|
|
|
|
|
|||||||
|
Weight
|
7.4kg
|
|
|
|
7.7kg
|
|
|
|||||||
|
Topology
|
Transformerless
|
|
|
|
|
|
|
|||||||
|
Self consumption
|
<1W (night)
|
|
|
|
|
|
|
|||||||
|
Operating ambient temperature range
|
-25 ~ +60°C
|
|
|
|
|
|
|
|||||||
|
Relative humidity
|
0-100%
|
|
|
|
|
|
|
|||||||
|
Ingress protection
|
IP65
|
|
|
|
|
|
|
|||||||
|
Cooling concept
|
Natural convection
|
|
|
|
|
|
|
|||||||
|
Max. operation altitude
|
4000m
|
|
|
|
|
|
|
|||||||
|
Grid connection standard
|
VDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, RD 1699, UNE 206006, UNE 206007-1,
IEC 61727
|
|
|
|
|
|
|
|||||||
|
Safety/EMC standard
|
IEC 62109-1/-2, IEC 62116, EN 61000-6-1/-2/-3/-4
|
|
|
|
|
|
|
|||||||
|
Features
|
|
|
|
|
|
|
|
|||||||
|
DC connection
|
MC4 connector
|
|
|
|
|
|
|
|||||||
|
AC connection
|
Quick connection plug
|
|
|
|
|
|
|
|||||||
|
Display
|
LCD
|
|
|
|
|
|
|
|||||||
|
Communication
|
RS485, Optional: Wi-Fi, GPRS
|
|
|
|
|
|
|
|||||||
|
Models
|
2.5K
|
3K
|
3.6K
|
4K
|
4.6K
|
5K
|
6K
|
|||||||
|
Input DC
|
|
|
|
|
|
|
|
|||||||
|
Recommended max. PV power
|
3kW
|
3.5kW
|
4.2kW
|
4.6kW
|
5.3kW
|
5.8kW
|
6.6kW
|
|||||||
|
Max. input voltage
|
550V
|
600V
|
|
|
|
|
|
|||||||
|
Rated voltage
|
250V
|
330V
|
|
|
|
|
|
|||||||
|
Start-up voltage
|
60V
|
120V
|
|
|
|
|
|
|||||||
|
MPPT voltage range
|
50-450V
|
90-520V
|
|
|
|
|
|
|||||||
|
Max. input current
|
11A/11A
|
|
|
|
|
|
|
|||||||
|
Max. short circuit current
|
17.2A/17.2A
|
|
|
|
|
|
|
|||||||
|
MPPT number/Max. input strings number
|
2/2
|
|
|
|
|
|
|
|||||||
|
Output AC
|
|
|
|
|
|
|
|
|||||||
|
Rated output power
|
2.5kW
|
3kW
|
3.6kW
|
4kW
|
4.6kW
|
5kW
|
6kW
|
|||||||
|
Max. apparent output power
|
2.8kVA
|
3.3kVA
|
4kVA
|
4.4kVA
|
5kVA
|
5kVA
|
6kVA
|
|||||||
|
Max. output power
|
2.8kW
|
3.3kW
|
4kW
|
4.4kW
|
5kW
|
5kW
|
6kW
|
|||||||
|
Rated grid voltage
|
1/N/PE, 220/230V
|
|
|
|
|
|
|
|||||||
|
Rated grid frequency
|
50/60Hz
|
|
|
|
|
|
|
|||||||
|
Rated grid output current
|
11.4A/10.9A
|
13.6A/13.0A
|
16.0A/15.7A
|
18.2A/17.4A
|
20.9A/20.0A
|
22.7A/21.7A
|
27.3A
|
|||||||
|
Max. output current
|
13.3A
|
15.7A
|
16.0A
|
21.0A
|
23.8A
|
25.0A
|
27.3A
|
|||||||
|
Power Factor
|
>0.99 (0.8 leading - 0.8 lagging)
|
|
|
|
|
|
|
|||||||
|
THDi
|
<3%
|
|
|
|
|
|
|
|||||||
|
Efficiency
|
|
|
|
|
|
|
|
|||||||
|
Max. efficiency
|
97.8%
|
|
|
98.1%
|
|
|
|
|||||||
|
EU efficiency
|
97.1%
|
|
|
97.3%
|
|
|
|
|||||||
|
Protection
|
|
|
|
|
|
|
|
|||||||
|
DC reverse-polarity protection
|
Yes
|
|
|
|
|
|
|
|||||||
|
Short circuit protection
|
Yes
|
|
|
|
|
|
|
|||||||
|
Output over current protection
|
Yes
|
|
|
|
|
|
|
|||||||
|
Surge protection
|
Yes
|
|
|
|
|
|
|
|||||||
|
Grid monitoring
|
Yes
|
|
|
|
|
|
|
|||||||
|
Anti-islanding protection
|
Yes
|
|
|
|
|
|
|
|||||||
|
Temperature protection
|
Yes
|
|
|
|
|
|
|
|||||||
|
Integrated DC switch
|
Optional
|
|
|
|
|
|
|
|||||||
|
General Data
|
|
|
|
|
|
|
|
|||||||
|
Dimensions (W*H*D)
|
310*543*160 mm
|
|
|
|
|
|
|
|||||||
|
Weight
|
11.5kg
|
|
|
|
|
|
|
|||||||
|
Topology
|
Transformerless
|
|
|
|
|
|
|
|||||||
|
Self consumption
|
<1W (night)
|
|
|
|
|
|
|
|||||||
|
Operating ambient temperature range
|
-25 ~ +60°C
|
|
|
|
|
|
|
|||||||
|
Relative humidity
|
0-100%
|
|
|
|
|
|
|
|||||||
|
Ingress protection
|
IP65
|
|
|
|
|
|
|
|||||||
|
Cooling concept
|
Natural convection
|
|
|
|
|
|
|
|||||||
|
Max. operation altitude
|
4000m
|
|
|
|
|
|
|
|||||||
|
Grid connection standard
|
VDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, RD 1699, UNE 206006, UNE 206007-1,
IEC 61727
|
|
|
|
|
|
|
|||||||
|
Safety/EMC standard
|
IEC 62109-1/-2, IEC 62116, EN 61000-6-2/-3
|
|
|
|
|
|
|
|||||||
|
Features
|
|
|
|
|
|
|
|
|||||||
|
DC connection
|
MC4 connector
|
|
|
|
|
|
|
|||||||
|
AC connection
|
Quick connection plug
|
|
|
|
|
|
|
|||||||
|
Display
|
LCD
|
|
|
|
|
|
|
|||||||
|
Communication
|
RS485, Optional: Wi-Fi, GPRS
|
|
|
|
|
|
|
|||||||
|
Models
|
7K
|
8K
|
9K
|
10K
|
||||
|
Input DC
|
|
|
|
|
||||
|
Recommended max. PV power
|
10.5 kW
|
12 kW
|
13.5 kW
|
15 kW
|
||||
|
Max. input voltage
|
600 V
|
|
|
|
||||
|
Rated voltage
|
330 V
|
|
|
|
||||
|
Start-up voltage
|
120 V
|
|
|
|
||||
|
MPPT voltage range
|
100-500 V
|
|
|
|
||||
|
Max. input current
|
14 A / 14 A / 14 A
|
|
|
|
||||
|
Max. short circuit current
|
22 A / 22 A / 22 A
|
|
|
|
||||
|
MPPT number/Max. input strings number
|
3 / 3
|
|
|
|
||||
|
Output AC
|
|
|
|
|
||||
|
Rated output power
|
7 kW
|
8 kW
|
9 kW
|
10 kW
|
||||
|
Max. apparent output power
|
7.7 kVA
|
8.8 kVA
|
9.9 kVA
|
10 kVA
|
||||
|
Max. output power
|
7.7 kW
|
8.8 kW
|
9.9 kW
|
10 kW
|
||||
|
Rated grid voltage
|
1/N/PE, 220 V / 230 V
|
|
|
|
||||
|
Rated grid frequency
|
50 Hz / 60 Hz
|
|
|
|
||||
|
Rated grid output current
|
31.8 A / 30.4 A
|
36.4 A / 34.8 A
|
40.9 A / 39.1 A
|
45.5 A / 43.5 A
|
||||
|
Max. output current
|
33.7 A
|
36.6 A
|
41.3 A
|
45.9 A
|
||||
|
Power factor
|
>0.99 (0.8 leading - 0.8 lagging)
|
|
|
|
||||
|
THDi
|
<3%
|
|
|
|
||||
|
Efficiency
|
|
|
|
|
||||
|
Max. efficiency
|
98.0%
|
|
|
|
||||
|
EU efficiency
|
97.1%
|
|
|
|
||||
|
Protection
|
|
|
|
|
||||
|
DC reverse-polarity protection
|
Yes
|
|
|
|
||||
|
Short circuit protection
|
Yes
|
|
|
|
||||
|
Output over current protection
|
Yes
|
|
|
|
||||
|
Surge protection
|
Yes
|
|
|
|
||||
|
Grid monitoring
|
Yes
|
|
|
|
||||
|
Anti-islanding protection
|
Yes
|
|
|
|
||||
|
Temperature protection
|
Yes
|
|
|
|
||||
|
Integrated AFCI (DC arc-fault circuit protection)
|
Yes
|
|
|
|
||||
|
Integrated DC switch
|
Optional
|
|
|
|
||||
|
General Data
|
|
|
|
|
||||
|
Dimensions (W*H*D)
|
333*579*253 mm
|
|
|
|
||||
|
Weight
|
18.5 kg
|
|
|
|
||||
|
Topology
|
Transformerless
|
|
|
|
||||
|
Self-consumption (night)
|
<1 W
|
|
|
|
||||
|
Operating ambient temperature range
|
-25 ~ +60°C
|
|
|
|
||||
|
Relative humidity
|
0-100%
|
|
|
|
||||
|
Ingress protection
|
IP66
|
|
|
|
||||
|
Cooling concept
|
Natural convection
|
|
|
|
||||
|
Max. operation altitude
|
4000 m
|
|
|
|
||||
|
Grid connection standard
|
G99, EN 50549-1, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530
|
|
|
|
||||
|
Safety/EMC standard
|
IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
|
|
|
|
||||
|
Features
|
|
|
|
|
||||
|
DC connection
|
MC4 connector
|
|
|
|
||||
|
AC connection
|
OT Terminal
|
|
|
|
||||
|
Display
|
LCD
|
|
|
|
||||
|
Communication
|
RS485, Optional: Wi-Fi, GPRS
|
|
|
|
||||
