Quick Details
-
Conductor Size:
-
24-12 AWG, 24-12 AWG
-
Color:
-
Grey, Black, other color can be customized
-
Length/Wide/Height (mm):
-
73.5/56.5/8.2
-
Connection method:
-
Screw connection
-
Material:
-
Nylon PA66
-
Rated Voltage/Current:
-
800V/6.3A
-
Cross section, solid/soft Cable:
-
0.2-4 mm2 / 0.2-4 mm2
-
Mounting Type:
-
NS 35/7.5
-
Standard:
-
IEC 60947-7-1
-
Packing Detail:
-
17.35g/pc, 50PCS/BOX,1000PCS/CTN
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WONKEDQ
-
Model Number:
-
JUK 5-HES
-
Conductor Size:
-
24-12 AWG, 24-12 AWG
-
Color:
-
Grey, Black, other color can be customized
-
Length/Wide/Height (mm):
-
73.5/56.5/8.2
-
Connection method:
-
Screw connection
-
Material:
-
Nylon PA66
-
Rated Voltage/Current:
-
800V/6.3A
-
Cross section, solid/soft Cable:
-
0.2-4 mm2 / 0.2-4 mm2
-
Mounting Type:
-
NS 35/7.5
-
Standard:
-
IEC 60947-7-1
-
Packing Detail:
-
17.35g/pc, 50PCS/BOX,1000PCS/CTN

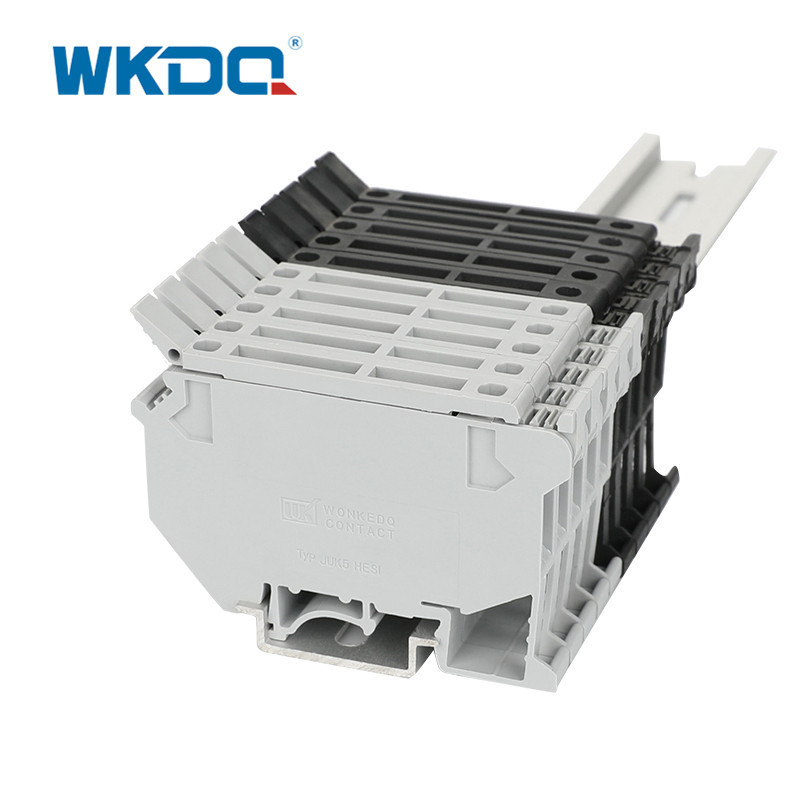

JUK 5 HESI Manufacturer Din Rail Screw Type Fuse Terminal Blocks
Features:
The internationally recognized screw connection meets the most stringent requirements and covers a wide area of application. For the most stringent requirements: the screw connection has also proven itself in the wiring of large conductor cross section
- The JUK universal screw terminal block series has the typical features which are decisive for practical applications.
- Made from engineering flame retardants nylon PA66 with brass screw metal.
- With universal foot which can be installed on Din Rail NS 35.
- It can connect two conductors with ease, even large conductor cross sections are not a problem.
- Electric potential distribution can use fixed bridges in the terminal center or insertion bridges in the clamping space.
-
Supporting applications that require fuses of different designs and with different current ratings is no problem with fuse terminal blocks from WONKEDQ
- All types of accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc.
|
Model Number |
J UK 5-HESI, Fuse terminal block |
|
Color |
Grey, Black, other color can be customized |
|
Length/Height/Wide (mm) |
73.5 / 56.5/8.2 |
|
Connection method |
Screw connection |
|
Material |
Nylon PA66 |
|
Rated Voltage /Current |
800 V /6.3A |
|
C ross section , solid/soft Cable |
0.2-4 mm² / 0.2-4 mm² |
|
Conductor Size |
24-12 AWG |
|
Mounting Type |
NS 35/7.5 |
|
Standard |
IEC 60947-7-1 |
|
LOGO |
Customized logo are supported |
|
Packing Detail |
17.35g/pc, 50PCS/BOX,1000PCS/CTN |
|
Certification |
CE/Ro HS / CQC/ISO 9001 |
