Quick Details
-
Place of Origin:
-
Beijing,China
-
Brand Name:
-
Cansec
-
Supplier Type:
-
Original manufacturer
-
size:
-
15mmx18mmx1.8mm
-
Frequency:
-
434MHz/470MHz/868MHz/915Mhz
-
Power supply:
-
1.8-3.6V
-
Tx power:
-
12dBm
-
RX sensitivity:
-
-110dBm
-
TX current:
-
40mA
-
RX current:
-
22mA
-
Standby current:
-
1uA
Quick Details
-
Chipset:
-
Ti: CC1101RGPR
-
Application:
-
iot industrial module
-
Model Number:
-
CC1101SPI
-
Place of Origin:
-
Beijing,China
-
Brand Name:
-
Cansec
-
Supplier Type:
-
Original manufacturer
-
size:
-
15mmx18mmx1.8mm
-
Frequency:
-
434MHz/470MHz/868MHz/915Mhz
-
Power supply:
-
1.8-3.6V
-
Tx power:
-
12dBm
-
RX sensitivity:
-
-110dBm
-
TX current:
-
40mA
-
RX current:
-
22mA
-
Standby current:
-
1uA
Product Description

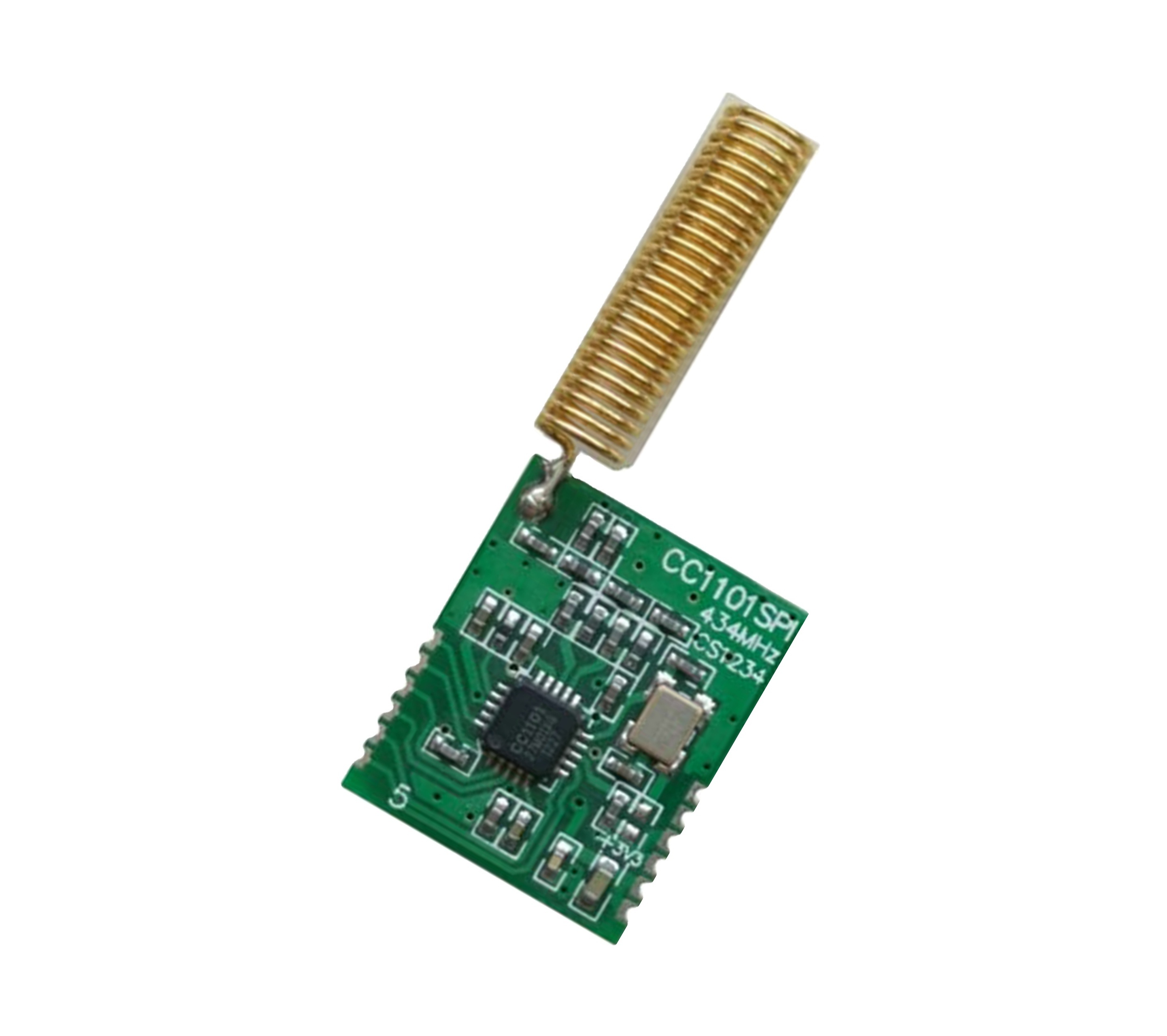

CC1101 is a low‐cost sub‐1 GHz transceiver designed for very low‐power wireless applications.
The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 434, 868, and 915 MHz, but can easily be programmed for operation at other frequencies in the 300‐348 MHz, 387‐464 MHz and 779‐928 MHz bands.
The RF transceiver is integrated with a highly configurable baseband modem. The modem supports various modulation formats and has a configurable data rate up to 600 kbps.
|
Parameter
|
|
Min
|
Typ
|
Max
|
Unit
|
|||
|
Operating Voltage
|
|
1.8
|
-
|
3.6
|
V
|
|||
|
Operating Temperature
|
|
-20
|
-
|
+70
|
℃
|
|||
|
Current Consumption
|
TX
|
-
|
40
|
-
|
mA
|
|||
|
|
RX
|
-
|
22
|
-
|
mA
|
|||
|
|
Sleep
|
-
|
-
|
1
|
μA
|
|||
|
TX Power
|
|
-
|
-
|
12
|
dBm
|
|||
|
Distance
|
|
200
|
-
|
105
|
m
|
|||
