Quick Details
-
Brand Name:
-
LongTime
-
Model Number:
-
LT-DR33
-
Surface Treatment:
-
smooth
-
Product name:
-
Fiberglass duct Rodder
-
Material:
-
Fibreglass Reinforced Plastic, resin
-
Color:
-
Black\gray\white\yellow\red\green
-
Length:
-
10m-500m (OEM)
-
Diameter:
-
4.5-16mm
-
Packing:
-
Carton, pallet
-
Frame:
-
Galvanized, hot painted
-
Customization:
-
Accepted
-
Advantage:
-
Factory direct supply, good price
-
Feature:
-
Good flexibility, high strength
Quick Details
-
Application:
-
Cable pulling, cable laying
-
Technique:
-
pultruded
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
LongTime
-
Model Number:
-
LT-DR33
-
Surface Treatment:
-
smooth
-
Product name:
-
Fiberglass duct Rodder
-
Material:
-
Fibreglass Reinforced Plastic, resin
-
Color:
-
Black\gray\white\yellow\red\green
-
Length:
-
10m-500m (OEM)
-
Diameter:
-
4.5-16mm
-
Packing:
-
Carton, pallet
-
Frame:
-
Galvanized, hot painted
-
Customization:
-
Accepted
-
Advantage:
-
Factory direct supply, good price
-
Feature:
-
Good flexibility, high strength

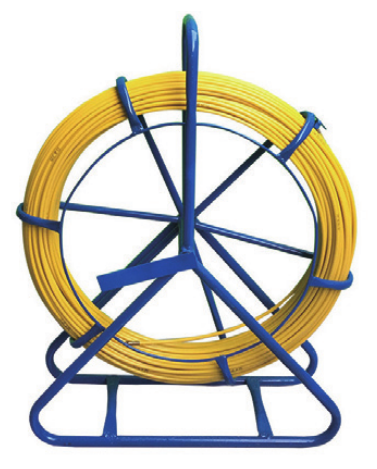

6mm 100m Wire Cable Puller, Fiberglass FRP GRP Cable Duct Push Pull Rodder for Underground Fiber Optical Cable Installation
Duct rodder, also called fiberglass duct rodder, is a powerful auxiliary tool used for rope traction in the pipe. Smooth and
flexible surface of the duct rodder can easily make the rope or cable pass through the narrow channel. Glass fiber reinforced plastic wire threading appliance has the advantages of saving time, saving effort and improving efficiency. It is selected as the special tool for pulling cables and optical cables in many fields such as telecommunications, power industry and construction. It also can measure the length of the pipeline, pipe cleaning, acceptance of pipeline.
|
|
Rod Diameter (mm)
|
4mm-18mm
|
|
|
Rod Length (m)
|
10m-500m (oem)
|
|
|
Frame Spec(mm)
|
1300x450x1330,1200x420x1220,980x350x1000,
680x240x700, etc |
|
|
Wheel Diameter(mm)
|
300mm
|
|
|
Wall thickness of Metal Frame
|
2.2mm
|
|
|
Color
|
blue, yellow, red, white etc
|
|
Material
|
Rod Inner
|
Extruded by fiber glass and high strength resin at high
temperature |
|
|
Rod Outer
|
High Density polyethylene coating
|
|
|
Iron Frame
|
Steel with high temperature sprayed plastic or Spray coating
|
|
|
Wheel
|
rubber
|
|
|
Brake
|
Yes
|
|
|
Drawing head
|
copper
|
|
|
Density
|
55g/m
|
|
|
Working temperature
|
-40°C to +80°C
|
|
|
Breaking tension
|
100kg
|
|
|
Bending Radius
|
295mm
|
|
|
Technology
|
Pultrusion
|
|
|
Inside
|
plastic woven strip wind around the frame
|
|
|
Outside
|
carton
|
Components
Duct rodder frame, used to place, push and draw back the fiberglass rod, commonly is composed of eight components: fiberglass rod, copper head, rod guide, rod grapple, grip, steel frame, Brake, Wheel. The welded frame, made of high quality steel, is strong enough to withstand the weight of the fiberglass rod. With powder coated or galvanized, the frame is rust resistant and corrosion resistant. At the same time, duct rodderwith different color available can suit customers' various requirements. With the help of frame, the duct rodder is more easier to move at the job site. In addition, duct rodder with hand operated brake and rubber wheel also available. Generally, the medium sized duct rodder will be equipped with polyurethane wheels and large sized duct rodder will be equipped with rubber wheel.
Quality Assurance
1. The rod is made of resin and fiberglass. There are big differences made by good and inferior material. The rod made of bad material is broken easily, it cannot be used for long time, and even it gets cracked on the cage before use. We only produce the goods with good material.
2. The cage we made with thickened metal. To keep the frame wheel moving lightly and easily, even the smallest cage was fixed good bearing. Brake handle is designed with chromed handle and Bakelite fitting.
3. The rubber wheel is big and strong.
4.Package: By plastic woven, carton, crates, or customized.
5. Professional export team, many years’ exports experiences ensures you with best services.
6.Sold to more than 60 countries, got good reputation. When you inquire, please advise the rod diameter, length and quantity.
Application
FRP duct rodder is an ideal tool for underground jobs such as pulling cables and lines through conduits, tubes, pipes or ducts. For its high tensile strength, wear-resistant surface and elastic body, it is widely used in the fields of telecommunication, electric power, water conservancy, etc.
Fiberglass duct rodders are well wrapped with plastic belts, packed with strong carton, or packed with wooden case which is suitable for long distance transport.
Our Service
1.High Quality: Excellent quality is our first pursue, we have strict quality control by our QC team.
2.Big Capacity: Constantly introducing new equipment to meet clients production requirement and market change.
3.Professional Team: Professional development team, purchase team, production team, inspection team, sale team, to provide the best service for our customers.
4.High Efficiency: 24 hours online service (Email, Trademanager, WhatsApp, Wechat) to solve all your questions.
5.Customization: Size & shape could be made as customer requirement.
6.Payment: Flexible payment ways, making the payment more convenient and easy.
