Quick Details
-
Brand Name:
-
V-RIVER
-
Model Number:
-
VRPWCS64
-
Product name:
-

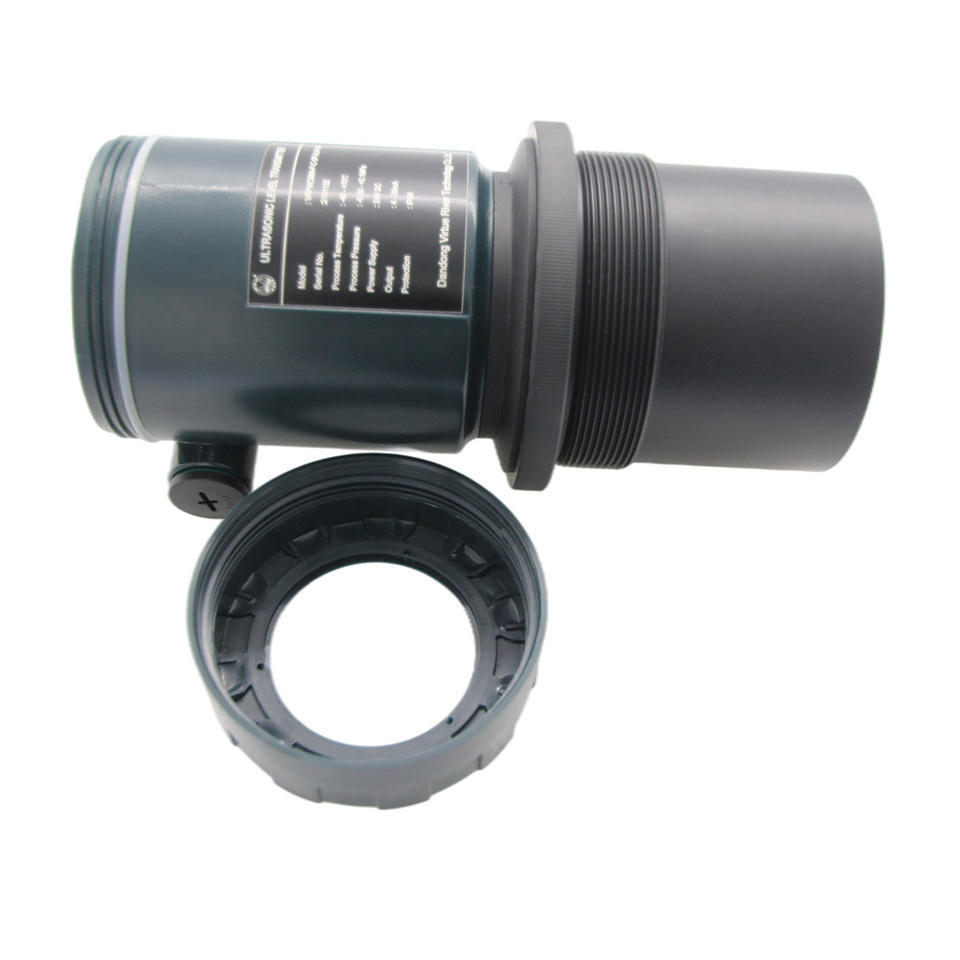

Ultrasonic Level Sensor
-
Application:
-
liquid level measurement,especially for water treatment industry
-
Output signal:
-
4-20mA
-
Measuring Range:
-
20m
-
Resolution:
-
1mm
-
Repeatability:
-
±3mm
-
Process connection:
-
Thread M95*2
-
Process pressure:
-
<0.1MPa
-
Process temperature:
-
-40 - +70℃
-
Accuracy:
-
±0.4% for full range
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 year
-
Place of Origin:
-
Beijing,China
-
Brand Name:
-
V-RIVER
-
Model Number:
-
VRPWCS64
-
Product name:
-
Ultrasonic Level Sensor
-
Application:
-
liquid level measurement,especially for water treatment industry
-
Output signal:
-
4-20mA
-
Measuring Range:
-
20m
-
Resolution:
-
1mm
-
Repeatability:
-
±3mm
-
Process connection:
-
Thread M95*2
-
Process pressure:
-
<0.1MPa
-
Process temperature:
-
-40 - +70℃
-
Accuracy:
-
±0.4% for full range
Specifications
|
Model number
|
VRPWCS64
|
|
|
|
|||
|
Features
|
Economic, Plastic housing ,Signals curve can be displayed and basic setting for important parameters can be performed
|
|
|
|
|||
|
Typical application
|
For liquid level measurement in industrial fields, especially for water treatment industry
|
|
|
|
|||
|
Measuring range
|
PA66+GF30/ Open/ (-40 ~ +70)℃/ IP65/ Liquid 0.6m-20m
PA66+GF30/ Sealed/ (-40 ~ +70)℃/ IP66/ Liquid 0.6m-15m
|
|
|
|
|||
|
Resolution
|
1mm
|
|
|
|
|||
|
Repeatability
|
±3mm
|
|
|
|
|||
|
Process connection
|
Thread M95×2
|
|
|
|
|||
|
Process temperature
|
-40 - +70℃
|
|
|
|
|||
|
Process pressure
|
<0.1MPa
|
|
|
|
|||
|
Accuracy
|
±0.4% for full range
|
|
|
|
|||
|
Transducer
|
PA66+GF30
|
|
|
|
|||
|
Ultrasonic frequency
|
28kHz
|
|
|
|
|||
|
Enclosure protection
|
IP66
|
|
|
|
|||
|
Signal output
|
4-20mA, 24V DC (2-wire/ 4-wire); 220V AC (4-wire)
|
|
|
|
|||
