Quick Details
-
Max Discharge current:
-
20 A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TYCOTIU
-
Model Number:
-
TY TNC
-
Nominal Discharge current:
-
10 A
-
Item Name:
-
spd for coaxial
-
Condition:
-
New
-
Material:
-
Aluminum Alloy
-
Protection class:
-
SPD classification according to IEC61643-11 Type 2
-
Warranty:
-
5 years
-
Delivery time:
-
10-15 days
-
Degree of protection:
-
IP20
-
Certificate:
-
TUV/SEMKO/CB/CE/ROHS/ISO9001 approved standard
-
Operating temperature range:
-
-40℃-80℃
-
Imax:
-
180v dc
Quick Details
-
Type:
-
Singal protection
-
Number of Pole:
-
1
-
Rated Voltage:
-
180
-
Max Discharge current:
-
20 A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TYCOTIU
-
Model Number:
-
TY TNC
-
Nominal Discharge current:
-
10 A
-
Item Name:
-
spd for coaxial
-
Condition:
-
New
-
Material:
-
Aluminum Alloy
-
Protection class:
-
SPD classification according to IEC61643-11 Type 2
-
Warranty:
-
5 years
-
Delivery time:
-
10-15 days
-
Degree of protection:
-
IP20
-
Certificate:
-
TUV/SEMKO/CB/CE/ROHS/ISO9001 approved standard
-
Operating temperature range:
-
-40℃-80℃
-
Imax:
-
180v dc
You are here: Home >> DC Power Surge Protection >> Type 2 PV Surge Arrester

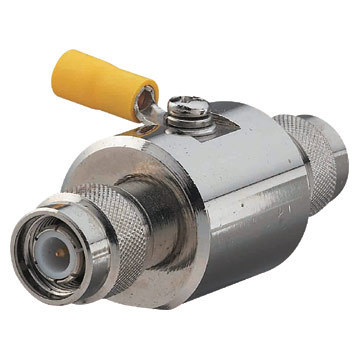

TNC antenna spd lightning protection cable signal Coaxial surge protector rf surge arrestor
<Lightning Surge Arrester/Surge Protective Device/PV Surge Arrester>
Features
- Low residual voltage and quick response
- High current capacity,high safety and stability perfomance
- Multifunction connection for conductor and busbars
- Widely applicable to the overvoltage protection of all kinds of D,C grade in DC solar system.And protect against lightning surge voltages in solar system
Technology characteristic
Product characteristics
| Specification | TY TNC |
| Item name |
coaxial Surge Arrester
|
| SPD dassification according to IEC61643-11 | / |
| MAX.Continuous operation a.c voltage | 130v |
| MAX.Continuous operation d.c voltage | 180V |
| c2 Norminal discharge current (8/20µs) line-shield In | 10KA |
|
Response time tA |
≤100ns |
| connection inputoutput | F socket |
| Degree of protection | IP20 |
| Payment term | 30% deposit in advance,70% before shipment,100% T/T in advance |
| Certificate | TUV/SEMKO/CB/CE/ROHS/ISO9001 approved standard |
| Logo | Customized logo with Decal/ Frosted/ Print are available as request |
|
Design ability |
We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) |
TYCOTIU owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. TYCOTIU team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.
