Quick Details
-
Lamp Body Material:
-
PMMA fiber optic
-
Product Weight（kg）:
-
1.75
-
Input Voltage(V):
-
AC/DC /12V/24V/AC85~265V
-
CRI (Ra>):
-
85
-
Working Temperature(℃):
-
-35 - 75
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haijia
-
Model Number:
-
Car home fiber optic star ceiling kit
-
Name:
-
Car home fiber optic star ceiling kit
-
Length of the fiber:
-
2/3/4/5m
-
Fiber diameter:
-
0.75mm/1mm
-
Material:
-
PMMA
-
Function:
-
twinkle
-
Power:
-
18W
-
Voltage:
-
DC12V / AC85~265V
-
LED Color:
-
RGBW
-
Light source:
-
led
-
Application:
-
car /home
Quick Details
-
Color Temperature(CCT):
-
6000K (Daylight Alert)
-
Lamp Luminous Efficiency(lm/w):
-
110
-
Warranty(Year):
-
4-Year
-
Lamp Body Material:
-
PMMA fiber optic
-
Product Weight（kg）:
-
1.75
-
Input Voltage(V):
-
AC/DC /12V/24V/AC85~265V
-
CRI (Ra>):
-
85
-
Working Temperature(℃):
-
-35 - 75
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haijia
-
Model Number:
-
Car home fiber optic star ceiling kit
-
Name:
-
Car home fiber optic star ceiling kit
-
Length of the fiber:
-
2/3/4/5m
-
Fiber diameter:
-
0.75mm/1mm
-
Material:
-
PMMA
-
Function:
-
twinkle
-
Power:
-
18W
-
Voltage:
-
DC12V / AC85~265V
-
LED Color:
-
RGBW
-
Light source:
-
led
-
Application:
-
car /home
Car home fiber optic star ceiling kit
We are factory , we make customized led fiber optic star light kit for car roof or ceiling , such as the fiber strands can be any length you want , 0.5 - 15m , or mixed length (such as 1m - 100pcs , 2m - 50pcs , 3m -200pcs ....it id up to you ) . The fiber size (diameter ) can be 0.5mm , 0.75mm , 1mm , 1.5mm ...... to 3mm , or mixed size (such as 0.5mm + 0.75mm + 1mm + 2.5mm .....) The effect can be twinkle , shooting star and mixed color . The control way can be Remote control , Phone APP control (Bluetooth /WIFI ) , Audio Control (music control ), DMX512 control and touch panel . Any demands , pls let me know , i am sure my price will make you happy !
Technical data sheet
| Light source | 18W RGBW led wtinkle fiber optic light engine |
| Power | 18W |
| Voltage | DV12V / AC85~265V |
| LED color | RGBW and DIY mix colors |
| Control way | 28keys remote control + Music Activated + Bluetooth APP Controlled |
| Attenuation | ≤ 0.22db/m |
| Fiber Diameter | 0.75mm /1mm |
| Fiber QTY | 200 PCS |
| Effect | twinkle |
| Fiber length | 2m/3m/4m/5m |
| Plug |
Plug :AC 100-240V plug (UK Plug /Europlug /USA plug ) Acquiescence is Europlug , if you need other type of plug,pls remark on the order . |
| Warranty |
4 years |

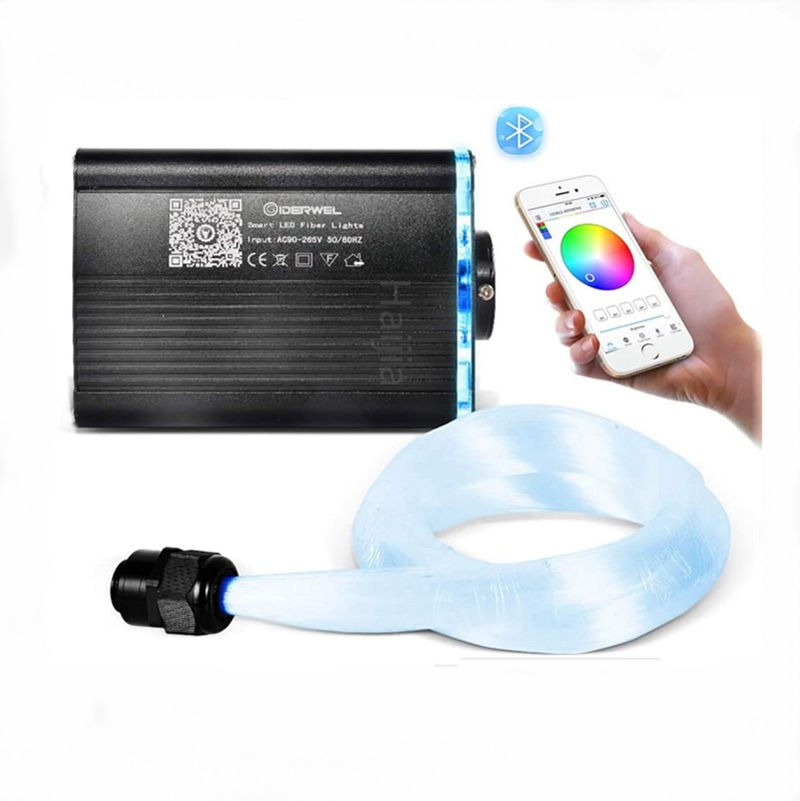

ITEM NO : 18W twinkle RGBW LED Fiber Optic illuminator
Size : 135*95*55mm
Voltage : DC12V / AC100-240V with adapter
Power : 18W
LED CHIP : RGBW
Max aperture : 21mm
Control way : Phone APP + Remote control + Music control
App can control the twinkle speed and colors .
Plug : UK PLUG , US PLUG , Europlug , DC12V plug and Cigarette lighter plug
Warranty : 4 years
Car home fiber optic star ceiling kit's connector
Make sure all the fibers in the same surface and c ut it with cuting machine and polish the end to be very smooth . Make sure all the fibers can get the lights well .
Mixed fibers 0.5/0.75/1/1.5mm =
0.5mm * 100pcs *3m
0.75mm * 200pcs *3m
1mm *100pcs *3m
1.5mm*40 pcs *3m
Car home fiber optic star ceiling kit
Photos:
Remote control :
APP Function :
Application :
For Car roof star light
For star ceiling light
For fiber pendant light
DIY mix colors twinkle fiber star light kit installation :
How to use the fiber kits to make the star ceiling ?
Process 1 : drill the holes on the ceiling according to the your design .
Process 2 : insert the fiber cables into the holes you drilled and fix the fiber cables with glue and then cut the fiber and make it 3-4mm higher than the ceiling .
How to make the twinkle star with the fiber kits ?
Answer : when you place the order , pls tell the salesman that you want twinkle star effect , he /she will offer you the twinkle fiber engines .
I want to make fiber curtain or i want to hang it on the tree,so i need it to be very straight .
Answer : we can make the straight fiber kits or straight sparkle fiber kits for you . Just let us know your application and requirements .
What is your MOQ ?
Answer : MOQ : 1 set .
Do you have in stock ?
Answer : Yes , within 100 sets can delivery in one day .
