Quick Details
-
Applicable Industries:
-
Rubber industry
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Goodday
-
Weight (KG):
-
100 kg
-
Thickness:
-
0.05-3.0mm
-
Surface:
-
Mill Finished/Grind Finished/ Mirror
-
Sample:
-
Sample Freely
-
Key word:
-
Stainless Steel belt
-
Hardness:
-
HV480
-
Tensile strength:
-
1550N/MM²
-
Keyword:
-
rotocure machine
-
Price Term:
-
CIF CFR FOB EX-WORK
-
Type:
-
630,631
Quick Details
-
Power:
-
60w
-
Warranty:
-
1 Year
-
Width or Diameter:
-
800mm
-
Applicable Industries:
-
Rubber industry
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Goodday
-
Weight (KG):
-
100 kg
-
Thickness:
-
0.05-3.0mm
-
Surface:
-
Mill Finished/Grind Finished/ Mirror
-
Sample:
-
Sample Freely
-
Key word:
-
Stainless Steel belt
-
Hardness:
-
HV480
-
Tensile strength:
-
1550N/MM²
-
Keyword:
-
rotocure machine
-
Price Term:
-
CIF CFR FOB EX-WORK
-
Type:
-
630,631
Product Description
|
Width
|
200~9000mm
|
|
Length
|
customize available
|
|
Thickness
|
1.0/1.2/1.6/1.8/2.0/2.3/2.7/3.0/3.5 mm
|
|
Material
|
Martensitic Stainless steel/ GD1600
|
|
Tensile strength, Mpa
|
1600
|
|
Yield strength, Mpa
|
1550
|
|
Fatigue strength, N/m㎡
|
±630
|
|
Hardness, HV
|
480
|
|
Elongation
|
4
|
|
Welding factor
|
0.85
|
Steel belt for Rubber & Plastic Industry
Our material GD1600 applied to the rotating vulcanising press is a kind of low-carbon martenitic steel. The typical characteristics of the material is as below:
High static strength
High fatigue strength
High corrosion resistance
Excellent flatness and straightness
Can withstand dynamic stress for a long time
Good maintainability
Perfect flatness and thickness deviation at the cross welding seam area

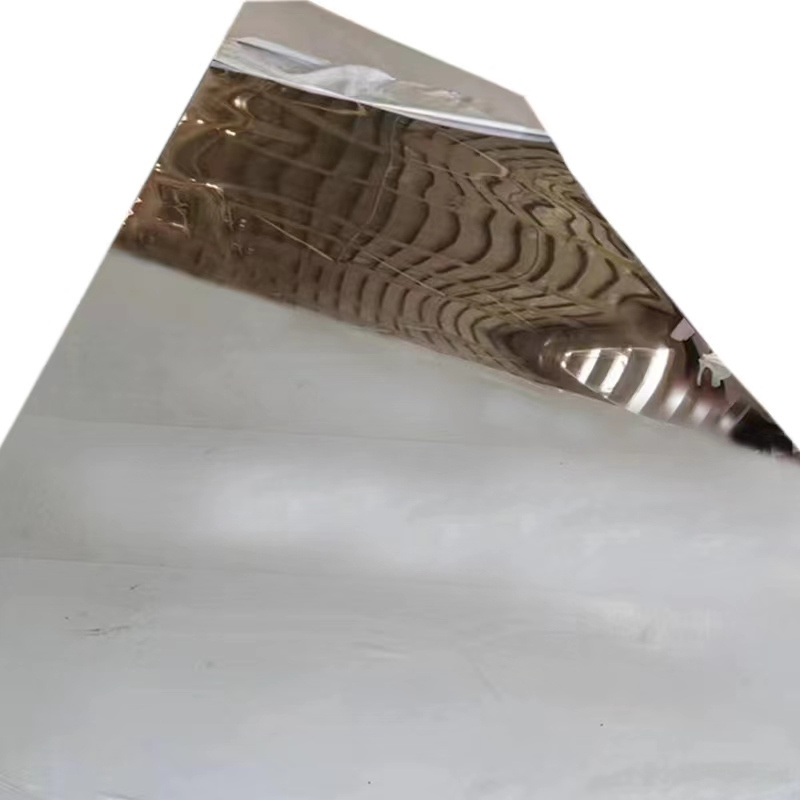

Stainless steel belt with mirror suface in rubber industry is ususally used to produce exemely thin products with a thickness of less than 0.5mm, which is used to improve the brightness of the product surface and reduce color difference. Mirror surface steel belt has high requirements for flatness deviation and thickness deviation of the whole steel belt. We can customize production according to different products.
Specification
|
Thickness
|
1.0mm
|
|
|
1.2mm
|
|
|
1.6mm
|
|
|
1.8mm
|
|
|
2.0mm
|
|
|
2.2mm
|
|
|
2.5mm
|
|
width
|
200~1800mm
|
|
Length
|
customized
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
