Quick Details
-
Voltage:
-
380 V or customized
-
Power:
-
25KW-120KW
-
Dimension(L*W*H):
-
Customer Request
-
Warranty:
-
1 Year
-
Coating method:
-
UV base and top painting+Vacuum metallizing
-
Application:
-
Cosmetic packing industry, Auto parts industry, Perfume industry,etc.
-
Coating Color:
-
Silver /Golden/red/blue,etc.
-
Coating raw material:
-
UV base lacquer, UV top lacquer, UV color ink.
-
Coating Substrate:
-
Glass,ABS,PP,PS,PC,Aluminum
-
Painting booth:
-
2 or 3 painting booth
-
IR oven booth:
-
2 or 3 sets (customized)
-
UV curing booth:
-
1 or 2 sets(customized)
-
Spindle rotor distance:
-
38.1mm or 50.8mm
-
Curing method:
-
UV lamp curing
-
Weight:
-
5TONS--15TONS
-
Certification:
-
CE &TUV& ISO9001:2015
Quick Details
-
Machine Type:
-
vacuum coating
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CICEL
-
Voltage:
-
380 V or customized
-
Power:
-
25KW-120KW
-
Dimension(L*W*H):
-
Customer Request
-
Warranty:
-
1 Year
-
Coating method:
-
UV base and top painting+Vacuum metallizing
-
Application:
-
Cosmetic packing industry, Auto parts industry, Perfume industry,etc.
-
Coating Color:
-
Silver /Golden/red/blue,etc.
-
Coating raw material:
-
UV base lacquer, UV top lacquer, UV color ink.
-
Coating Substrate:
-
Glass,ABS,PP,PS,PC,Aluminum
-
Painting booth:
-
2 or 3 painting booth
-
IR oven booth:
-
2 or 3 sets (customized)
-
UV curing booth:
-
1 or 2 sets(customized)
-
Spindle rotor distance:
-
38.1mm or 50.8mm
-
Curing method:
-
UV lamp curing
-
Weight:
-
5TONS--15TONS
-
Certification:
-
CE &TUV& ISO9001:2015

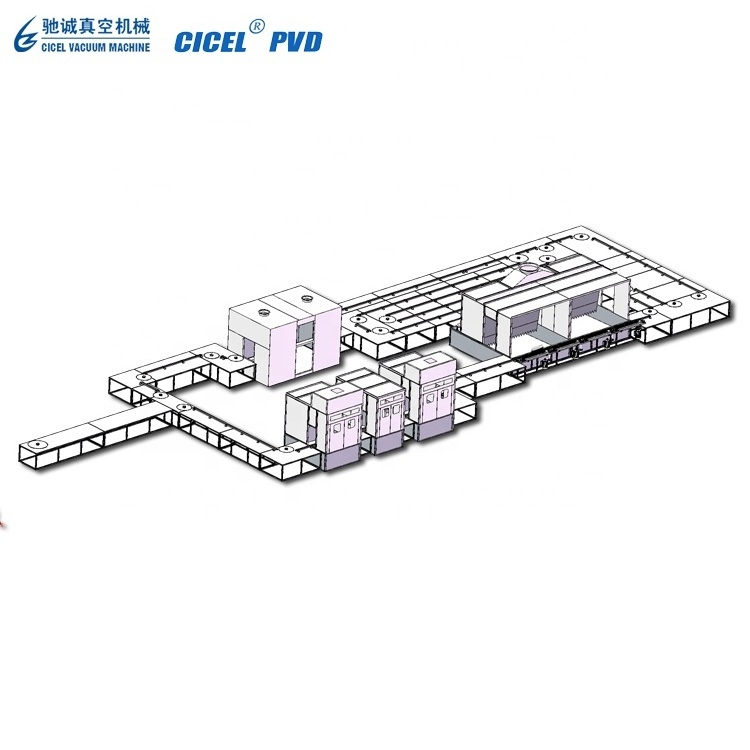

Cicel Automatic uv spraying curing line & Vacuum Metallizing Plant/jewelry vacuum coating Machine
|
configuration Model |
CCZK-UV12M |
CCZK-UV50A |
CCZK-UV100A |
CCZK-UV150A |
Customized Size is available |
|
|
Length of line |
12m |
50m |
100m |
150m |
Customized |
|
|
Electrostatic cleaning booth |
4 in 1 electrostatic cleaning gun system. |
Customized |
||||
|
IR oven booth |
9kw |
15KW |
36kw |
96 |
Customized |
|
|
UV curing booth |
20sets |
26sets |
36sets |
52sets |
Customized |
|
|
Spindles rotors |
5KW |
5KW |
10KW |
15KW |
Customized |
|
|
Control system |
PLC+HMI Full automatic + Remote control system ( optional) |
Customized |
||||
|
painting gun |
2sets |
8sets |
14sets |
22sets |
Customized |
|
|
Total power |
30.6KW |
37.5KW |
58.5KW |
96KW |
Customized |
|
|
Coating production |
0--20m/min adjustable |
Customized |
||||
|
Delivery container size |
1set 40GP |
1set 40GP |
2sets 40GP |
3sets 40GP |
Customized |
|
|
Machine installing time |
7days (1engineer) |
15days (2engineers) |
20days (2engineers) |
36days (3engineers) |
Customized
|
|
