Quick Details
-
Dimensions(L*W*H):
-
700*1140*1450mm
-
Weight:
-
200 KG
-
Cylinder head up and down stroke:
-
75mm
-
Glide around the cylinder stroke:
-
125mm
-
Front and rear cup oil cylinder stroke:
-
100mm
-
Plate area:
-
100 *200mm (4 '* 8')
-
Oil cup diameter:
-
60 (optional), 90mm
-
Table size:
-
200 *125mm*4
-
The fastest speed:
-
2500 Pcs / Hr
-
Pressure:
-
6 Bar
-
Air consumption:
-
56 Liter / Min
-
H.S.code:
-
8443198000
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Voltage:
-
110V / 220V 50Hz
-
Dimensions(L*W*H):
-
700*1140*1450mm
-
Weight:
-
200 KG
-
Cylinder head up and down stroke:
-
75mm
-
Glide around the cylinder stroke:
-
125mm
-
Front and rear cup oil cylinder stroke:
-
100mm
-
Plate area:
-
100 *200mm (4 '* 8')
-
Oil cup diameter:
-
60 (optional), 90mm
-
Table size:
-
200 *125mm*4
-
The fastest speed:
-
2500 Pcs / Hr
-
Pressure:
-
6 Bar
-
Air consumption:
-
56 Liter / Min
-
H.S.code:
-
8443198000
Product Information

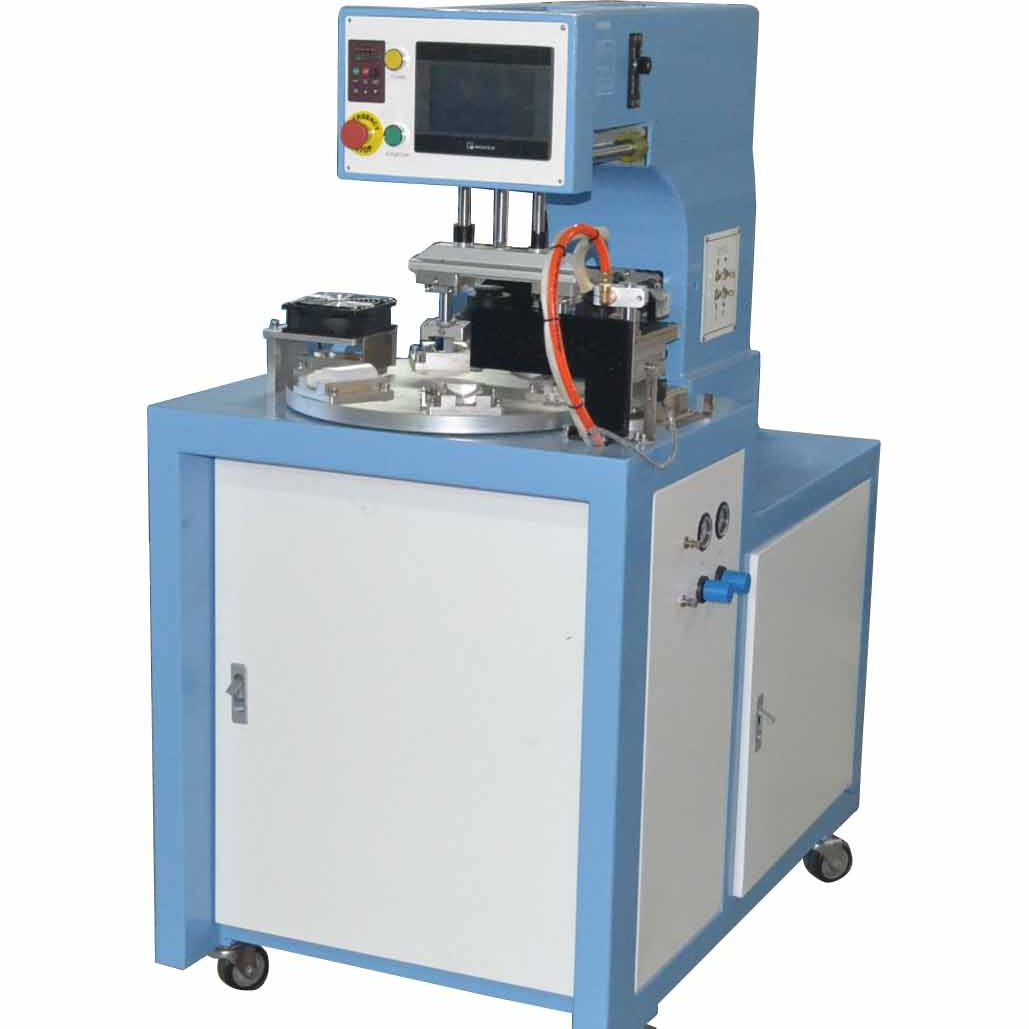

PLC rotary Single Color 4 Station Pad Printing Machine For Golf Tee Christmas Ball Hanger bottle pad printer
Our new 4-station rotary pad printing machine is cost-effective, can be customized for multiple stations, can also be customized for multiple colors, and can be installed with automatic unloading. It has a cam mechanism and a splitter. Printing is pneumatic or servo. And can be extended, fast and safe.
Specification
|
Model No.
|
LC-RPM104
|
LC-RPM106
|
|
Printing colors( can be customized multicolor)
|
1 color
|
1 color
|
|
Printing station
|
4Pcs
|
6Pcs
|
|
Cylinder head up and down stroke
|
75mm
|
75mm
|
|
Glide around the cylinder stroke
|
125mm
|
175mm
|
|
Front and rear cup oil cylinder stroke
|
100mm
|
150mm
|
|
Plate area
|
100 × 200mm (4 '× 8')
|
100 × 250mm (4 "× 10")
|
|
Oil cup diameter
|
60 (optional), 90mm
|
60 (optional), 90mm
|
|
Table size
|
200 × 125mm
|
250 × 125mm
|
|
The fastest speed
|
2500 Pcs / Hr
|
2500 Pcs / Hr
|
|
Power
|
110V / 220V 50Hz
|
110V / 220V 50Hz
|
|
Pressure
|
6 Bar
|
6 Bar
|
|
Air consumption
|
56 Liter / Min
|
56 Liter / Min
|
Machine Structure
|
Main components
|
Advantage
|
|
PLC operation system
|
Easy to operate、 stable and accurate operation、
CE certification
|
|
Fixture
|
*
Can be customized according to the size of the customer's product pattern
Free Fittings ︰ 1.one pcs pad steel plate 2.one pcs silicone rubber pad
|
|
Rubber pad
|
* Can be customized according to the size of the customer's product pattern
Free Fittings ︰ 1.one pcs pad steel plate 2.one pcs silicone rubber pad
|
|
pad steel plate
|
|
|
Sealed oil cup
|
Environmentally friendly, it saves 60% ink and 90% thinner
|
|
Tungsten steel ring
|
The hardness is HCR63, which has high wear resistance and can be rubbed nearly
300 million times.
|
|
Heating pipe
|
One for dusting and one for drying ink
|
|
station
|
4 station：greatly improve productivity and save labor, can increase or decrease the station according to customer's request.
|
