JD78-3 Yujiaxing 2023 New Making Disposable Food Containers/boxes/plates/bowls/trays Plastic Thermoforming Machine
JD78-3 Yujiaxing 2023 New Making Disposable Food Containers/boxes/plates/bowls/trays Plastic Thermoforming Machine
JD78-3 Yujiaxing 2023 New Making Disposable Food Containers/boxes/plates/bowls/trays Plastic Thermoforming Machine
JD78-3 Yujiaxing 2023 New Making Disposable Food Containers/boxes/plates/bowls/trays Plastic Thermoforming Machine
JD78-3 Yujiaxing 2023 New Making Disposable Food Containers/boxes/plates/bowls/trays Plastic Thermoforming Machine
JD78-3 Yujiaxing 2023 New Making Disposable Food Containers/boxes/plates/bowls/trays Plastic Thermoforming Machine
JD78-3 Yujiaxing 2023 New Making Disposable Food Containers/boxes/plates/bowls/trays Plastic Thermoforming Machine
JD78-3 Yujiaxing 2023 New Making Disposable Food Containers/boxes/plates/bowls/trays Plastic Thermoforming Machine

JD78-3 Yujiaxing 2023 New Making Disposable Food Containers/boxes/plates/bowls/trays Plastic Thermoforming Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $135000
≥2 Sets
US $132000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Production Speed(Cycles/min):
40
Air Pressure(MPa):
0.8 MPa
Sheet Thickness(mm):
0.2 - 1.5 mm
Heating Power (kW):
70 kW
Air Comsumption(L/min):
2100 L/min
Water Comsumption(L/min):
160 L/min
Place of Origin:
Guangdong, China
Brand Name:
Yujiaxing
Voltage:
380V 50HZ
Dimension(L*W*H):
13600*2300*2700 mm
Weight (T):
15 T
Power(KW):
70
PLC:
Delta
Color touch screen:
Delta
Panel heater:
America TRIMBLE
Air switch:
Korea LS
Column Number:
4 Column
Cutting force:
50 Ton
Marketing Type:
Hot Product 2023

Quick Details

Max.Forming Height(mm):
140 mm
Forming Width (mm):
780 mm
Forming Length (mm):
600 mm
Production Speed(Cycles/min):
40
Air Pressure(MPa):
0.8 MPa
Sheet Thickness(mm):
0.2 - 1.5 mm
Heating Power (kW):
70 kW
Air Comsumption(L/min):
2100 L/min
Water Comsumption(L/min):
160 L/min
Place of Origin:
Guangdong, China
Brand Name:
Yujiaxing
Voltage:
380V 50HZ
Dimension(L*W*H):
13600*2300*2700 mm
Weight (T):
15 T
Power(KW):
70
PLC:
Delta
Color touch screen:
Delta
Panel heater:
America TRIMBLE
Air switch:
Korea LS
Column Number:
4 Column
Cutting force:
50 Ton
Marketing Type:
Hot Product 2023
Product Overview

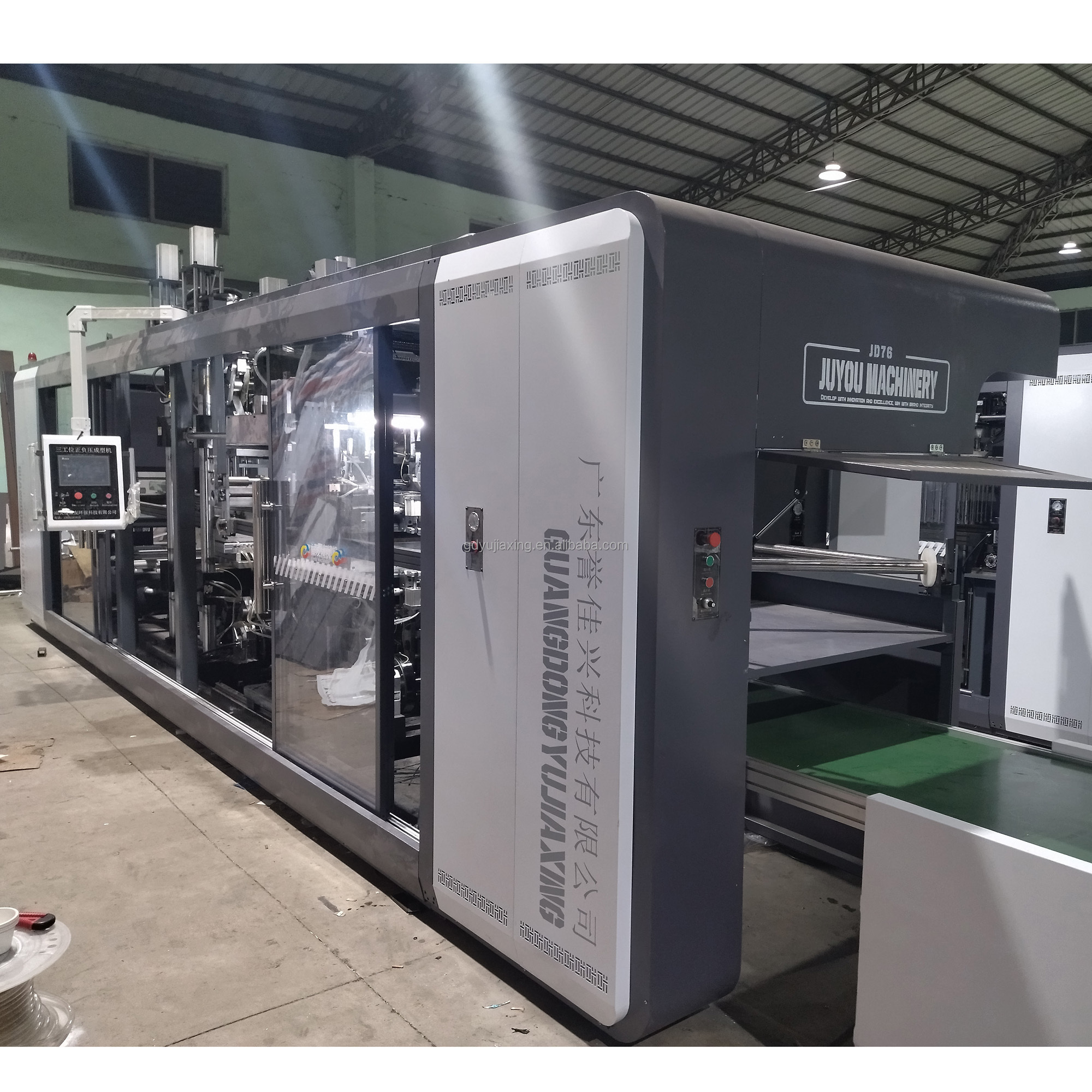

JD78-3 Three Station High Speed Plastic Thermoforming Machine Thermoformer
WhatsApp: +86 13531220031

JD780-600-3 Three Station High Speed Plastic Thermoforming Machine is suitable for producing plastic tableware, fast food box such as tray, lunch box, bowl, lid, cover, jelly cup, especially for containers with holes like fruit box. This machine have three stations: Thermoforming station →Punching & Cutting station →Product stacking station. It is mechanical, pneumatic, electrical integration. Each action program is controlled by PLC. Touch screen operation is simple and convenient.The machine has the advantages of stable operation, low noise, energy saving and environmental protection, high grade of finished products. This machine is mainly used in production of PP PS PE PET HIPS PLA thermoplastic sheet with vacuum & positive pressure forming to become different kinds of containers.
FEATURES AT A GLANCE
1. Mechanical, pneumatic, electrical integration. Each action program is controlled by PLC. Color touch screen operation is simple and convenient; 2. Pressure & Vacuum thermoforming; 3. Up & Down mould forming style; 4. Sheet servo feeding, length stepless adjusting, high speed, accuracy, stability; 5. The opening moulds and closing moulds in the stations of forming and cutting are controlled by servo motors, the plastic product is output in automatic counting; 6. Down stacking style for plastic product; 7. With memory function for product information & data 50 sets; 8. Sheet feeding caterpillar width can be synchronizated or separate electric adjusted.
Sheet sending
Sheet heating & thermoforming
Product stacking
Product Paramenters
No
Model
JD68
JD78
JD82
1
Max Forming Area
680x500 mm
780x600 mm
820x650 mm
2
Suitable Material
PET/PP/PS/PVC/PLA
PET/PP/PS/PVC/PLA
PET/PP/PS/PVC/PLA
3
Sheet Thickness
0.2~1.5 mm
0.2~1.5 mm
0.2~1.5 mm
4
Sheet Width
350~720 mm
450~800 mm
450~860 mm
5
Forming Depth
≤110 mm
≤140 mm
≤140 mm
6
Production Speed
≤40 Cycle/Min
≤40 Cycle/Min
≤40 Cycle/Min
7
Power Supply
380V/50Hz
(Three phase four wire)
380V/50Hz
(Three phase four wire)
380V/50Hz
(Three phase four wire)
8
Forming Servo
DELTA: 3.0 Kw + 3.0 Kw
DELTA: 4.5 Kw + 4.5 Kw
SIEMENS: 5.5 + 5.5 Kw
9
Stretching Servo
DELTA: 3.0 Kw
DELTA: 3.0 Kw
DELTA: 4.5 Kw
10
Cutting Servo
DELTA: 5.5 Kw + 3.0 Kw
DELTA: 7.5 Kw + 4.5 Kw
SIEMENS: 7.5 + 7.5 Kw
11
Stacking Servo
DELTA: 1.5 Kw
DELTA: 3.0 Kw
SIEMENS: 4.5 Kw
12
Sending Servo
DELTA: 3.0 Kw
DELTA: 4.5 Kw
SIEMENS: 5.5 Kw
13
Max Total Power
≤150 Kw
≤180 Kw
≤200 Kw
14
Average Power
≈ 50 Kw
≈ 70 Kw
≈ 80 Kw
15
Air Pressure
0.6~0.8 MPa
0.6~0.8 MPa
0.6~0.8 MPa
16
Air Consumption
≤2000 L/Min
≤2100 L/Min
≤2200 L/Min
17
Water Circulation
≤150 L/Min
≤160 L/Min
≤170 L/Min
18
PLC
DELTA
DELTA
SIEMENS
19
Touch Screen
DELTA 10"
DELTA 10"
SIEMENS 15"
20
Machine Weight
≈12 Ton
≈15 Ton
≈18 Ton
21
Dimension LxWxH
11150*2300*2700 mm
13600*2300*2700 mm
15000*2400*3000 mm
