- Product Details
- {{item.text}}
Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HuaYang
-
Voltage:
-
380V 50Hz 3phases
-
Dimension(L*W*H):
-
7000*1000*1300mm
-
Weight:
-
3000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Suitable material:
-
galvanized steel/color steel coil
-
Thickness of the plate:
-
0.3-0.8mm
-
Roller material:
-
45# steel
-
Diameter of active shafts:
-
70mm
-
Control system:
-
PLC control system
-
Main motor power:
-
4 kw
-
Cutting power:
-
3 kw
-
Cutting material:
-
Cr12
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
0-3m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HuaYang
-
Voltage:
-
380V 50Hz 3phases
-
Dimension(L*W*H):
-
7000*1000*1300mm
-
Weight:
-
3000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Suitable material:
-
galvanized steel/color steel coil
-
Thickness of the plate:
-
0.3-0.8mm
-
Roller material:
-
45# steel
-
Diameter of active shafts:
-
70mm
-
Control system:
-
PLC control system
-
Main motor power:
-
4 kw
-
Cutting power:
-
3 kw
-
Cutting material:
-
Cr12
PRODUCT DISPLAY

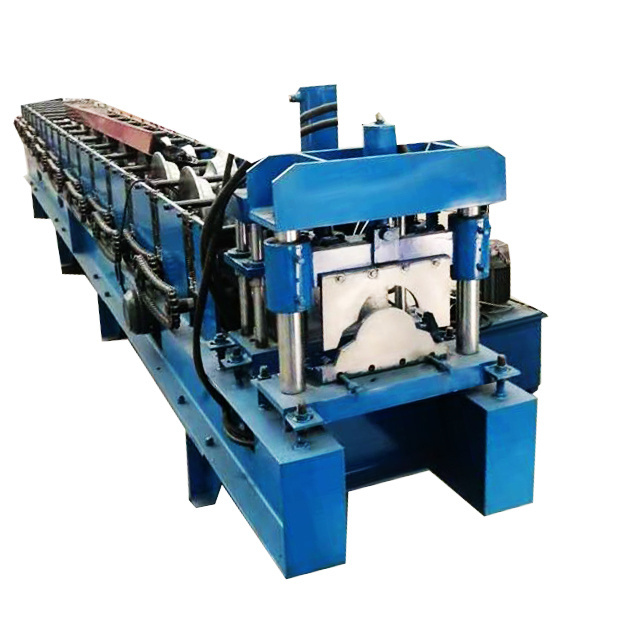

Roof Ridge
is widely used in various industrial plant, building, warehouse and simple steel structure
construction
roofing system.It has durable, stable and other advantages.The steel roof ridge roll forming machinery can take place of the simple bending machine, that can improve work efficiency automatically and save labor force.
Product Details
Roller material:45# steel with chromed treatment
Roller shaft material: 45 # steel with quenched treatment
Roller station: 12 roller stations (also according to the profile)
Roller chromed thickness: 0.06 mm
Work speed: 9m/ min
Product thickness: 0.4-0.6 mm
Product length: The ridge will be cutting after be forming, then you can set up length as you want on the PLC screen panel.
PLC brand: Delta brand
Frequency brand: Delta brand
Cutter material: Cr12
Roller shaft material: 45 # steel with quenched treatment
Roller station: 12 roller stations (also according to the profile)
Roller chromed thickness: 0.06 mm
Work speed: 9m/ min
Product thickness: 0.4-0.6 mm
Product length: The ridge will be cutting after be forming, then you can set up length as you want on the PLC screen panel.
PLC brand: Delta brand
Frequency brand: Delta brand
Cutter material: Cr12
Packing List
|
Series
|
Quantity
|
Remark
|
|
|
|
Decoiler
|
1 set
|
Hydraulic
|
|
|
|
Main roll former
|
1 set
|
12 roller stations
|
|
|
|
Cutting system
|
1 set
|
Hydraulic cutting
|
|
|
|
Product collect table
|
1 set
|
steel welded
|
|
|
|
PLC control system
|
1 set
|
|
|
|
|
Hydraulic oil pump
|
1 set
|
|
|
|
Applications
RELATED PRODUCTS
COMPANY PROFILE
Certificate
Customer Feedback
FAQ
1.Are you trading company or manufacturer ?
A:We are a 17years of factory that specializing in roll forming machines, all machine is made by ourselves and we can provide customize service according to your requirement.
2.How can I ensure that I get high-quality machine?
A:As a manufacturer, we have a strict supervision and control of every step from raw materials purchasing, brands choosing to
parts processing, assembling and testing.
3.How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and rich experience about machines and global market. We boast of professional engineer team and after-sale service team.
4.Which is your main market?
We supply machine to UK,USA, Austrila and South Korea. Besides, India is our main market, we are still looking for agent in different countries.
A:We are a 17years of factory that specializing in roll forming machines, all machine is made by ourselves and we can provide customize service according to your requirement.
2.How can I ensure that I get high-quality machine?
A:As a manufacturer, we have a strict supervision and control of every step from raw materials purchasing, brands choosing to
parts processing, assembling and testing.
3.How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and rich experience about machines and global market. We boast of professional engineer team and after-sale service team.
4.Which is your main market?
We supply machine to UK,USA, Austrila and South Korea. Besides, India is our main market, we are still looking for agent in different countries.
