Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jianghao
-
Model Number:
-
JHV-400GF
-
Product Name:
-

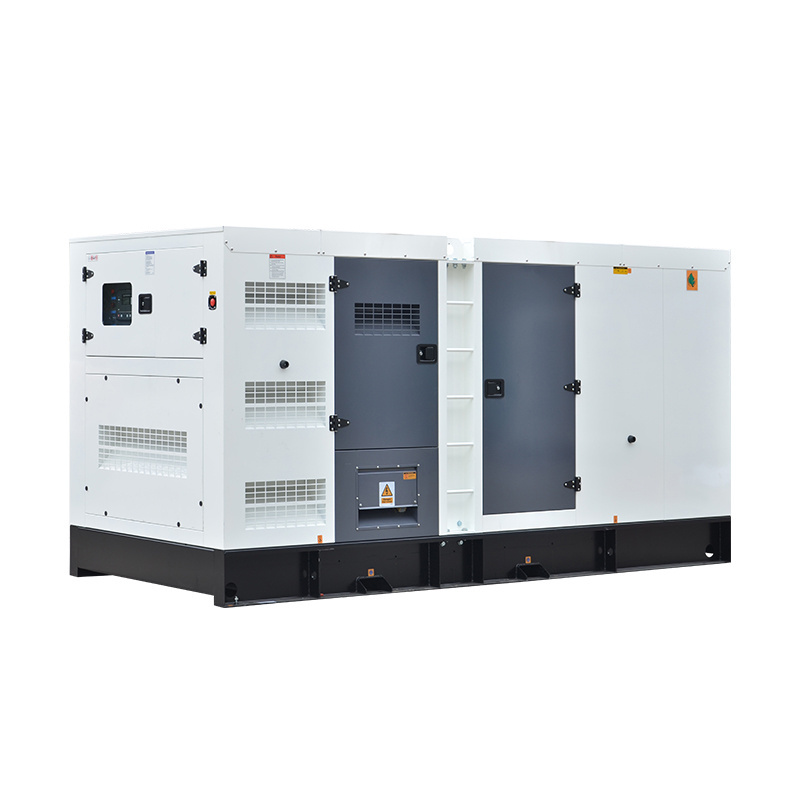

400kw Volvo genset TAD1345GE 500kva Volvo power generator
-
Engine:
-
Volvo TAD1345GE
-
Engine type:
-
Turbocharged
-
Alternator type:
-
Brushless, with full copper
-
Alternator brand:
-
Stamford /Marathon/Leroy Somer
-
Warranty time:
-
1 Year or 12 month
-
Speed governor:
-
Electronic
-
Protection class:
-
IP23
-
Insulation class:
-
H
-
Package:
-
Standard export package
Quick Details
-
Rated Voltage:
-
220V, 230V, 240V, 380v, 400V, 480V, 230V
-
Rated Current:
-
720A
-
Frequency:
-
50Hz/60Hz
-
Warranty:
-
1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jianghao
-
Model Number:
-
JHV-400GF
-
Product Name:
-
400kw Volvo genset TAD1345GE 500kva Volvo power generator
-
Engine:
-
Volvo TAD1345GE
-
Engine type:
-
Turbocharged
-
Alternator type:
-
Brushless, with full copper
-
Alternator brand:
-
Stamford /Marathon/Leroy Somer
-
Warranty time:
-
1 Year or 12 month
-
Speed governor:
-
Electronic
-
Protection class:
-
IP23
-
Insulation class:
-
H
-
Package:
-
Standard export package
| Diesel generator Details | |
| Model | JHV-400GF |
| Power |
400kw/500kva |
| Frequency | 50Hz/60Hz |
| Voltage | 380/220v(voltage can be customized) |
| Optional Type | Open/soundproof/trailer |
| Size of Open type | 3200*1200*1880mm |
| Weight of Open type | 3300kg |
| With Diesel Engine | |
| Brand&model | Volvo TAD1345GE |
| Standby Power | 431kw |
| Cylinders | 6 in line arrangement |
| Bore*Stroke | 131*158mm |
| Displacement | 12.78L |
| Lubrication Oil Capacity | 35L |
| Fuel Consumption at 100% Load | 200g/kw.h |
| Speed Governor | Electronic |
| With Alternator | |
| Optional Brands | Stamford/Leroy Somer/Mecc Alte/Marathon |
| Exciter type | Single bearing,brushless,Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| With Controller | |
| Optional brands | Deepsea/ComAp/Smartgen |
| Standard equipment | |
| · Diesel engine | · 50℃ water cooled radiator |
| · Alternator | · Silencer and flexible exhaust hose |
| · Starting batteries and battery connect wires | · Digital control panel |
| · Output circuit breaker | · Steel base frame |
| Optional equipment | |
| · Sound proof | · Water heater |
| · Automatic parallel synchronizing control system | · ATS |
| · 50℃ water cooled radiator | |
Jianghao series generators are powered by international and Chinese famous engine,such as by CUMMINS engine , by PERKINS engine , by Sweden original VOLVO engine, South Korea original DOOSAN engine, WEICHAI engine, YUCHAI engine and SDEC engine,etc,which match the world-class alternators,Such as STAMFORD, MARATHON, LEROY -SOMER,MECC ALTE,HENGSHENG and other Chinese well-known brands in order to ensure excellent quality of our products.About the controller, we mainly use DEEPSEA,COMAP,SMARTGEN.
