Quick Details
-
Voltage:
-
220V,380V
-
Weight (KG):
-
3000
-
Product name:
-
Wood Sawdust Equipment
-
Color:
-
Customizable
-
Price:
-
Competetive (can Discuss
-
Feeding size:
-
35-900mm
-
Output size:
-
30-100mm
-
Power:
-
30kw-356kw
-
Advantage:
-
High Efficiency Low Energy
-
Factory visit:
-
Welcomed Warmly
-
Delivery Time:
-
15-45 Days
-
After-sale service:
-
Rovided: Engineers
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
France, Viet Nam, Philippines, Australia, South Korea, Chile, Sri Lanka, Romania, Kazakhstan
-
Certification:
-
CE,ISO
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XKJ
-
Marketing Type:
-
Hot Product 2021
-
Voltage:
-
220V,380V
-
Weight (KG):
-
3000
-
Product name:
-
Wood Sawdust Equipment
-
Color:
-
Customizable
-
Price:
-
Competetive (can Discuss
-
Feeding size:
-
35-900mm
-
Output size:
-
30-100mm
-
Power:
-
30kw-356kw
-
Advantage:
-
High Efficiency Low Energy
-
Factory visit:
-
Welcomed Warmly
-
Delivery Time:
-
15-45 Days
-
After-sale service:
-
Rovided: Engineers
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
France, Viet Nam, Philippines, Australia, South Korea, Chile, Sri Lanka, Romania, Kazakhstan
-
Certification:
-
CE,ISO
Product Description

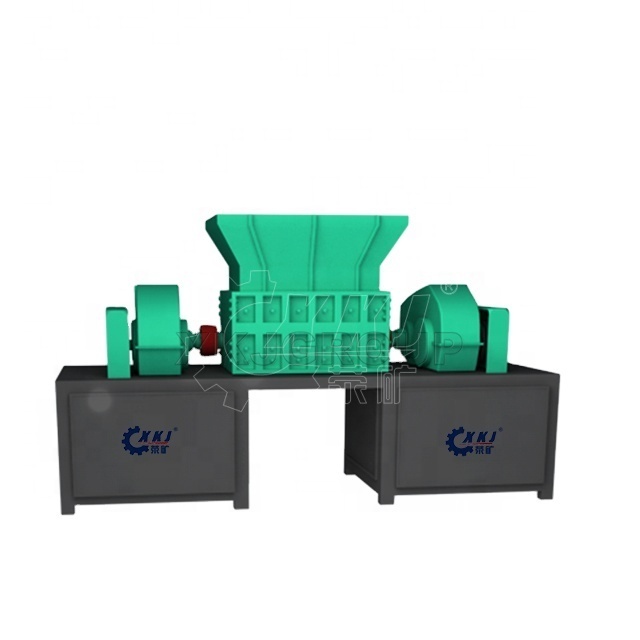

Double Shaft Shredder
— Product Description
[Introduction]:
Double Shaft S
hredder machine is designed for a wide array of applications and industries,suitable for shredding solid materials such as E-waste,metal,wood,plastic,scrap tires,packing barrel,pallets etc.The shredded materials can be used directly or go into the next step of size reduction depending on input material and the following process.It is widely used in waste recycling industries like medical recycling,electronic recycling,pallet recycling,municipal solid waste recycling,plastic recycling,tire recycling,papermaking industry etc.
Advantage
Double Shaft Shredder
—Advantage
1.Double shaft constructed with claw knives for extremely powerful shredding capacity.
2.The blades(knife)are made of special alloy steel, heat-eatment, can be replace by piece and re-welded.
3. Motor combined with gear box drive, low-speed with high torque ensuring superior output.
4. The heavy pitch gear are precision manufactured from special alloy steel, heat-treatment, hardened for durability.
5. Oil bath lubricated gear box assures smooth running ,low noise, high torque and durability.
6. With low speed and high-torque designed, provide low noise and lesser dust, with friendly environment working place.
2.The blades(knife)are made of special alloy steel, heat-eatment, can be replace by piece and re-welded.
3. Motor combined with gear box drive, low-speed with high torque ensuring superior output.
4. The heavy pitch gear are precision manufactured from special alloy steel, heat-treatment, hardened for durability.
5. Oil bath lubricated gear box assures smooth running ,low noise, high torque and durability.
6. With low speed and high-torque designed, provide low noise and lesser dust, with friendly environment working place.
Product Details
Products Specifications
|
Model
|
XKJ600
|
XKJ1000
|
XKJ1200
|
XKJ1500
|
XKJ1900
|
XKJ2600
|
|
Main shaft power
|
4-15kw*2
|
4-30kw*2
|
4-37kw*2
|
4-45kw*2
|
4-90kw*2
|
4-160kw*2
|
|
Main shafe rotary speed
|
18-20rpm
|
18-20rpm
|
18-20rpm
|
18-20rpm
|
18-20rpm
|
18-20rpm
|
|
Working capacity
|
2-5t/h
|
5-10t/h
|
6-15t/h
|
8-18t/h
|
10-25t/h
|
25-60t/h
|
|
Weight
|
3000kg
|
5000kg
|
6000kg
|
12000kg
|
15000kg
|
36000kg
|
|
Conveyor motor power
|
None
|
None
|
None
|
4-3KW
|
4-3KW
|
4-3KW
|
|
Number of cutter head
|
20pcs*φ400
|
34pcs*φ400
|
42pcs*φ400
|
46pcs*φ550
|
50pcs*φ600
|
40pcs*φ720
|
|
Finished ships size
|
3-10cm
|
3-10cm
|
3-10cm
|
3-10cm
|
3-10cm
|
3-10cm
|
|
Feeding tank size
|
0.82*0.9m
|
1.2*1m
|
1.4*1m
|
2*2m
|
2.3*2m
|
2.5*1.4m
|
|
Dimension
|
2.6*2*1.9m
|
3*2*1.9m
|
3.2*2*1.9m
|
4*1.7*2.4m
|
8*2.5*2.4m
|
8.2*4.4*4.3m
|
Working Principle
Double Shaft Shredder
Working principle
D
ouble shaft shredder is to cut and shred the materials through the relative rotating of the two sets of cutter shaft, the mutual shearing among the blades of moving knives & the cutter heads and the distance sleeves. The outlet-material control of double-shaft shredder is adopted the network design, the width and length of outlet-material is determined on the width of the cutter, and the distance of cutter heads. Two groups of cutter shaft is rotating on different speed which lead to the shearing and shredding materials simultaneously, it improves the efficiency of shredding.
