Quick Details
-
Application:
-
Digital TV Head end System
-
Product name:
-
CATV 4 8 FTA tuner to modulator DVBC to ISDBT ip to modulator
-
FTA Tuner Input:
-
4/8 FTA tuner inputs,(DVB-T/(T), ISDB-T, ATSC, DVB-C) optional
-
ASI Input:
-
2 ASI inputs is optional
-
IP Input:
-
1000M IP input
-
RF Output:
-
4 carriers RF (ATSC, DVB-C,DVB-T/(T), ISDB-T) modulation optional
-
ASI Output:
-
2 ASI output is optional
-
IP output:
-
256 SPTS and 4 MPTS over UDP and RTP protocol
-
Support:
-
PID Remapping/ PCR accurate adjusting, PID pass
-
System:
-
Network management(WEB)
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Catcast
-
Model Number:
-
HPR8401FM
-
Application:
-
Digital TV Head end System
-
Product name:
-
CATV 4 8 FTA tuner to modulator DVBC to ISDBT ip to modulator
-
FTA Tuner Input:
-
4/8 FTA tuner inputs,(DVB-T/(T), ISDB-T, ATSC, DVB-C) optional
-
ASI Input:
-
2 ASI inputs is optional
-
IP Input:
-
1000M IP input
-
RF Output:
-
4 carriers RF (ATSC, DVB-C,DVB-T/(T), ISDB-T) modulation optional
-
ASI Output:
-
2 ASI output is optional
-
IP output:
-
256 SPTS and 4 MPTS over UDP and RTP protocol
-
Support:
-
PID Remapping/ PCR accurate adjusting, PID pass
-
System:
-
Network management(WEB)
CATV 4 8 FTA tuner to modulator DVBC to ISDBT ip to modulator with ip output 256 spts and 4 mpts
Product Description
Summary

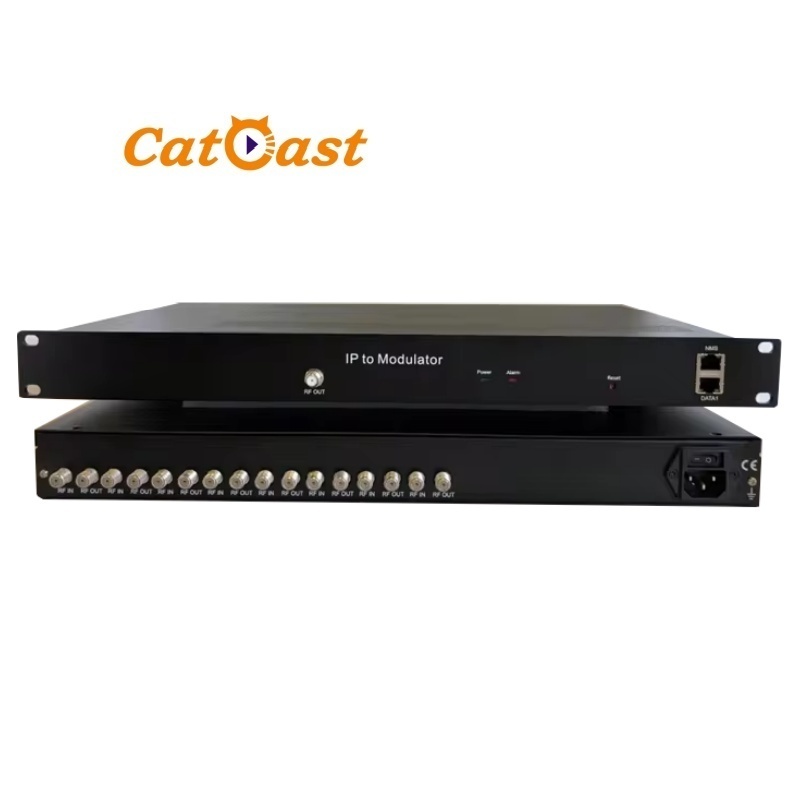

HPR8401FM tuner to modulator is professional high integration device which includes tuner demodulation, multiplexing and modulation functions. It supports 4 or 8 (DVB-S2,DVB-C,DVB-T,ATSC,ISDB-T) FTA tuner input, 1000M IP input/output, 4 carriers of ATSC/DVB-T/DVB-C/ISDB-T modulated RF output, 4 MPTS output and 256 SPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting, IPTV live streaming etc.
Key Features
* 4 or 8 FTA tuner input: (DVB-S2/DVB-C/DVB-T/ATSC/ISDBT) optional
* 1000M IP input/output over UDP and RTP protocol(MPTS and SPTS)
* 4 carrier RF output (ATSC, DVB-T, DVB-C, ISDB-T) optional
* The input program stream is multiplexed and packaged into TS stream and IP output
* 2 ASI Independent output (optional) as copy of 4 MPTS
* Support “Null PKT Filter” function
* Support PID Remapping/ PCR accurate adjusting, PID pass
* LCD、key function
* Control via web management, and easy updates via web
Specification
|
Input
|
4/8 FTA tuner inputs,(DVB-T/(T), ISDB-T, ATSC, DVB-C) optional
|
|
|
|
|||
|
|
2 ASI inputs is optional
|
|
|
|
|||
|
|
1000M IP input
|
|
|
|
|||
|
Output
|
4 carriers RF output (ATSC, DVB-C,DVB-T/(T), ISDB-T) modulation optional
|
|
|
|
|||
|
|
2 ASI output is optional
|
|
|
|
|||
|
|
IP output（256 SPTS and 4 MPTS）IP output over UDP and RTP protocol
|
|
|
|
|||
|
Multiplexing
|
Maximum PID Remapping
|
180 output pids per channel
|
|
|
|||
|
|
Function
|
PID remapping ( automatically or manually)
|
|
|
|||
|
|
|
Accurate PCR adjusting
|
|
|
|||
|
Modulator
|
DVB-T
|
RF number
|
4 RF DVB-T output
|
|
|||
|
|
|
Standard
|
EN300744
|
|
|||
|
|
|
FFT mode
|
2K
|
|
|||
|
|
|
bandwidth
|
6M, 7M, 8M
|
|
|||
|
|
|
Constellation
|
QPSK, 16QAM, 64QAM
|
|
|||
|
|
|
Guard Interval
|
1/4, 1/8, 1/16, 1/32
|
|
|||
|
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
|||
|
|
|
MER
|
≥42 dB
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~ -10 dBm, 0.1db step
|
|
|||
|
|
DVB-C
|
RF number
|
4 RF DVB-C output
|
|
|||
|
|
|
Standard
|
EN300 429/ITU-T J.83A/B/C
|
|
|||
|
|
|
MER
|
≥42db
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~-10dBm , 0.1dBm step
|
|
|||
|
|
|
Symbol Rate
|
5.0Msps~7.0Msps,1ksps stepd
|
|
|||
|
|
|
|
J.83A
|
J.83B/J.83C
|
|||
|
|
|
Constellation
|
16/32/64/128/256QAM
|
64/256 QAM
|
|||
|
|
|
Bandwidth
|
8M
|
6M
|
|||
|
|
ATSC
|
RF number
|
4 RF ATSC output
|
|
|||
|
|
|
Standard
|
ATSC A/53
|
|
|||
|
|
|
Bandwidth
|
6M
|
|
|||
|
|
|
Constellation
|
8VSB
|
|
|||
|
|
|
FEC
|
RS(208 188)+Trellis
|
|
|||
|
|
|
MER
|
≥42dB
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~-10dBm , 0.1dBm step
|
|
|||
|
|
ISDB-T
|
RF number
|
4 RF ISDB-T output
|
|
|||
|
|
|
Standard
|
ARIB STD-B31
|
|
|||
|
|
|
Bandwidth
|
6M
|
|
|||
|
|
|
Constellation
|
QPSK, 16QAM, 64QAM
|
|
|||
|
|
|
Guard Interval
|
1/32, 1/16, 1/8, 1/4
|
|
|||
|
|
|
Transmission Mode
|
2K
|
|
|||
|
|
|
Code rate
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
|||
|
|
|
MER
|
≥42dB
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~-10dBm , 0.1dBm step
|
|
|||
|
System function
|
Network management(WEB)
|
|
|
|
|||
|
|
Chinese and English language
|
|
|
|
|||
|
|
Ethernet software upgrade
|
|
|
|
|||
|
Miscellaneous
|
Dimension
(W×L×H) |
482mm*360mm*44mm
|
|
|
|||
|
|
weight
|
5kg
|
|
|
|||
|
|
Environment
|
0~45℃(work)；-20~80℃(storage)
|
|
|
|||
|
|
Power requirements
|
AC100~240V，50/60Hz
|
|
|
|||
