Quick Details
-
Size:
-
559*16.8*10975mm
-
Place of Origin:
-
Sichuan, China
-
Certification:
-
CE-TPED
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
34200KG
-
Brand Name:
-
SCNTTC
-
Size:
-
559*16.8*10975mm
-
Place of Origin:
-
Sichuan, China
-
Certification:
-
CE-TPED

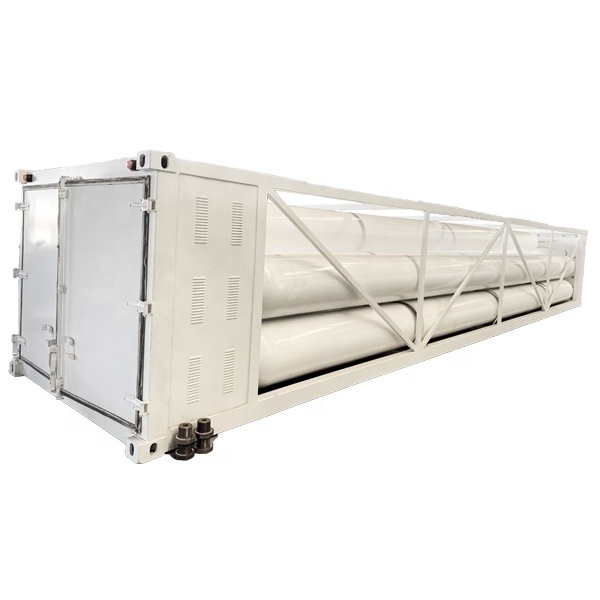

24.8M3 Capacity Helium He Skid Container Tube Trailer
Specifications:
| Numbers of Cylinder | 11 |
| Nominal pressure | 20MPa |
| Working temperature | -40 - 65ºC |
| Media Filled in | H2/He |
| Material | 30CrMo |
| Design thickness | 16.8MM |
| Size of the cylinder | Φ559*16.8*10975MM |
| Weight of a single cylinder | 2770KG |
| Quantity of filling | 4360/4489Nm3 |
| Weight under full loading | 34592/34994KG |
| Filling weight | 392/794KG |
| Tube skid weight | 34200KG |
| Calculated total volume | 24.8M3 |
| Total dimension | 12192*2438*3050MM |
It consists of the following two parts:CNG jumbo tube and CNG tube cascade skid container.
CNG long-tube trailer is the gas source of CNG filling sub station. It also can transport CNG for the civil gas system. It is an effective supplementary method to the pipe conveyance of gas. Its technology is simple and it occupies small ground. It has the following traits:
1. Import valves with high quality.
2. Advanced manufacture technology, fine manufacture equipment and feasible quality insurance system.
3. Scientific design and logical load bearing structure. This can realize the perfect combination of tractor and trailer. It can assure the safe and steady transportation.
4. It can realize various combinations with CNG storage cylinders groups and can satisfy different requirements of customers.
Figure Photos
WHY CHOOSE OUR TUBE AND TRANSPORT EQUIPMENT?
1. Council member of General Mechanical Compressor Society Of China;
2. Having pasted Systematic Authentication ISO, TUV, SGS and etc., and product certification CE-TPED, PED, USA-DOT, International ISO11120, ISO11439, ISO9809, Russian TR TS and etc.;
3.
Owning special mechanical machining, welding cold making, fabrication testing, measuring and detecting capacities and complete range of technical testing equipment;
4. Can strictly accord with client’s site conditions to specially make deformation deisgn and manufacture;
5. The most competitive price in China on the same quality and service level;
6. Yearly 365-day response client’s query after sale.
Through untiring efforts, the sales performance and marketing share of the company is made steady progress year by year, the compressors, high pressure gas tube bundle containers, integrated equipment, vessels, transport trailor for CNG, LNG and etc.and spare parts exported have already been sold far into the five continents, spreaded all over 30 countries and regions around the world.
There are many modes of transportation can choose from, such as sea transportation, air trasnportation and land transportation, we will choost the most suitable transportation mode to delivery your goods. If you have any other requests, please contact us and we will get back to you in the shortest possible time, our aim is to make you satisfied.
To have prompt and exact evaluation from factory, the following informations are essential to be provided by customer while inquiring:
1. Exact compression media: CNG, Hydrogen, Helium, Nitrogen, Propane, Air...... Preferably the gas composition can be provided;
2. Workign pressure/air tight pressure, hydraulic test pressure requirement;
3. Required loading volume in water capacity(Liter or Cubic Meter) or in gas status (Nm3/container);
4. Acceptable manufacture/inspection standard, e.g.CE-TPED, DOT, GOST, ISO11120.....etc.;
5. If it is not CNG loading media, please also provide the loading gas purity;
6. Any special requirement for tube color, package, configuration and etc..
We also can design exactly as per clients' parameters to satisfy his/her local environment and different needs. More detailed information can be provided with further communication.
