Quick Details
-
Application:
-
Construction
-
Rated Lifting Moment:
-
1.2TON.M
-
Span:
-
360
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JNDO
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Online support
-
Product name:
-
Vehicle mounted crane
-
Power:
-
12v 24v electric winch
-
Crane type:
-
Small Mobile Mini Crane
-
Certification:
-
CE
Quick Details
-
Rated Loading Capacity:
-
500KG
-
Max. Lifting Height:
-
1940mm
-
Engine Brand:
-
Not included
-
Application:
-
Construction
-
Rated Lifting Moment:
-
1.2TON.M
-
Span:
-
360
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JNDO
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Online support
-
Product name:
-
Vehicle mounted crane
-
Power:
-
12v 24v electric winch
-
Crane type:
-
Small Mobile Mini Crane
-
Certification:
-
CE

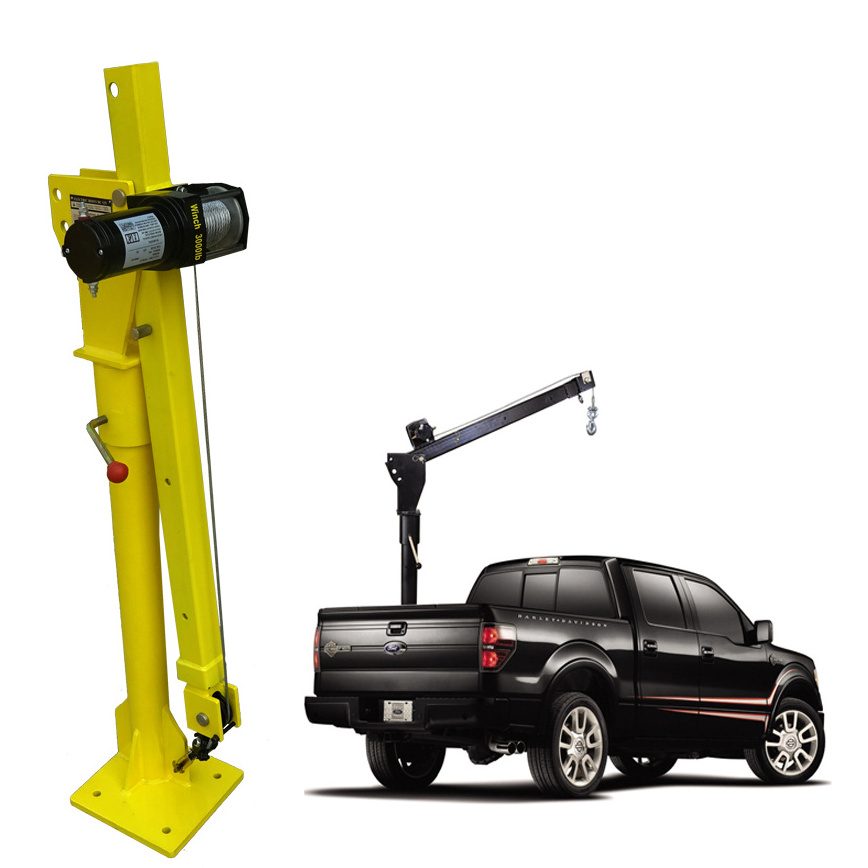

China mini pickup truck small mobile cranes for sale
1.Compact design ,folds away when not in use.
2.Easily installed,on site or by a vehicle body builder.
3.Conforms to CE safety standard.
4.Unique technology of quick lifting.
5.Larger capacity than normal shop cranes at 3 position.
6.360ºswivel operating handle.
7.Forged heavy duty swivel hook.
8.125% overload testing before delivery.
We are also electric winch manufacturer ,we can assure the quality of
electric winch!!!
|
MODEL: |
JN- HP1000 |
|
Single line Lifting Capacity(maximum) |
500kg |
|
Double-line Lifting Capacity(maximum) |
800kg |
|
Lifting Height Max.Std.(base to hook) |
1940mm |
|
Reach Max.(from center of rotation) |
1490mm |
|
Rotation (continuous) with Brake |
36 0 ° Manual |
|
Lifting Cable |
4.8mm x 4.5m –1pc(for single-line lifting)
|
|
Line speed with No Load |
3.6m/min single line |
|
Power Requirements |
12V DC 125 amps |
|
Switch Cable |
4.2m |
|
Mounting Base |
250x250x18mms |
|
Mounting Bolt Hole Pattern |
170x170mms |
|
Finish |
Powder Coated |
|
Net Weight of Crane (LBS) |
58.5KGS |
|
Color available |
As you like |
