- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
850 X 1000 X 1300mm
-
Warranty:
-
2 Years
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ce
-
Raw material:
-
Polyurethane Material A+B
-
Application:
-
wall roof storage insulation
-
Packaging Details:
-
wooden box
-
Driven mode:
-
pneumatic
-
Air source:
-
0.5~0.8 MPa ≥0.9m3/min
-
Raw output:
-
2~12 kg/min
-
Maximum output pressure:
-
22MPA
-
AB material output ratio:
-
1:1
-
Spray gun:
-
1PIECE
-
Weight:
-
136KG
-
Power:
-
18kw
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CNMC
-
Model Number:
-
CNMC/52
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
850 X 1000 X 1300mm
-
Warranty:
-
2 Years
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ce
-
Raw material:
-
Polyurethane Material A+B
-
Application:
-
wall roof storage insulation
-
Packaging Details:
-
wooden box
-
Driven mode:
-
pneumatic
-
Air source:
-
0.5~0.8 MPa ≥0.9m3/min
-
Raw output:
-
2~12 kg/min
-
Maximum output pressure:
-
22MPA
-
AB material output ratio:
-
1:1
-
Spray gun:
-
1PIECE
-
Weight:
-
136KG
-
Power:
-
18kw
Introduction of polyurea spraying machine
Factory sell diy spray foam insulation reviews polyurea applications pu machine
polyurea spraying machine spray: the construction of the external walls of spraying, spraying products, cold storage spray, refrigerated trucks spraying, roof spraying, industrial anti-corrosion, cabin, carriages, cars, tanks. buy CE certification pu&polyurea spraying machine CNMC-52, buy CE certification pu&polyurea spraying machine CNMC-52
1. The machine has a small size, light weight, low failure rate, simple operation, easy to move and so on.
2. Use the most advanced pneumatic booster devices, the maximum degree to ensure stability of equipment work.
3. Multiple raw material filter device to minimize the spray plug problem.
4. Multiple leakage protection system to protect the safety of the operator.
5. With an emergency switch system, to the most rapid response to emergencies.
6. Reliable and powerful heating system can make the raw material rapidly heating to the ideal state, to meet the normal construction of equipment.
7. The feeding volume can be adjusted, and has a regular, quantitative function, especially suitable for high-precision small batch of polyurethane casting to improve production efficiency .
8. The latest no-clean spray gun with small size, light weight, low failure rate.
9. Material taken pump use large ratio method, automatic mention material, high viscosity of winter raw materials can also easily feed.
Parameter of polyurea spraying machine
|
Model |
CNMC-52 |
|
Power source |
3-phase 4-wires 380V 50Hz |
|
Heating powe |
18KW |
|
Driven mode |
pneumatic |
|
Air source |
0.5~0.8 MPa ≥0.9m³/min |
|
Raw output |
2~12 kg/min |
|
Maximum output pressure |
22MPA |
|
AB material output ratio |
1:1 |
|
Spray gun |
1 Set |
|
Feeding pump |
2 sets |
|
Heating hose |
15meters |
|
Gun connection pipe |
2pieces |
|
Feed delivery pipe |
2pieces |
|
pneumatic pipe |
5meters |
|
Spare parts |
1set |
|
Packing size |
850 X 1000 X 1300mm |
|
Machine weight |
136KG |

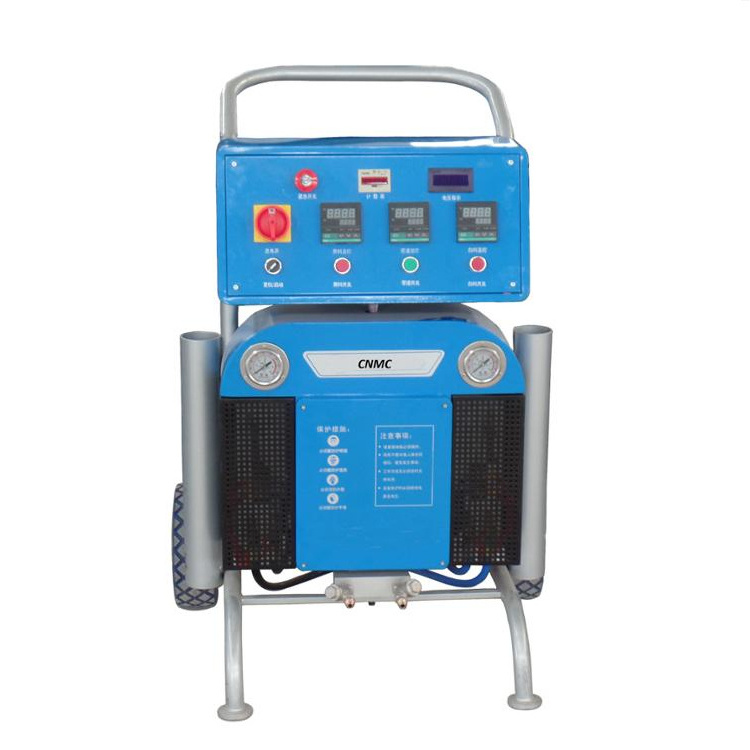

Images of polyurea spraying machine
More photos
Spray gun :
Heating hose :
Application Example:
Factory workshop:
Product dispacth
