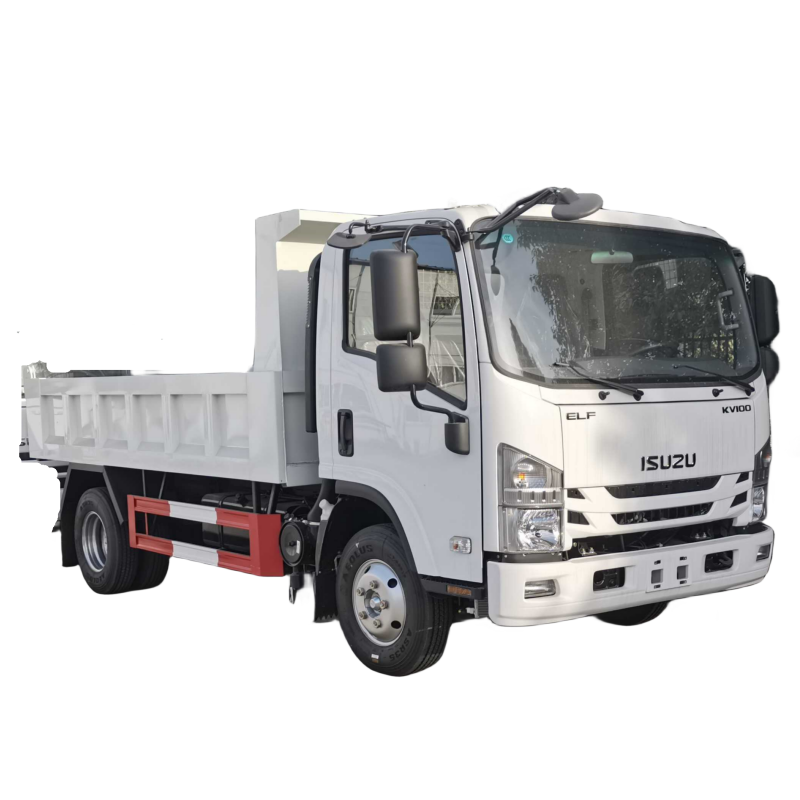

- Product Details
- {{item.text}}
Quick Details
-
Market Segement:
-
Engineering transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
5-10T
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
isuzu
-
Place of Origin:
-
Henan, China
-
Engine Brand:
-
4KH1CN5HS
-
Gear Box Brand:
-
isuzu
-
Dimensions (L x W x H) (mm):
-
5990*1900*2300mm, 5990*1900*2300
-
Cargo Tank Dimension:
-
4100*1800*400mm
-
Product name:
-
Dumper Truck
-
Driving type:
-
LHD
-
Brand:
-
ISUZU
-
Color:
-
Customer's Request
-
Loading capacity:
-
6ton
-
MOQ:
-
1 Unit
-
Engine:
-
4KH1CN5HS
-
Tire:
-
7.00R16
-
Transmission:
-
Isuzu MSB 5 speed transmission
Quick Details
-
Condition:
-
New
-
Horsepower:
-
150 - 250hp
-
Emission Standard:
-
EURO 5
-
Market Segement:
-
Engineering transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
5-10T
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
isuzu
-
Place of Origin:
-
Henan, China
-
Engine Brand:
-
4KH1CN5HS
-
Gear Box Brand:
-
isuzu
-
Dimensions (L x W x H) (mm):
-
5990*1900*2300mm, 5990*1900*2300
-
Cargo Tank Dimension:
-
4100*1800*400mm
-
Product name:
-
Dumper Truck
-
Driving type:
-
LHD
-
Brand:
-
ISUZU
-
Color:
-
Customer's Request
-
Loading capacity:
-
6ton
-
MOQ:
-
1 Unit
-
Engine:
-
4KH1CN5HS
-
Tire:
-
7.00R16
-
Transmission:
-
Isuzu MSB 5 speed transmission
Main selling points of dump truck:
1. Use of domestic first-class well-known brands of high-quality national standard Baosteel and Shousteel raw materials
2. Workshop with first-class production equipment, assembly line operation
3. Adopt CNC cutting and seamless production technology
4. The dump truck is lifted by a well-known brand in China.
5. Colour, size, capacity, plate thickness, box shape, can be customized independently
6. Unique protective light cover and rotating warning light are added to the export truck
7. First-class baking paint and spray paint technology, high durability.
| Item | Specification |
| Overall dimensions (mm) | 5990×1900×2300 |
| Box dimensions(mm) | 4100×1800×400 |
| Weight (kg) | 4000 |
| Load weight(kg) | 6000 |
| Box material | Side Q235B/3.0mm, bottom Q235B/4.0mm |
| Front axle | 2.5T ton |
| Rear axle | 5 ton |
| Gearbox | Isuzu MSB 5 speed transmission |
| frame | Straight girder |
| Tire | 7.00R16 |
| Girder material | Q235B |
| Air conditioner | Have |
| Sleeper | One sleeper |
| Front/rear overhang (mm) | Front: 1015, Rear: 1615 |
| Departure angle | Front: 23, Rear: 18 |
| Suspension | Leaf spring 8/6+5 |
| Leaf spring | Front: 8, Rear: 6+5 |
| Hydraulic cylinder | Center top, 2 pcs |
| Axle base(mm) | 3360 |
| Number of tires | 6+1 |
| Wheel base (mm) | 1504/1425 |
| Drive type | 4*2 |
| Engine | 4KH1CN5HS |
| Emission standard | Euro 5 |
| Suspend | Leaf spring |
| Driving style | Steering wheel/left-hand drive |
| Brake | Drum type |
| Brake system | Oil brake |
| Spare wheel carrier | Have |
Maintenance skills:
1. The new dump truck or the overhauled truck should be tested for trial operation, so that the lifting process of the cabin is stable and there is no movement.
2. When using, all parts should be properly selected according to the regulations, which greatly saves unloading time and labor, and the lifting mechanism strictly replaces the oil on schedule.
3. Ship according to the rated loading capacity, and overloading is strictly prohibited.
Q1.What is your minimum order quantity?
Only one is ok.
Q2. Can I print my own company logo on it?
Of course.We can meet all your requirements.
Q3.What are the price advantages of your product?
We are the source factory, can give you the lowest price of the products.
Q4.How do you guarantee the quality of your products?
We offer a one-year warranty.
Q5.What is your transportation?
We usually use container shipping or bulk.
Q6: What's your payment terms?
T/T: 30% deposit by T/T, 70% balance should be paid before shipment.
L/C: 100% irrevocable Credit of Letter.
If you have any questions, please feel free to contact us.
QA /QC: Jushixin has established sound QA /QC system, and products quality are also guaranteed in mass production. Jushixin has acquired ISO, EAC and CE certificates.
Our Mission: Design and manufacture better transportation equipment.
Our Vision: To be world-leading transportation equipment manufacturer and supplier.
