Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
SF-1
-
Product name:
-

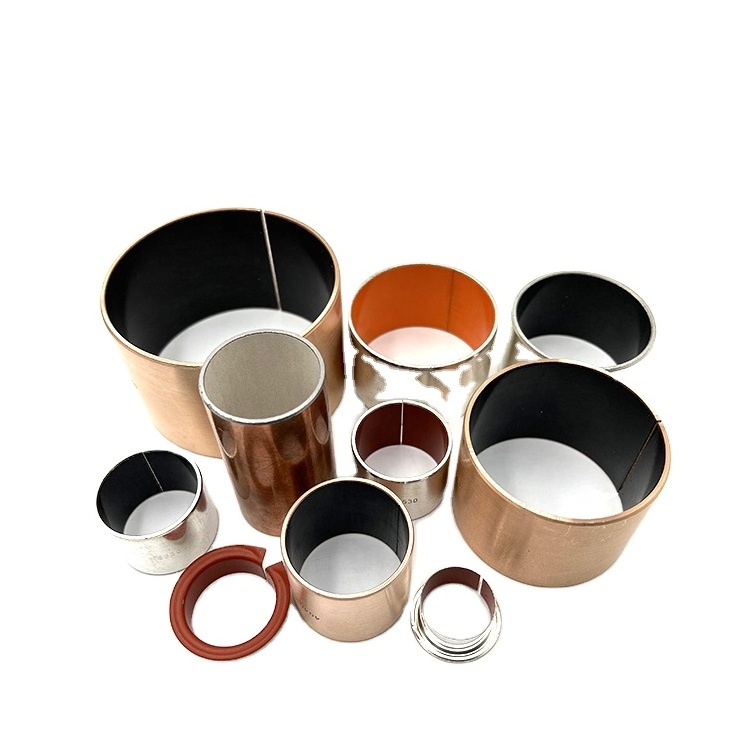

SF-1 carbon steel base self lubricating bushing
-
Max Load Capacity:
-
Static load 250N/mm2/Dynamic load 140N/mm2
-
Max Sliding Speed:
-
Dry friction 2.5m/s/Oil lubricationC 5.0m/s
-
Max PV Value Limit:
-
Dry friction3.6N/mm2-m/s/Oil lubrication50N/mm2-m/s
-
Friction coefficient:
-
Dry friction0.08-0.20/Oil lubrication0.02-0.07
-
Working temperature:
-
195°℃-+280°
-
Thermal conductivity:
-
42W/m-K
-
Coefficient of thermal expansion:
-
11X10-6/K
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Other, textile machine, printing press, hydraulic truck, fitness equipment, agricultural machinery
-
Type:
-
sleeve
-
Material:
-
Steel backing+Porous Bronze+PTFE with lead
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
SF-1
-
Product name:
-
SF-1 carbon steel base self lubricating bushing
-
Max Load Capacity:
-
Static load 250N/mm2/Dynamic load 140N/mm2
-
Max Sliding Speed:
-
Dry friction 2.5m/s/Oil lubricationC 5.0m/s
-
Max PV Value Limit:
-
Dry friction3.6N/mm2-m/s/Oil lubrication50N/mm2-m/s
-
Friction coefficient:
-
Dry friction0.08-0.20/Oil lubrication0.02-0.07
-
Working temperature:
-
195°℃-+280°
-
Thermal conductivity:
-
42W/m-K
-
Coefficient of thermal expansion:
-
11X10-6/K
PRODUCT DETAILS
|
Performance index
|
|
Data
|
|
|
Max Load Capacity
|
Static load
|
250N/mm
2
|
|
|
|
Dynamic load
|
140N/mm2
|
|
|
Max Sliding Speed
|
Dry friction
|
2.5m/s
|
|
|
|
Oil lubrication
|
5.0m/s
|
|
|
Max PV Value Limit
|
Dry friction
|
3.6N/mm
2
·m/s
|
|
|
|
Oil lubrication
|
50N/mm2·m/s
|
|
|
Friction coefficient
|
Dry friction
|
0.08—0.20
|
|
|
|
Oil lubrication
|
0.02—0.07
|
|
|
Working temperature
|
|
-195℃ — +280℃
|
|
|
Thermal conductivity
|
|
42W/m·K
|
|
|
Coefficient of thermal expansion
|
|
11✖10
-6
/K
|
|
HOT SELL PRODUCTS
COMPANY INTRODUCTION
APPLICATION
OUR HONORS AND TEAM
FAQ
Q. Are you manufacturer or trade company ?
A: We are manufacturer.
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q. What is the lead time?
A: Sample: 5-7 working days normally. Mass production time : 30 working days.
Q. Do you have any MOQ limit?
A: We don't have MOQ, but if quantity large, prices will be lower.
Q. What's your payment term?
A: Usually we accept T/T, we also accept L/C, Paypal and Western Union, credit card or via ALIBABA.
Q. Do you offer guarantee for the products?
A: Yes, we offer one-year guarantee for the goods.
Q. Why do we choose your company?
A: Our company is a professional bearing manufacturer for over 20 years. We always insist quality first, and we have advantage in quality control and price.
A: We are manufacturer.
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q. What is the lead time?
A: Sample: 5-7 working days normally. Mass production time : 30 working days.
Q. Do you have any MOQ limit?
A: We don't have MOQ, but if quantity large, prices will be lower.
Q. What's your payment term?
A: Usually we accept T/T, we also accept L/C, Paypal and Western Union, credit card or via ALIBABA.
Q. Do you offer guarantee for the products?
A: Yes, we offer one-year guarantee for the goods.
Q. Why do we choose your company?
A: Our company is a professional bearing manufacturer for over 20 years. We always insist quality first, and we have advantage in quality control and price.
