Quick Details
-
Wire Diameter:
-
0.6mm,0.7mm,0.8mm,0.9mm
-
Color:
-
White and black and gray
-
Standard size:
-
900mmx2000mm,900mmx2400mm
-
Application1:
-
Protecting mesh
-
Application 2:
-
Window screen
-
Certificate:
-
ISO 9001,CE,SGS etc.
Quick Details
-
Screen Netting Material:
-
Stainless steel
-
Place of Origin:
-
Hebei, China
-
Weave Style:
-
Plain Weave
-
Wire Diameter:
-
0.6mm,0.7mm,0.8mm,0.9mm
-
Color:
-
White and black and gray
-
Standard size:
-
900mmx2000mm,900mmx2400mm
-
Application1:
-
Protecting mesh
-
Application 2:
-
Window screen
-
Certificate:
-
ISO 9001,CE,SGS etc.

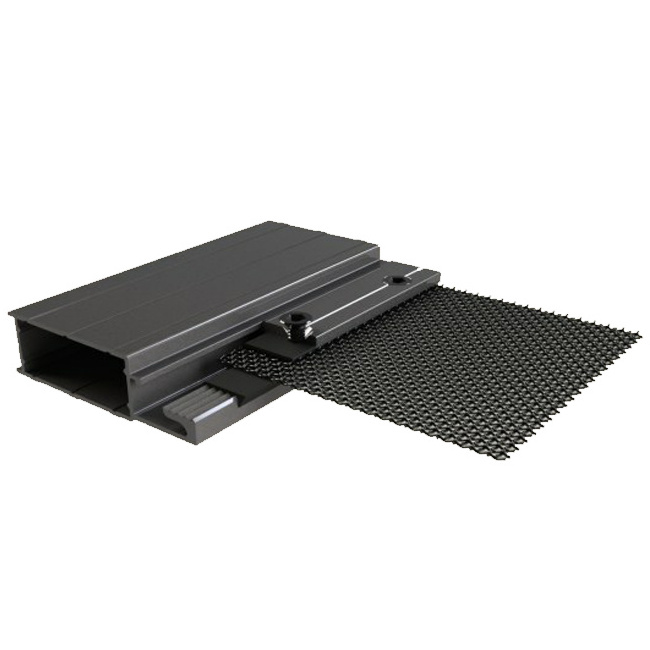

Security Steel Mesh Screen Door, Stainless Steel Secure Mesh for Door and Window Sydney, Vision Window Screen
1. Material : Stainless steel 304, ss316, ss316L mesh, carbon steel mesh
2. Mesh : 10x10mesh.11x11mesh, 12x12 mesh, etc.
3. Wire diameter : 0.80mm, 0.90mm, 1.0mm, etc.
4. Width x Length : ( Max width:1.5M )
750x1500/2000/2400mm, 900x1500/2000/2400m, 1200x1500/2000/2400mm, etc.
|
Material |
Mesh |
Wire Dia . |
Open (mm) |
Open Area |
|
mm / inch |
% |
|||
|
SS 316 or 304 |
10 x 10 |
0.9mm /0.035" |
1.64 |
41.7 |
|
SS 316 or 304 |
10 x 10 |
1.2mm /0.028" |
1.34 |
27.8 |
|
SS 316 or 304 |
10 x 10 |
0.8mm / 0.032" |
1.74 |
46.9 |
|
SS 316 or 304 |
10 x 10 |
1.15mm / 0.045" |
1.39 |
29.9 |
|
SS 316 or 304 |
11 x 11 |
0.8mm /0.032" |
1.5 |
42.5 |
|
SS 316 or 304 |
11 x 11 |
0.7mm / 0.027" |
1.6 |
48.3 |
|
SS 316 or 304 |
12 x 12 |
0.7mm / 0.027" |
1.42 |
44.8 |
|
SS 316 or 304 |
12 x 12 |
0.58mm / 0.023" |
1.54 |
52.8 |
|
Special mesh can be made according to customers requirement . |
||||
5. Finish of Epoxy coated window screen stainless steel mesh :
Black powder coated, Grey powder coated etc.
6.Feather of Epoxy coated window screen stainless steel mesh :
- Safe: Hard to cut and break,bulletproof
- Private live: No one can peep at room
-
Beautiful: Equal wire,equal hole ,flat surface
- Durable: Corrosion resistance and exposure
7.Application of Bullet Proof Screen Door and Windows :
Door screen for insect proof, and for decoration. It is theft-proof, Bulletproof, home safety protection in the workplace of choice
8.Packing details: A piece of waterproof paper between two pieces of mesh,then with Wooden case or pallet.
Shipping:
- If less 45kg.The express is better.
- More than 50kg.Less than 1ton,The sea transportation and the air transportation are ok.
- More than 1tons,The sea transportation is best.
1. Any inquires will be replied within 24 hours.
2. OEM/ODM is available.
Printing logo on customized products;
Customized design and material;
Customized packing for your products.
3. Before-sale and after-sale service
All products have been strictly quality test in our factory before packing.
If the products you receive have any quality problems, we promise to return the goods timely.
