Wuhan HUAYI Electric was founded in 2005, located in Wuhan City, China. We are a professional manufacturer of electric testing equipment with over 15 years industry experience, engaged in high voltage tester with high performance, good quality, customized specification and easy operation. ISO qualified factory, strong R&D team and after-sales engineers make us gain good feedback from wide customers. HUAYI is committed to preventative, maintenance, troubleshooting and commissioning all the time. Our products are involved in
AC/DC Hipot tester,
series resonant test system
,
transformer tester,
relay tester
,
circuit breaker/switch tester
,
oil/SF6 tester,
cable tester
and other electric instruments, widely adapted to electric power, water conservation, oil, railway, mine, chemical.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HUAYI
-
Model Number:
-
YWS-H
-
Product name:
-

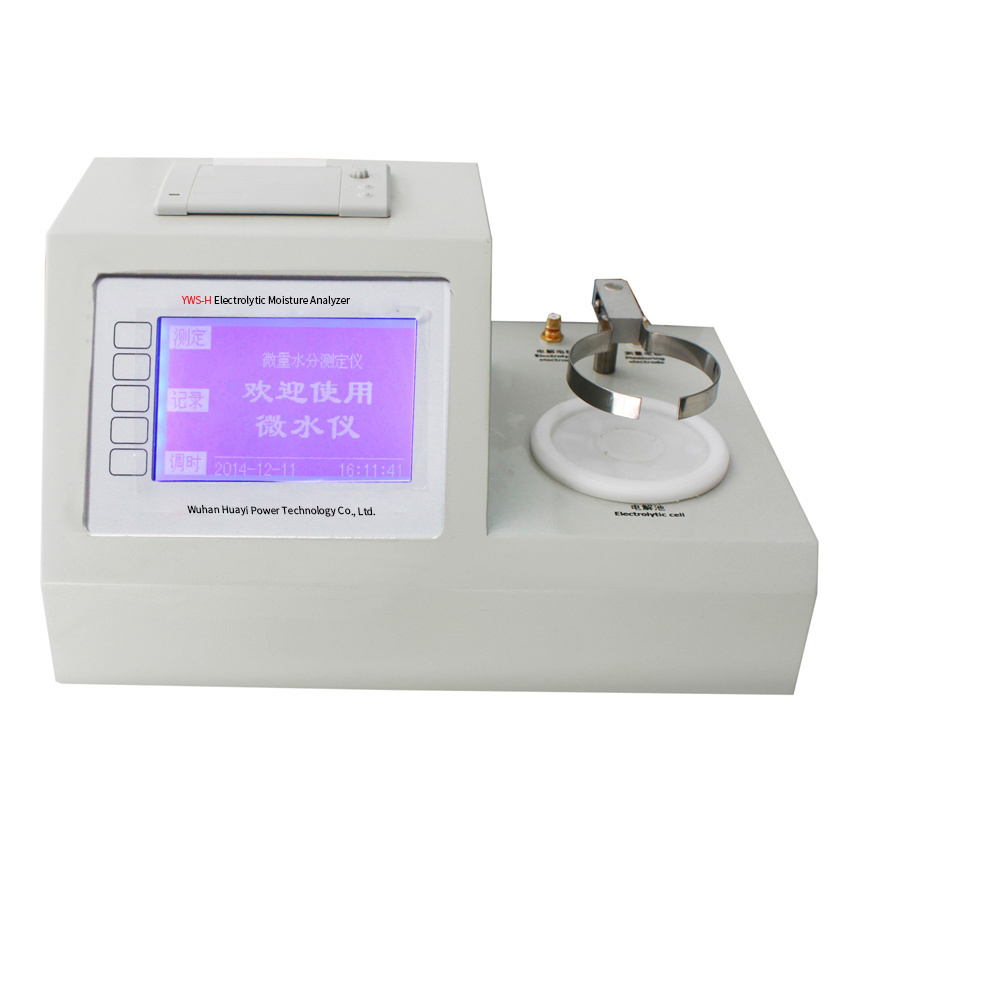

YWS-H Electrolytic Moisture Analyzer
-
Application:
-
Electrics
-
Certificate:
-
ISO 9001
-
Test range:
-
0ug~100mg
-
Type:
-
Automatic
-
Resolution:
-
0.1ug
-
Display:
-
LCD Display
-
Function:
-
Detect
-
Power supply:
-
220V 50Hz
Quick Details
-
Warranty:
-
1 year, 12 Months
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
HUAYI
-
Model Number:
-
YWS-H
-
Product name:
-
YWS-H Electrolytic Moisture Analyzer
-
Application:
-
Electrics
-
Certificate:
-
ISO 9001
-
Test range:
-
0ug~100mg
-
Type:
-
Automatic
-
Resolution:
-
0.1ug
-
Display:
-
LCD Display
-
Function:
-
Detect
-
Power supply:
-
220V 50Hz
Product Description
Introduction
Insulation Oil Moisture Analyzer YWS Karl Fischer Cullen Way Water Content Tester
Features
1. Adopts 240x128 dot matrix LCD, unmarked keys, friendly interface;
2. using the electrolysis circuit of switch constant-current source, reduce power consumption of
the instrument;
3. The instrument with battery, after the battery is fully charged, under normal test state
continuous use more than 8 hours; and with battery power detection and display function
4. High-precision measuring electrode signal and detection circuit can determine the electrolysis
end quickly and accurately, and with strong anti-interference ability;
5. The use of blank current compensation and equilibrium point drift compensation to correct the
measurement results;
6. Three formulas for users to choose, automatically calculate the moisture content
7. 10 gears stirring speed adjustment; 10 gears electrolysis-gain adjustment
8. With measuring electrode open-circuit fault, short circuit fault automatic detection functions.
9. Automatically store historical records, up to 255 groups;
10. Calendar clock with temperature compensation is accurate, and can automatically records the
date and time of test; it can run more than 10 years in the power-down state.
11. With the screen protection function, do not operate the instrument for a long time, turn off the
LCD screen to extend the life of the LCD, press any key to exit the screen protection state.
Technology Parameters
|
Accuracy
|
100/3V, 100/√3V, 100V
|
|
Normal parameters
|
Measurement range：0ug～100mg
|
|
|
Resolution：0.1ug
|
|
|
Max electrolysis speed：40ug/s
|
|
|
Power voltage：AC220V±20%
|
|
|
Max power consumption：30W
|
|
|
Temperature：10～35℃
|
|
|
Humidity：≤85%
|
|
|
Dimension：320×240×150(mm)
|
|
|
|
Accessory
|
Serial Number
|
Name
|
Amount
|
Serial Number
|
Name
|
Amount
|
|
1
|
Mainframe
|
one
|
9
|
0.5ul Micro-sampler (imported)
|
one
|
|
2
|
Electrolyte
|
one
|
10
|
25ul Micro-sampler
|
one
|
|
3
|
Power line
|
one
|
11
|
2ml Glass syringe
|
one
|
|
4
|
Cell
|
one
|
12
|
Printing paper
|
two
|
|
5
|
Stirrer
|
two
|
13
|
Sealing needle
|
two
|
|
6
|
Silicone pad
|
ten
|
14
|
Specification
|
one
|
|
7
|
Allochroic silicagel
|
one
|
15
|
Inspection Report
|
one
|
|
8
|
Vacuum grease
|
one
|
16
|
Certification
|
one
|
Products Show
Our Company
Production
office
Warehouse
R&D team
Meeting room
show room
Production Line
We are professional manufacturer in China, have own production line and R&D team, providing best price and quality.
Filed Test&Service
Packing & Delivery
Our Certifications
FAQ
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2.What is the mini order quantity?
MOQ: generally 1 unit/piece/set
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union...
4.Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
5.What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
