Quick Details
-
Voltage:
-
220V 50HZ
-
Power:
-
3kw
-
Dimension(L*W*H):
-
840*750*1400mm
-
Weight (KG):
-
130
-
Weight:
-
150kg
-
Name:
-
laboratory full-automatic mini spray dryer price
-
Temperature Range of Inlet Air:
-
40 Degree C ~300 Degree c
-
Temperature Range of Outlet Air:
-
40°C -140°C
-
Dryer Time:
-
1.0~1.5 S
-
Speed of Squirt Pump:
-
50-2000ml/H
-
Spray System:
-
Nozzle (0.75/1.0/1.5/2.0/2.5mm)
-
Spray Direction:
-
Downwards Co-Current
-
Display:
-
LCD Touch Display Screen
Quick Details
-
Type:
-
Spray Drying Equipment
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
FENGYU
-
Voltage:
-
220V 50HZ
-
Power:
-
3kw
-
Dimension(L*W*H):
-
840*750*1400mm
-
Weight (KG):
-
130
-
Weight:
-
150kg
-
Name:
-
laboratory full-automatic mini spray dryer price
-
Temperature Range of Inlet Air:
-
40 Degree C ~300 Degree c
-
Temperature Range of Outlet Air:
-
40°C -140°C
-
Dryer Time:
-
1.0~1.5 S
-
Speed of Squirt Pump:
-
50-2000ml/H
-
Spray System:
-
Nozzle (0.75/1.0/1.5/2.0/2.5mm)
-
Spray Direction:
-
Downwards Co-Current
-
Display:
-
LCD Touch Display Screen
5L 6L 8L Industrial Lab Coffee Instant Tea Flavored Meat Soy Peanut Protein Corn Syrup Centrifugal Milk Powder Making Machine
Description of 5L pilot plant High Speed Centrifugal spray dried ceramic,additives ,flavors Powder Spray Dryer
Raw material is throws out and atomized by centrifugal force role in rotary table (90-160 - m/s peripheral speed) from the plate edge, the whole system adopts hot air circulation drying.
Product Features:
5L pilot plant High Speed Centrifugal spray dried ceramic,additives ,flavors Powder Spray Dryer
1.The drying speed is fast, and after the spraying of the liquid materials, the superficial area of the materials is increased greatly. In the hot air flow, 95-98% of water can be evaporated at a moment. The time to complete the drying just needs several seconds, that is especially suitable for the heat sensitive materials.
2.This product has good uniformity, liquidity and solubleness, the product purity and quality is good, too.
3.The production process is simple the operation is convenient.
4.For the liquid with 40-60% of moisture content, they can be dried into powder and granular products at one time. It won’t need to be crushed or screened after the drying, which reduces the production procedures and increases the product purity. For the product grain size, bulk density and moisture content, it can be adjusted by changing the operating conditions at the certain ranges, so it is convenient to control and manage.
Technical Parameters:
|
Model |
FY -S5L |
FY -S10L |
FY -S15L |
FY -S20L |
|
Temperature range of inlet air |
40 ℃ ~ 300 ℃ |
40 ℃ ~ 300 ℃ |
40 ℃ ~ 300 ℃ |
40 ℃ ~ 300 ℃ |
|
Temperature range of outlet air |
40 ℃ ~ 140 ℃ |
40 ℃ ~ 140 ℃ |
40 ℃ ~ 140 ℃ |
40 ℃ ~ 140 ℃ |
|
Spray system |
Centrifugal nozzle |
Centrifugal nozzle |
Centrifugal nozzle |
Centrifugal nozzle |
|
Precision of temperature |
± 1 ℃ |
± 1 ℃ |
± 1 ℃ |
± 1 ℃ |
|
Dryer time |
1.0-1.5 S |
1.0-1.5 S |
1.0-1.5 S |
1.0-1.5 S |
|
Speed of squirmy pump |
5000ml |
10000ml |
15000ml |
20000ml |
|
Spray direction |
Downwards
|
Downwards
|
Downwards
|
Downwards co-current |
|
Heater Power |
6KW |
15KW |
18KW |
20KW |
|
Total power |
9KW |
20KW |
22KW |
24KW |
|
Heat source |
Electric |
Electric |
Electric |
Electric |
|
Air compressor |
Built-in oil-free air compressor |
|||
|
Dried powder restoring rate |
≥98 |
≥98 |
≥98 |
≥98 |
|
Dimension(L*W*H)mm |
2000×1100×2200 |
2200×1300×2400 |
2500×1600×2600 |
2500×1600×2800 |
|
Maximum moisture evaporation |
5kg/h |
10kg/h |
15kg/h |
20kg/h |
Dryer samples :
Customer customized design drawings:

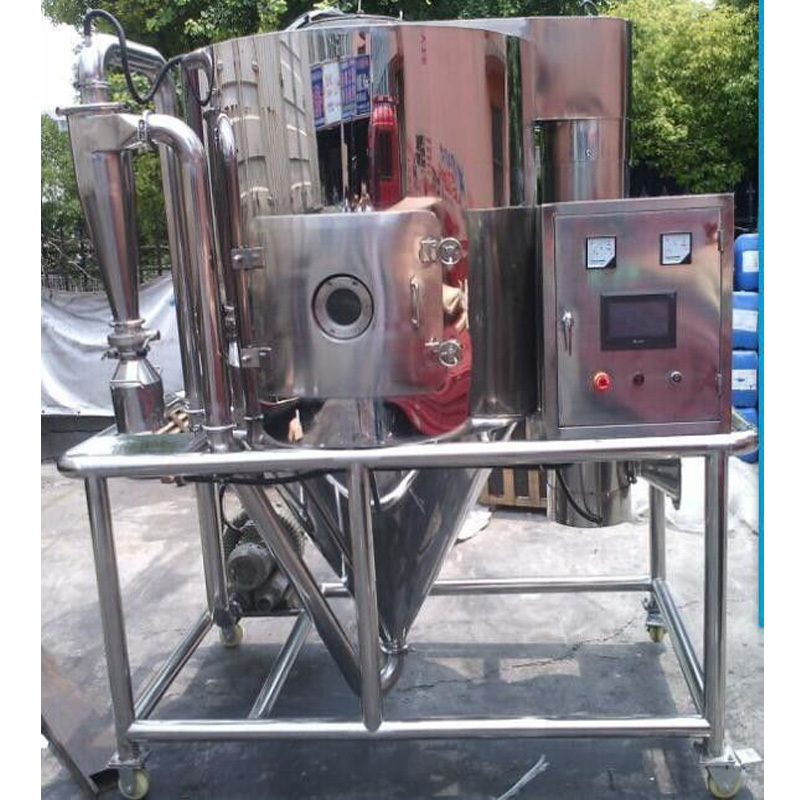

Product details for 5L.10L Spray Dryer :
FENGYU Laboratory spray dryer according to different spray drying nozzle could classify as two-fluid spray dryer and centrifugal spray dryer, if you use it it in laboratory or small scale product, suggest choose two-fluid spray drying machineand its capacity is 1500ml/h to 3000ml/h, if you need 3000ml/h, 5000ml/h, 10000ml/h and larger capacity please choose centrifugal spray drying equipment.
widely used Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others...any interests, please contact us ,thanks!!!
