Quick Details
-
Material:
-
ceramic
-
Weight:
-
855g
-
Size:
-
203*88*95
-
Power:
-
80W
-
Warranty:
-
180 Days
-
Productivity:
-
5 g/h
-
Weight (KG):
-
1.6 kg
-
ozone output:
-
5g/h
-
Application:
-
For Air or Water Treatment
-
Cooling Method:
-
Double Air Cooling
-
Gas Feeding:
-
Air or Oxygen
-
Discharge material:
-
Ceramic
-
Certificates:
-
CE, RoHS, REACH
Quick Details
-
Core Components:
-
ceramic tube
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
DGOzone
-
Material:
-
ceramic
-
Weight:
-
855g
-
Size:
-
203*88*95
-
Power:
-
80W
-
Warranty:
-
180 Days
-
Productivity:
-
5 g/h
-
Weight (KG):
-
1.6 kg
-
ozone output:
-
5g/h
-
Application:
-
For Air or Water Treatment
-
Cooling Method:
-
Double Air Cooling
-
Gas Feeding:
-
Air or Oxygen
-
Discharge material:
-
Ceramic
-
Certificates:
-
CE, RoHS, REACH

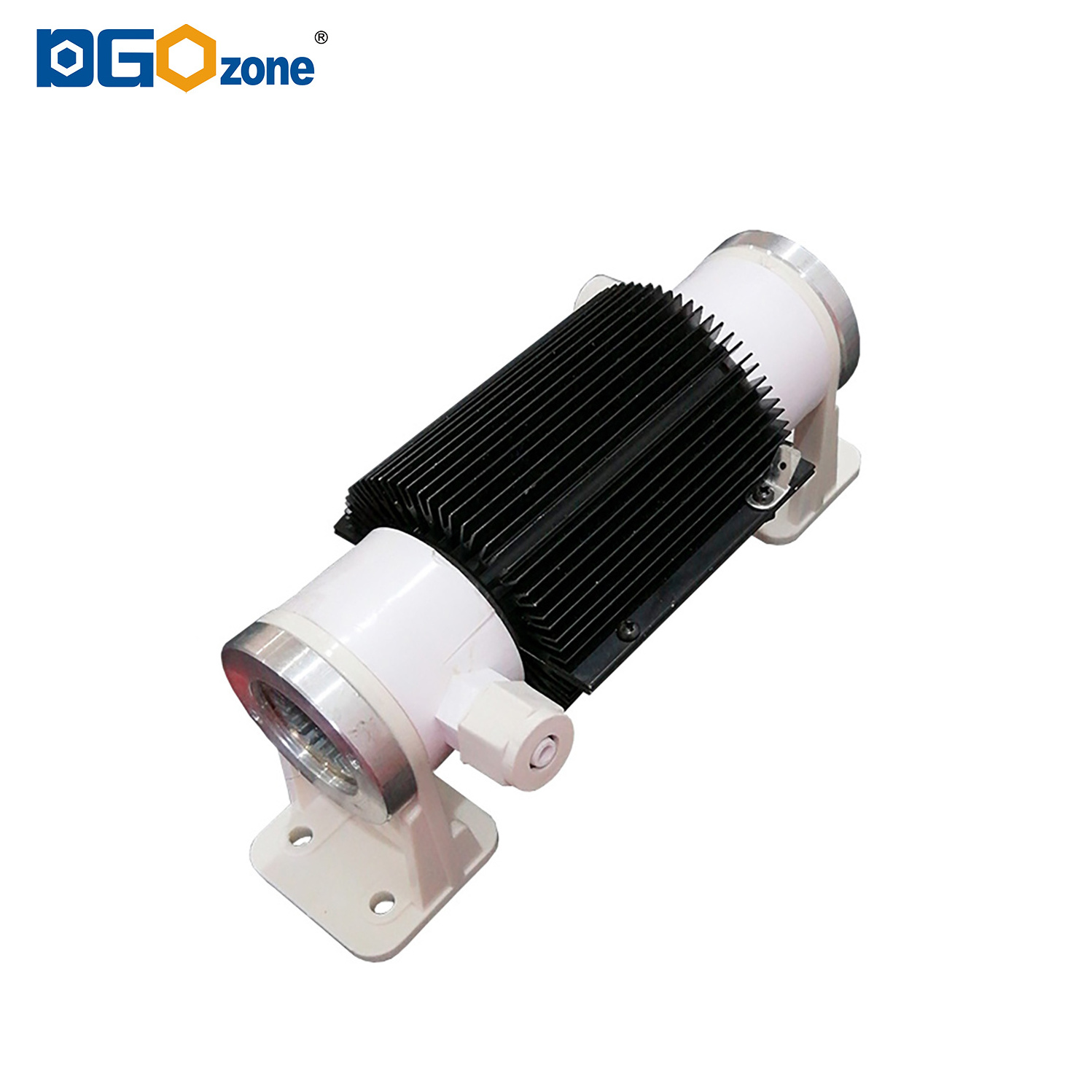

5g ceramic tube for ozone generator
The ozone tube is newly-developed, double air cooling design, can work 7*24hours only under AIR COOLING. Besides, the electrode inside the tube is improved to change into titanium alloy, this makes the longlife of ozone tubes longer than former tubes.
One set includes one ozone tube and one transformer.
5G/H ceramic tube ozone generator units (double air cooled)
|
Item/Model
|
KHT-5GO
A1
KHT-5GO A2 |
|
KHT-5GOR
A1
KHT-5GOR
A2
|
KHT-5G
D12
KHT-5G
D24
|
|||
|
Voltage
|
A1:
AC110V~130V 50/60Hz
A2:
AC220V~240V 50/60Hz
D12:
DC12V
D24:
DC24V
|
|
|
|
|||
|
Oxygen flow
|
1L/Min
|
3L/Min
|
|
5L/Min
|
|||
|
Ozone concentration
based on
oxygen feeding
|
65Mg/L
|
43Mg/L
|
|
30Mg/L
|
|||
|
Ozone output
based on
oxygen feeding
|
3.9G/H
|
7.7G/H
|
|
9.0G/H
|
|||
|
Power
|
80W
|
|
|
|
|||
|
Output high voltage
|
2.5~3.5KV 16KHz
|
2.5~3.5KV 16KHz
|
2.5~3.5KV 16KHz
|
3.5~4.0KV 12KHz
|
|||
|
Ozone output
adjustable range
|
/
|
/
|
20%~100%
|
20%~100%
|
|||
|
Transformer
|
Epoxy potting,
Dampproof,
Waterproof
|
Short circuit protection,
Open circuit protection,
Overcurrent protection,
Overvoltage protection,
Overheat protection
|
Short circuit protection,
Open ciruit protection,
Overcurrent protection,
Overvoltage protection,
Overheat protection,
using IGBT drive chip control,
working more stable and reliable
|
Short circuit protection,
Open circuit protection,
Overcurrent protection,
Overvoltage protection,
Overheat protection
|
|||
|
Cooling method
|
Air cooling for internal and external electrodes
|
|
|
|
|||
|
Test conditions
|
1. Using the ultraviolet absorption method to test the ozone output and concentration.
2. Oxygen purity: >95%, Dew point: >-45℃.
3. Ambient temperature: ≤10℃, Humidity: <10% (Different temperature and humidity in the environment will affect the ozone output and concentration.)
|
|
|
|
|||
