Quick Details
-
Output:
-
100-500kg/h
-
Final product:
-
Plastic pellets
-
Screw Diameter:
-
45mm
-
Application:
-
Waste plastic recycle
-
Dimension:
-
1280*450*660mm
-
Advantage:
-
Low Noise
-
Name:
-
PE PP underwater plastic granulator machine
-
Keywords:
-
EVA TPU underwater plastic granulator machine
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Motor:
-
SIEMENS Brand
-
Inverter:
-
ABB Brand
-
Output:
-
100-500kg/h
-
Final product:
-
Plastic pellets
-
Screw Diameter:
-
45mm
-
Application:
-
Waste plastic recycle
-
Dimension:
-
1280*450*660mm
-
Advantage:
-
Low Noise
-
Name:
-
PE PP underwater plastic granulator machine
-
Keywords:
-
EVA TPU underwater plastic granulator machine

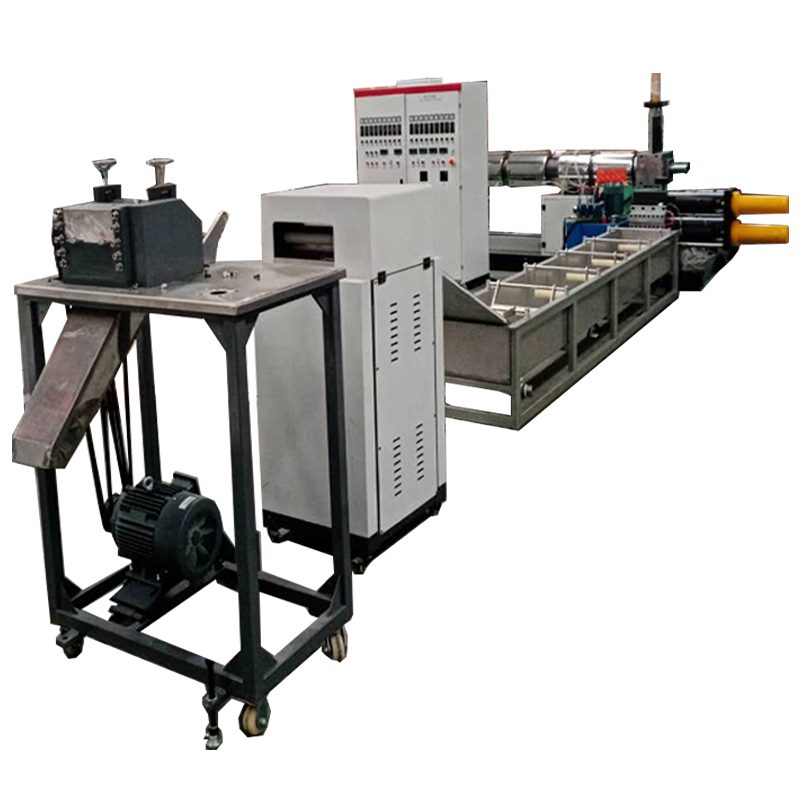

Waste plastic recycling double-stage pelletizing machine
1.These plastic recycling machines may regenerate polyethylene, polypropylene, polyvinyl chloride, PE, , PVC, PET, ABS, PS (polystyrene foam) and other plastics.
2.The series of plastic recycling machine can be used both in dry and wet conditions and directly process washed material so as to save place, time and manpower and reduce production cost.
3.The whole production line can be operated by only two workers. It is widely used in the treatment system for urban consumer waste. waste plastics; free training for producing technology of various waste plastics), free installation.
Technology Parameters Table
|
|
SJZ120-F2 |
SJZ130-F2 |
SJZ140-F2 |
SJZ150-F2 |
SJZ160-F2 |
SJZ180-F2 |
SJZ200-F2 |
|
|
|
Diameter φ |
120 |
130 |
140 |
150 |
160 |
180 |
200 |
|
Length mm |
12.5:1 |
12.3:1 |
12.1:1 |
12:1 |
12.5:1 |
12.2:1 |
12.5:1 |
|
|
Rotation speed r/min |
60-90 |
60-90 |
60-90 |
60-90 |
60-90 |
60-90 |
60-90 |
|
|
Material |
45# |
45# |
45# |
45# |
45# |
45# |
45# |
|
|
Number of heated are |
3 |
3 |
4 |
4 |
4 |
4 |
4 |
|
|
Average heating power KW |
15-25 |
15-25 |
20-30 |
20-30 |
25-30 |
30-35 |
35-40 |
|
|
Motor power |
15-18.5 |
18.5 |
18.5-22 |
22 |
22-30 |
30-35 |
37 |
|
