Quick Details
-
Model Number:
-
A20-T20-S2-C
-
Brand Name:
-
Tonhe
-
Actuator:
-
Gray color
-
Working voltage:
-
AC/DC9-24V
-
Wiring diagram::
-
CR202 with normal open or normal closed type
-
Service life:
-
70000 times
-
Sealing material:
-
PTFE and FKM
-
Actuator torque:
-
2N.M
-
Open/close time::
-
≤5S
-
Working current:
-
≤200 mA
-
Protect Class:
-
IP67
-
Certification:
-
CE,ROHS,NSF
Quick Details
-
Port Size:
-
3/4" BSP or NPT
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
A20-T20-S2-C
-
Brand Name:
-
Tonhe
-
Actuator:
-
Gray color
-
Working voltage:
-
AC/DC9-24V
-
Wiring diagram::
-
CR202 with normal open or normal closed type
-
Service life:
-
70000 times
-
Sealing material:
-
PTFE and FKM
-
Actuator torque:
-
2N.M
-
Open/close time::
-
≤5S
-
Working current:
-
≤200 mA
-
Protect Class:
-
IP67
-
Certification:
-
CE,ROHS,NSF

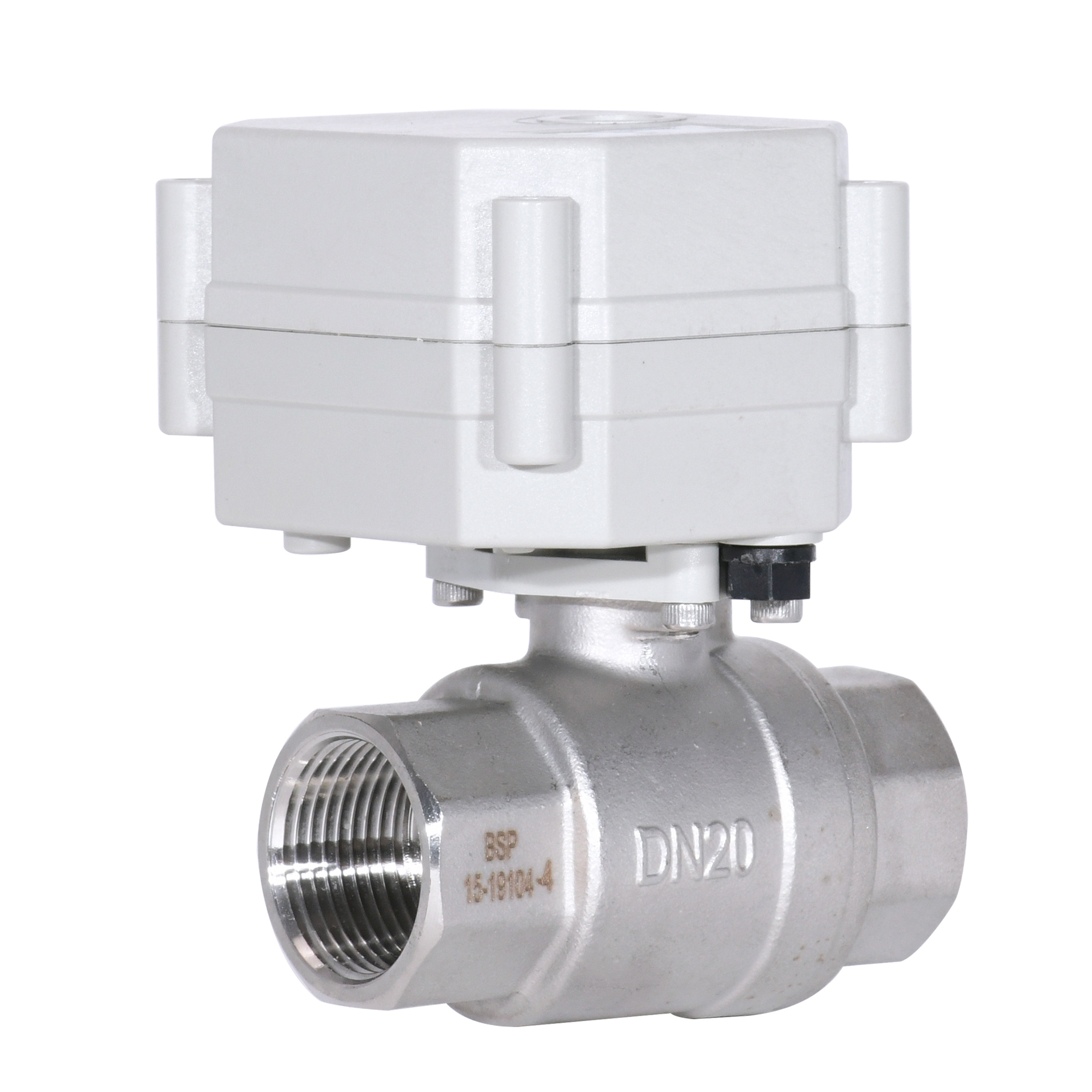

electric control valve factory price 2 way 3/4" inch DN20 normal closed NC 12v electric water valve NSF AC DC 9-24V auto drain valve stainless steel
Pls confirm the details below when you order them.
| No. | Item | Need to be confirmed |
| 1 | Valve thread | BSP or NPT female thread |
| 2 | Auto return | Normally closed or normally open |
CR202 Wiring Diagram ( 2 wires control and “Capacitors return” in case of the power is failure)
When SW is CLOSED, the valve OPEN, the actuator automatically power off after in place.
When SW is OPEN, the valve CLOSED, the actuator automatically power off after in place.
Suitable Working Voltage: AC/DC9-24V
Exceeding the working voltage is forbidde
