Quick Details
-
Weight:
-
3000 kg
-
Power:
-
30
-
Filling speed::
-
0-25m /min
-
Melting time::
-
30 minutes
-
discharge flow control::
-
flow adjustable
-
Fuel::
-
diesel
-
heat conduction oil volume::
-
50L
-
Overall size::
-
5500*2200*2200mm
-
Temperature control::
-
automatically controlled from normal temperature to 250℃
-
Generator::
-
30KW diesel generator.
-
Fuel Box volume::
-
100L
-
keyword:
-
crack sealing
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Sinoroader
-
Dimension(L*W*H):
-
5500*2200*2200
-
Weight:
-
3000 kg
-
Power:
-
30
-
Filling speed::
-
0-25m /min
-
Melting time::
-
30 minutes
-
discharge flow control::
-
flow adjustable
-
Fuel::
-
diesel
-
heat conduction oil volume::
-
50L
-
Overall size::
-
5500*2200*2200mm
-
Temperature control::
-
automatically controlled from normal temperature to 250℃
-
Generator::
-
30KW diesel generator.
-
Fuel Box volume::
-
100L
-
keyword:
-
crack sealing
Product Overview

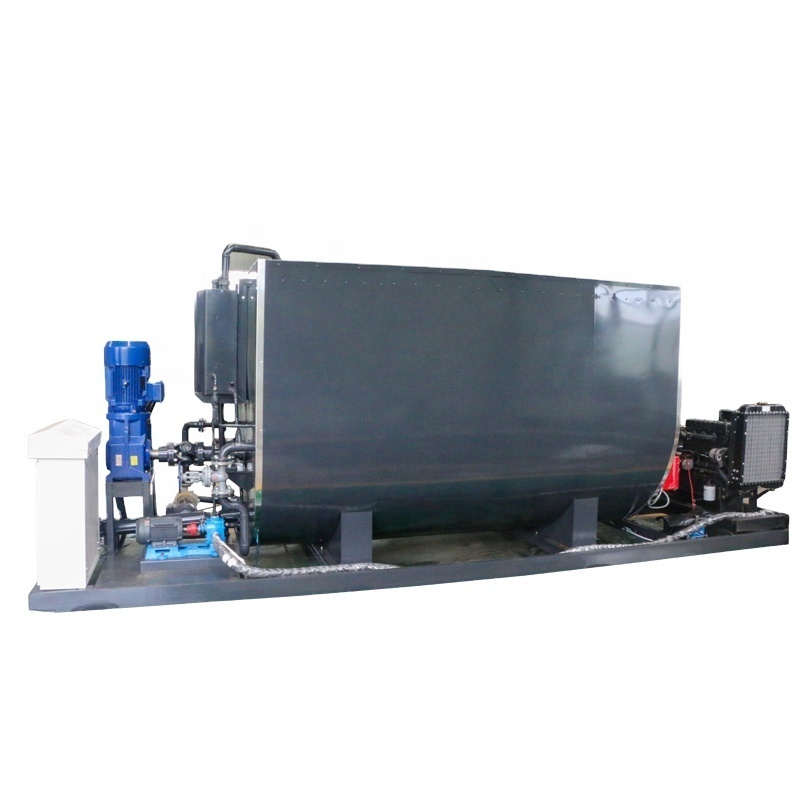

Potting asphalt melting machine
Sinoroader developed a new type of melting plant for modified asphalt，which is convenient for mobile construction. The plant uses diesel as the fuel and power source, economically and environmental-friendly; Adopting heat pipe mode to melt asphalt quickly, short preparation time, asphalt block will not stick agitator; Using double-heating mode of hot conduction oil and fire tube,heating quickly. The discharging mode is mainly artesian;The flow of pumping discharge is adjustable.Handheld electric heating soft pipe is attached for filling seam.Agitator can mix both sides, mixing evenly. High melting efficiency.Diesel burner with automatic electronic ignition, heating temperature automatic control, sensor automatic temperature detection, energy saving, to ensure long-term work.
FEATURES AT A GLANCE
1. Adopt first-class diesel generator, stable quality, stable power supply.
2. Adopt imported environmental burning machine, heating fast, stable and reliable.
3. The bottom plate is equipped with thermal tubing, which can drain the asphalt as far as possible.
4. The heating temperature is adjustable and the temperature is automatically controlled.
5. High pressure special gear pump conveying filling material, wear resistance.
6. Hand-held discharging pipe filling seam, easy to seam, human mechanical handle design.
7. The stirring motor is started by frequency conversion to reduce the impact on the generator. 8. The filling material flow is
adjustable, suitable for various widths and shapes of gaps. 9 handle control pump positive and negative, easy to operate. The
filling pipe is electrically heated all the way, and there is no need to clean after the w
adjustable, suitable for various widths and shapes of gaps. 9 handle control pump positive and negative, easy to operate. The
filling pipe is electrically heated all the way, and there is no need to clean after the w
Left elevation
PRODUCT SPECIFICATIONS
|
Filling speed:
|
0-25m /min
|
|
Melting time:
|
30 minutes
|
|
discharge flow control:
|
flow adjustable
|
|
Fuel:
|
diesel
|
|
Heating mode:
|
imported diesel burner, indirect heating by heat conducting oil and direct heating by fire tube.
|
|
heat conduction oil volume:
|
50L
|
|
Overall size:
|
5500*2200*2200mm
|
|
Heating mode:
|
imported diesel burner, indirect heating by heat conducting oil and direct heating by fire tube.
|
|
Discharge pipe:
|
DN65 pipeline gravity; No cleaning 6 meters long electric heating hose
|
|
Mixing method:
|
electric
|
|
Materials:
|
modified asphalt, common asphalt and other materials
|
|
Circulation mode of heat conduction oil:
|
electric drive cycle.
|
|
Temperature control:
|
the whole circuit is automatically controlled from normal temperature to 250℃
|
|
Generator:
|
30KW diesel generator.
|
|
Asphalt pump:
|
reversible high pressure wear-resistant and anti-blocking gear pump
|
|
Fuel Box volume:
|
100L
|
Founded in 1997, Sinoroader has grown to become a leading provider of technological developments and has been a pioneer in its sector with its innovation departments and became the first China manufacturer of Sinoroader provides an unparalleled, single-source solution for all of their clients’ aggregate-based facilities. owadays,asphalt mixing plant, concrete mixing plant and road maintenance equipment produced by Sinoroader have been widely used in more than 120 countries and regions.
FAQ
Q1. Are you a manufacturer?
Yes, we have been in potting asphalt melt machine manufacturing and marketing for over 20 years.
Q2. What markets do your
potting asphalt melt machine
export to?
Europe, North & South America, South-East Asia,Africa, Oceanica, Middle East countries etc.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the your purpose,quantity etc. The more info. you provide, the more accurate model and price you will get.
Q4. Is it available to print our own brand on the machine?
Totally acceptable as you wish.We can produce according to your requirements,the size, color, materials, logo etc.
Q5. How can I get the price of your machine?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Q6. What is your after-sale machine?
12 month warranty.
Provision with relevant technical support.
Available spare parts after ordering.
