Quick Details
-
Brand Name:
-
AirT
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
Customized Combined Unit
-
Weight:
-
1000 kg
-
Operating temperature:
-
-70℃
-
Processing air volume M ³/ H:
-
15000~60000
-
Regenerative Method (Electricity) KW:
-
165~225
-
Dehumidification Space M ³:
-
750~5000
Quick Details
-
Applicable Industries:
-
Lithium battery new energy industry
-
Core Components:
-
compressor
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AirT
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
Customized Combined Unit
-
Weight:
-
1000 kg
-
Operating temperature:
-
-70℃
-
Processing air volume M ³/ H:
-
15000~60000
-
Regenerative Method (Electricity) KW:
-
165~225
-
Dehumidification Space M ³:
-
750~5000
|
Model
|
Processing air volume M ³/ H
|
Regenerative method (electricity) KW
|
Power specifications
V-Hz
|
Dehumidification space M ³
|
|
HRZ-20
|
2000-8000
|
22~30
|
380V 50HZ
|
100~650
|
|
HRZ-35
|
3500~14000
|
38~51
|
380V 50HZ
|
200~1150
|
|
HRZ-40
|
4000-16000
|
44~60
|
380V 50HZ
|
200~1350
|
|
HRZ-50
|
5000-20000
|
55~75
|
380V 50HZ
|
250~1650
|
|
HRZ-72
|
7200-29000
|
80-108
|
380V 50HZ
|
360~2400
|
|
HRZ-90
|
9000-35000
|
99~135
|
380V 50HZ
|
450~3000
|
|
HRZ-120
|
12000-48000
|
132~180
|
380V 50HZ
|
500~4000
|
|
HRZ-150
|
15000~60000
|
165~225
|
380V 50HZ
|
750~5000
|
|
HRZ-180
|
18000-72000
|
198~270
|
380V 50HZ
|
900-5000
|
|
HRZ-210
|
21000~80000
|
230~315
|
380V 50HZ
|
1000-7000
|
|
HRZ-240
|
24000-100000
|
260~350
|
380V 50HZ
|
1200-8000
|
|
HRZ-270
|
27000-120000
|
295~400
|
380V 50HZ
|
1350~9000
|
main parameter
description

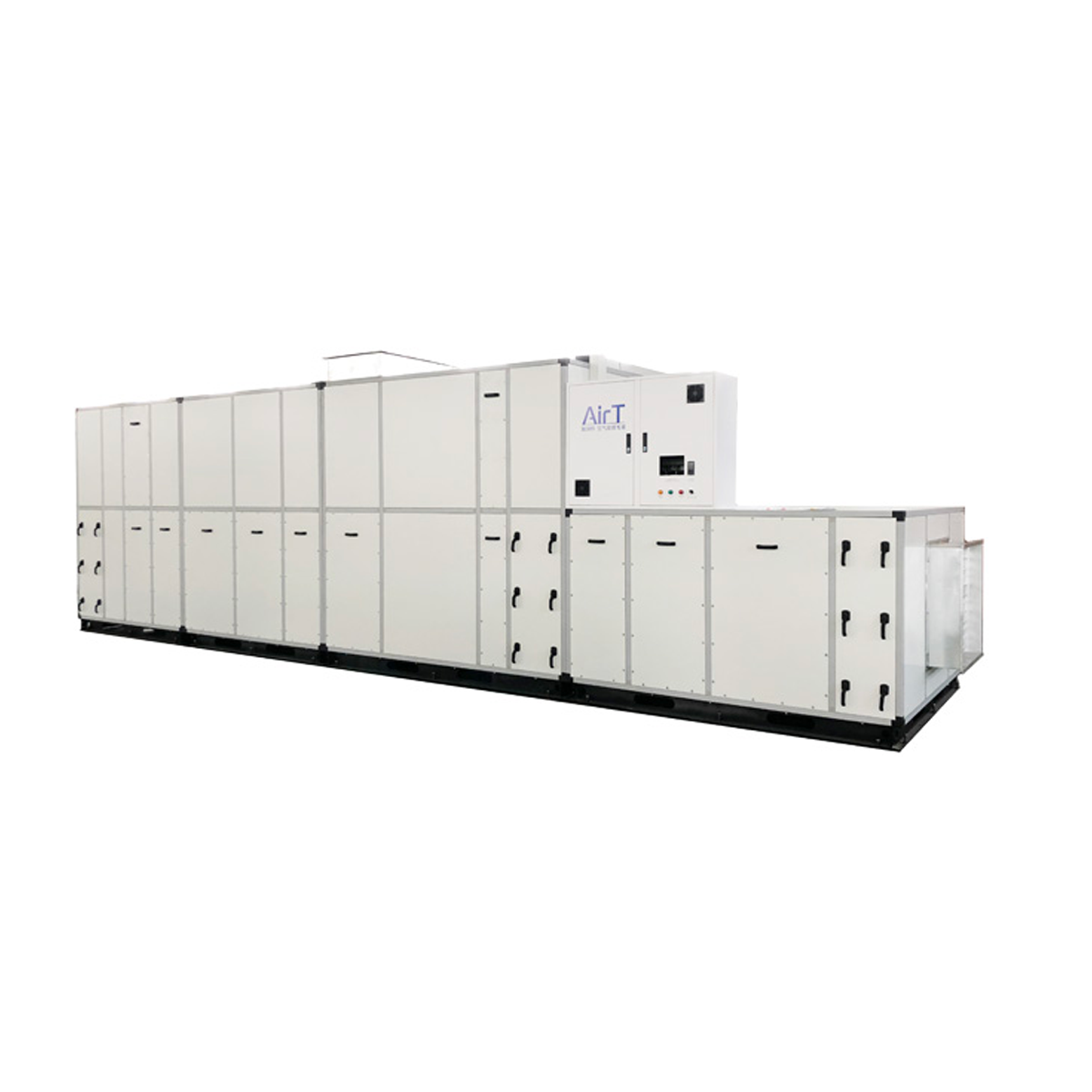

The dehumidifier adopts a medium to large combined rotary wheel adsorption technology with an insulated box structure, and the dehumidification air volume of the adsorption rotary wheel ranges from 2000 to 1200 meters ³/ H; The air supply volume of the unit can reach 80000 meters ³/ H; Mainly used in the lithium battery new energy industry, food industry, warehousing and logistics industry, its application field is the requirement of constant temperature and humidity environment (humidity requirement is between 5-40%).
Remarks:
1. Regenerative heating options include electricity, steam, heat transfer oil, etc;
2. Due to product upgrades or other reasons, there may be discrepancies with the actual product. Please refer to the actual product for accuracy.
The dehumidification wheel is divided into a treatment area and a regeneration area by a sealing system inside the dehumidification section. The dehumidification wheel rotates slowly at a certain speed, and the entire dehumidification is a continuous process. When the treatment air passes through the processing area of the runner, the water vapor in it is adsorbed by the hygroscopic medium in the runner. The water vapor undergoes phase change at the same time and releases latent heat. The runner also gradually becomes runner to evaporate, thereby restoring the dehumidification ability of the runner, at the same time, the saturated due to absorbing a certain amount of moisture.At this time, the treatment air becomes dry and hot air due to the reduction of its own moisture and the release of latent heat. At the same time, in the
regeneration area，the other air passes through the regeneration heater first， becomes high-temperature air and passes through the saturated runner after absorbing moisture, causing the adsorbed moisture in the regeneration air turns into humid air due to the evaporation of water, then, the humid air is discharged to the outdoors through the regeneration fan.
