- Product Details
- {{item.text}}
Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000-6500k, 3000~6500K
-
Support Dimmer:
-
yes
-
Input Voltage(V):
-
AC100-240V 100-277V 277-480V
-
Lamp Luminous Flux(lm):
-
20000~40000lm
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Abestlighting
-
Model Number:
-
A2102
-
Item Type:
-
linear high bay light
-
Beam angle:
-
60/90/120 Degree
-
PF:
-
PF>0.96
-
Installation:
-
Suspension or Ceiling-mounted or Wall Mounted
-
Power:
-
80w~300w available
-
LED driver:
-
Meanwell driver
-
Certification:
-
ISO, CE, ROHS, SAA, TUV, ENEC,UL,DLC
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
150
-
Lamp Body Material:
-
Aluminum
-
Application:
-
Warehouse, workshop, badminton court,gym lighting, Warehouse, Supermarket, Basement Parking Garage
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000-6500k, 3000~6500K
-
Support Dimmer:
-
yes
-
Input Voltage(V):
-
AC100-240V 100-277V 277-480V
-
Lamp Luminous Flux(lm):
-
20000~40000lm
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Abestlighting
-
Model Number:
-
A2102
-
Item Type:
-
linear high bay light
-
Beam angle:
-
60/90/120 Degree
-
PF:
-
PF>0.96
-
Installation:
-
Suspension or Ceiling-mounted or Wall Mounted
-
Power:
-
80w~300w available
-
LED driver:
-
Meanwell driver
-
Certification:
-
ISO, CE, ROHS, SAA, TUV, ENEC,UL,DLC

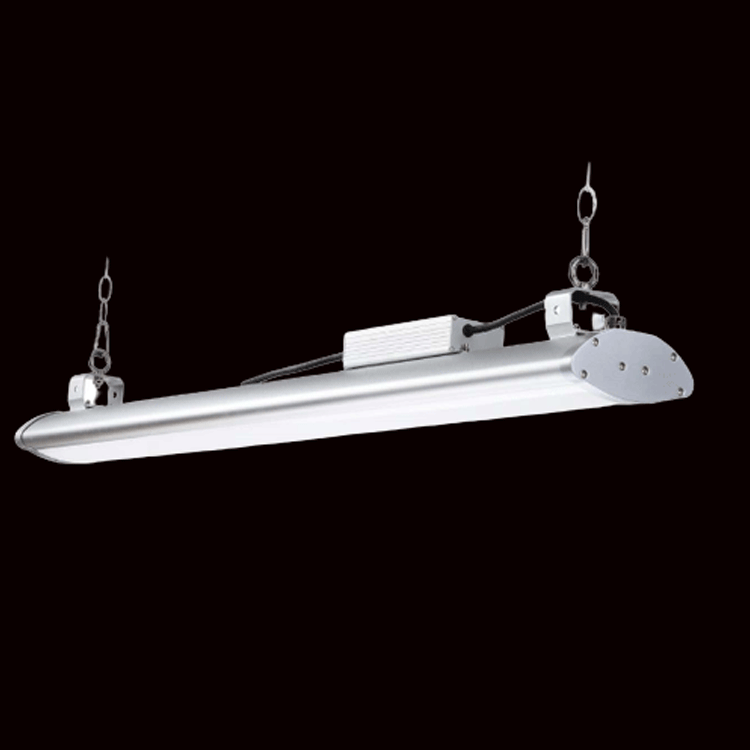

LED linear high bay light warehouse fixture
A2102 LED Linear High Bay light is made of aluminum profile 6063 with PC cover. It's good for heat dissipation. We have 2FT/3FT/4FT/5FT different sizes for your options. There is a wide range of wattage, 60w, 80w,100w, 120w, 150w, 200w, 250w and 300w. Of course, we provide OEM&ODM service to meet your various needs.
Our linear high bay light can be high efficiency from 120lm/W to 160lm/W.(120lm,130lm,140lm,150lm,160lm).
The high bay lights are suitable for indoor use. But it's IP65 waterproof. So they can be used in some wet places with high humidity and moisture.
All the led high bay lights are with 5 years' warranty.
| Certification | ENEC,TUV,SAA, IK10, IP66 | |||
| Dimension L*W*H |
600*133*56mm 1500*150*68mm |
900* 1 33 * 56 mm 1500*150*68mm |
1200* 1 33 * 56 mm 1500*150*68mm |
1500* 1 33 * 56 mm 1500*150*68mm |
| Power(W) | 80/100W | 100/120W | 150/200W | 200/250/300W |
| Input Voltage(V)-TUV SAA |
AC100-240V 50/60Hz
|
|||
| Input Voltage (V)-UL DLC | AC100-277V or AC277-480V 50/60Hz (Optional) | |||
| CRI(Ra) | >80 | |||
| CCT | 3000-6500K | |||
| Luminary EER (lm/w) | 140Lm/w ~160lm/w | |||
| Beam Angle | 120° | |||
| Function option-UL | 1-10V & Dali Dimming | |||
| Function option-TUV | 1-10V & Dali Dimming | Emergency (1,2,3hours) | Microwave Sensor | |||
| Installation | Suspension | Ceiling-mounted | Wall-mouted angle adjustable | |||
| Guarantee | 5 years warranty | |||
Details of LED linear high bay light
8° /15°/30°60°/90° reflector optional can be use in 10-25 meter height
0/1-10V Dimming, Zigbee/Dali dimming function options
IP65 Microwave sensor & dimmable control save more engry
Emergency Function can be provides immediate light in event of power outage
Installation Optional
The LED linear high bay light is widely used in Airport, Plant workshop, Parking Garages, Stadiums, Gymnasiums, Industrial & Warehouse, Recreation & Public Venues, badminton court, tennis court,etc.
