Quick Details
-
Weight (KG):
-
11 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Waiai
-
Voltage:
-
220v / 110V / 50Hz / 60HZ
-
Dimension(L*W*H):
-
427*340*168mm
-
Power (kW):
-
0.6 kW
-
Warranty of core components:
-
1 years
-
Product name:
-
ultrasonic extraction machine
-
Crushing capacity:
-
500-1200ml
-
Optional horn:
-
3,6,8,10,15/20/22/25/28(mm)
-
Single ultrasound time:
-
0.1-99.9S
-
Single gap time:
-
0.1-99,9s
-
Frequency Range:
-
20-25KHz
-
Random horn:
-
d6 (mm)
-
Temperature:
-
0-100℃
-
Function:
-
sterilization and Illumination
-
Data storage:
-
20 groups
Quick Details
-
Barrel Volume (L):
-
500ml H2O
-
Max. Loading Volume (L):
-
1.2 L
-
Max. Loading Capacity:
-
1200ml
-
Weight (KG):
-
11 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Waiai
-
Voltage:
-
220v / 110V / 50Hz / 60HZ
-
Dimension(L*W*H):
-
427*340*168mm
-
Power (kW):
-
0.6 kW
-
Warranty of core components:
-
1 years
-
Product name:
-
ultrasonic extraction machine
-
Crushing capacity:
-
500-1200ml
-
Optional horn:
-
3,6,8,10,15/20/22/25/28(mm)
-
Single ultrasound time:
-
0.1-99.9S
-
Single gap time:
-
0.1-99,9s
-
Frequency Range:
-
20-25KHz
-
Random horn:
-
d6 (mm)
-
Temperature:
-
0-100℃
-
Function:
-
sterilization and Illumination
-
Data storage:
-
20 groups
Specification

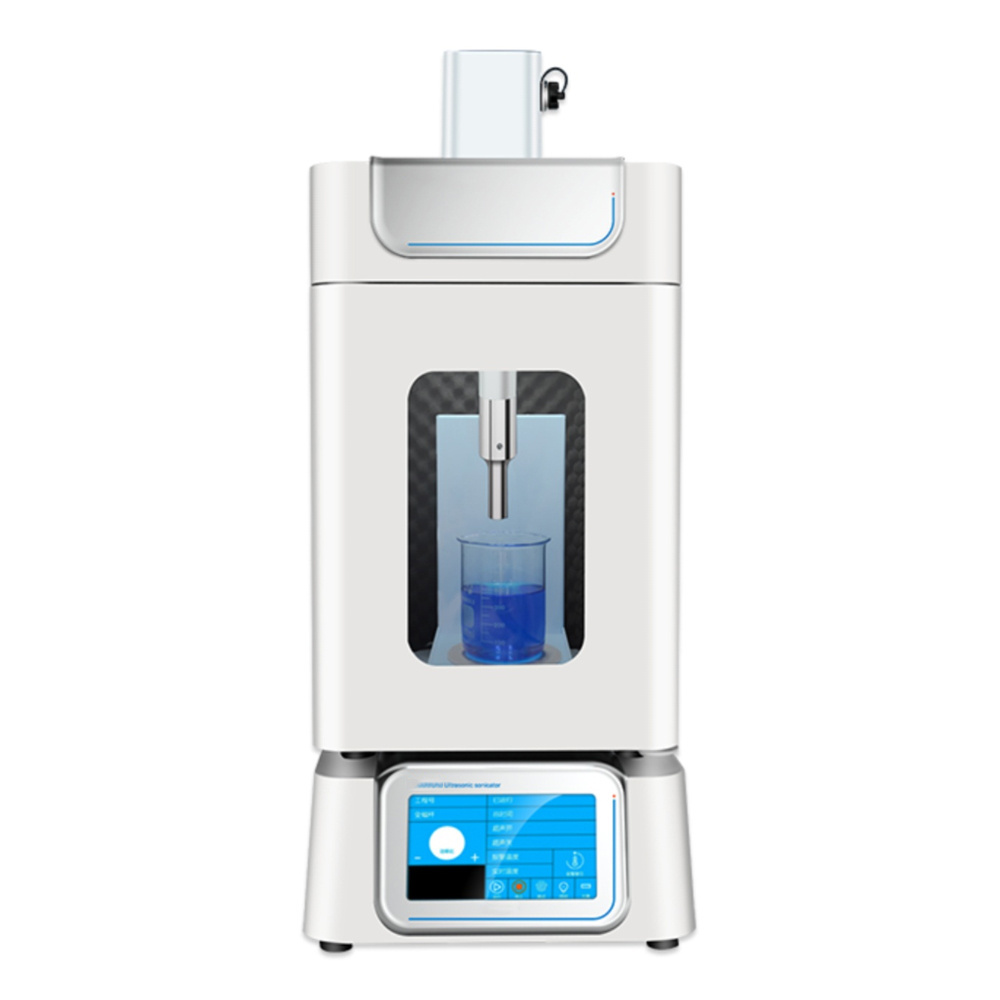

Touch Screen Ultrasonic Homogenizer Sonicator Processor Cell Disruptor Mixer Emulsification and Nanoparticle Dispersion(1800W，50mL-1200mL)
Intelligent ultrasonic homogenizer supply network control, and remote printing conforms to the modern humanized design concept. In order to improve the safety of the biological environment, this product adds ultraviolet sterilization function to reduce the risk of personnel infection and sample cross-contamination. lt can be used for the processing of samples of different volumes (corresponding models and probes can be selected according to different volumes), and is widely used in the cracking, emulsifcation, homogenization and crushing of samples in the fields of life sciences, pharmaceuticals and material chemistry.
ding emulsifying, and homogenizing solutions 、Reducing particle size of suspensions ,Dispersing suspensions, Disrupting cells, Catalyzing chemical reactions
|
model
|
650E
|
1000E
|
1200E
|
1800E
|
|||
|
power
|
650W continuously adjustable
|
1000W continuously adjustable
|
1200W continuously adjustable
|
1800W continuously adjustable
|
|||
|
Crushing capacity(need to be equipped with corresponding horn)
|
.1-500ml
|
0.1-700ml
|
1-1000ml
|
1-1200ml
|
|||
|
Optional horn
|
2, 3.6.8,10, 12(mm)
|
2,3,6,8,10,12,15(mm)
|
2,3,6,8,10,12,15,22/25(mm)
|
3,6,8,10,15/20/22/25/28(mm)
|
|||
|
Single ultrasound time
|
0.1-99.9S
|
|
|
|
|||
|
Single gap time
|
0.1-99,9s
|
|
|
|
|||
|
Total time (ultrasound + gap
|
1-99H59M59s
|
|
|
|
|||
|
Frequency Range
|
20-25KHz
|
|
|
|
|||
|
Temperature control range
|
0-100 degrees (optional low temperature constant temperature)
|
|
|
|
|||
|
Alarm function
|
Temperature, time, overload. No load, over temperature
|
|
|
|
|||
|
Random horn
|
d6 (mm)
|
d6 (mm)
|
d20 (mm)
|
d22 (mm)
|
|||
|
Display method
|
True color capacitive touch screen display
|
|
|
|
|||
|
Data storage
|
20 groups
|
|
|
|
|||
|
Power supply) (optional 110V)
|
220v / 110V / 50Hz / 60HZ
|
|
|
|
|||
|
Host net size
|
427*340*168mm
|
|
|
|
|||
|
Host Packing Size
|
500*400*320mm
|
|
|
|
|||
|
Soundproof box Size
|
320*320*520mm
|
|
|
|
|||
|
Soundprood box Packing Size
|
385*385*585mm
|
|
|
|
|||
|
Host Weight
|
11kg
|
12kg
|
15kg
|
16kg
|
|||
|
Soundprood box weight
|
13kg
|
13kg
|
13kg
|
13kg
|
|||
|
Updated functions
|
Ultrasonic power analog data waveform display function
|
|
|
|
|||
|
|
Ultrasonic time and pulse width data waveform display function
|
|
|
|
|||
|
Standard function a
|
High-brightness lighting or sterilization of soundproof box
|
|
|
|
|||
|
Standard function a
|
Soundproof box remote control electric lift
|
|
|
|
|||
