Quick Details
-
Voltage:
-
380V/220V
-
Disc Dia.:
-
None
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LONGXIANG
-
Model Number:
-
LX1
-
Warranty:
-
12 months
-
Product name:
-
Body Repair Equipment/Automotive paint both / car baking oven
-
Usage:
-
Equipment
-
Wall Panel:
-
50mm EPS
-
Lighting System:
-
LED Light
-
Color:
-
Client's Requirements
-
Filters:
-
Primary+Floor Filter
Quick Details
-
Power:
-
6KW
-
External Size:
-
8350*4000*3200mm
-
Internal Size:
-
6900*3900*2650mm
-
Voltage:
-
380V/220V
-
Disc Dia.:
-
None
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LONGXIANG
-
Model Number:
-
LX1
-
Warranty:
-
12 months
-
Product name:
-
Body Repair Equipment/Automotive paint both / car baking oven
-
Usage:
-
Equipment
-
Wall Panel:
-
50mm EPS
-
Lighting System:
-
LED Light
-
Color:
-
Client's Requirements
-
Filters:
-
Primary+Floor Filter
Product Overview

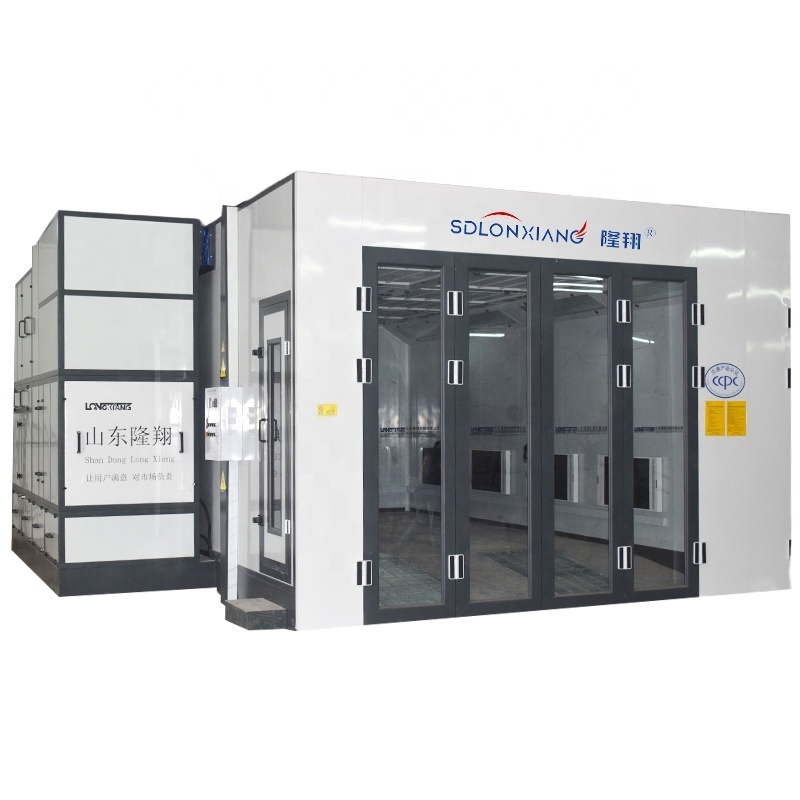

Shandong Longxiang Car Spray Booth
This car spray booth power and performance in a safe and environmental way to help you work in the tightest applications. Its ability to improve the working environment makes it an excellent machine for indoor car spraying and baking work.
FEATURES AT A GLANCE
Red
Orange
Blue
Products Description
|
Model
|
LX1
|
|
||
|
Outside size
|
8350×4000×3200mm(L×W×H)
|
|
||
|
Inside size
|
6900×3900×2650mm(L×W×H)
|
|
||
|
Entrance door
|
3 folds,3000x2650 mm(W×H), bending steel door,cast aluminum hinge, tempered glass window
|
|
||
|
Emergency door
|
650*2000mm(W*H),with pressure lock，with glass window，with step
|
|
||
|
Main System
|
|
|
||
|
Cabin system
|
Wall panel
|
-Sandwich style EPS
50mm
,0.376mm thick steel, anti-flame and heat-insulation.
-High quality galvanized steel roof panel. |
||
|
|
Basement
|
Optional
|
||
|
Ventilation system
|
Inlet fan
|
Optional
|
||
|
|
Outlet fan
|
1 set European-style exhaust air fan,the power is
5.5KW
,air capacity:18000m³/h.
|
||
|
|
Cabinet setting type
|
-Exhaust air from back downside,adopt powder quadrate steel frame , strong and beautiful .
-Cabinet for the fan*1unit ,910mm height air duct *2units, -Elbow: 90°*1 unit |
||
|
|
Airflow speed
|
On load 0.3m/s,ventilation rate:280time/h
|
||
|
Heating system
|
Optional : Movable infrared baking lamps(3 lamps or 6 lamps)
|
|
||
|
Lighting system
|
Ceiling lights
|
8 units*4 pieces=
32
pieces*
16W
，LED lighting
|
||
|
|
Side lights
|
Optional
|
||
|
Filtering system
|
Primary filter
|
Grade G2 plate type , filtering rate＞83%
|
||
|
|
Floor filter
|
Multi-layer fiberglass filter,filtering rate＞70%
|
||
|
Control system
|
Control panel
|
Intelligent control system
|
||
|
|
Function
|
Lighting,painting, Overload, lack of phase protection
|
||
|
Voltage/Frequency
|
380V,50HZ,3 phase
|
|
||
|
Total power
|
6KW
|
|
||
