Joyebikes High Quality 48V 1000W Bafang BBSHD 1000W Middle Drive Motor Ebike Conversion Kit

Joyebikes High Quality 48V 1000W Bafang BBSHD 1000W Middle Drive Motor Ebike Conversion Kit

FOB Reference Price: Get Latest Price

≥1 Sets

US $590

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: BBSHD /BBS03

Brand Name:: BAFANG

Product name:: BAFANG BBSHD 48v 1000w mid drive motor e-bike kit

Model:: BBSHD

Power:: 48v 52v 1000w

Display:: C961/C965/850C/750C/500C/DPC-18

Crank Arms:: One Pair Bafang Crank Arms

Chain Wheel:: 42T/44T/46T

Bracket bottom:: 68-73mm /100mm/120MM

Torque:: 120 N.M

Weight:: 8.6 kgs

Warranty:: one year

Quick Details

Voltage:: 48V

Style:: Two rounds

Place of Origin:: Jiangsu, China

Model Number:: BBSHD /BBS03

Brand Name:: BAFANG

Product name:: BAFANG BBSHD 48v 1000w mid drive motor e-bike kit

Model:: BBSHD

Power:: 48v 52v 1000w

Display:: C961/C965/850C/750C/500C/DPC-18

Crank Arms:: One Pair Bafang Crank Arms

Chain Wheel:: 42T/44T/46T

Bracket bottom:: 68-73mm /100mm/120MM

Torque:: 120 N.M

Weight:: 8.6 kgs

Warranty:: one year

Product Description

Joyebikes EU USA Chinese warehouse 48V-52V 1000W BAFANG BBSHD mid drive motor e bike kit

With an integrated speed sensor, this mid-drive motor, which is compatible with a 68-120mm bottom bracket, has a rated power of 1000W, a reduction ratio of 1: 21.9 and a maximum torque of 160 N.m, will provide the rider with great explosive force when starting the system. Highly strong and efficient, this motor greatly enhances riding joy and is suitable for mountain bikes and sand bikes which are the favorites of riders who love challenges as well as transport bikes.

Make your bike Electric !

We will ship from europe or usa warehouse directly .if no ready stocks , we will ship from our chinese warehouse . so you will receive the kits in 3-10 days after payment done .

We provide : Technical Support /Warranty service / instructions .

Specification

Motor	Bafang bbshd 48-52v 1000w 68mm /100 /120 mm Mid drive DC motor 1. Brushless direct mid motor 2. Rated speed= 45 KM/h. 3. Integrated 48V 30a sine wave controller and speed sensor 4. Load≤120KGS 5. With waterproof cable for throttle,PAS and 1 to 4 cables 7. Available for light cable(rear or front light)
Display	C18/961/SW102/850C/P860C/750C/750C with bluetooth
Controller	48v 30a sine wave integrated controller
Sensor	speed sensor
Throttle	130X throttle throttle
Ebrake	Bafang Brake levers with cut-off power function
Chain wheel	46T chain wheel ( 42T /44T is OPTIONAL )
Cranks	One pair cranks as standard
Main Cable	1-4 Main cale
Accessories	bafang standard sets

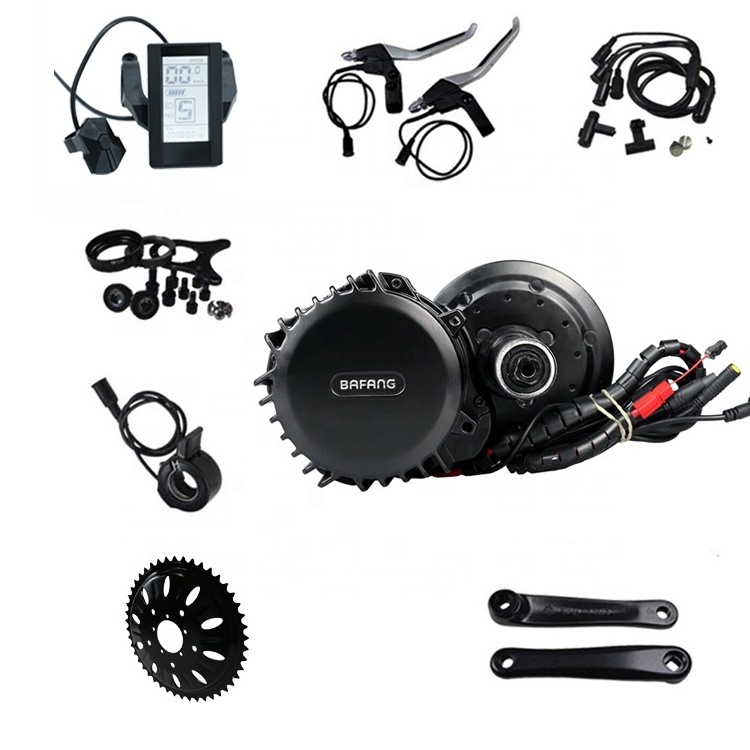

Details Images

bafang BBShd 48v /52v 1000w (68mm 100mm 120mm)

C hain wheel 46T (42T/44T for choosing )

130X throttle throttle

Bafang Brake levers with cut-off power function

EB-BUS Main cable & speed sensor

Screws and nuts

Optional Displays for Bafang ebike kits :

Optional Parts for Bafang mid motor kits:

Hydralic brake sensor : The ebrake sensors allow you to convert the brake levers that you already have on your bike into ebrake levers that are able to cut off power to the motor when engaged. The ebrake sensors includes a pair of red switches and magnets and are installed directly onto your existing brakes and plug into the Bafang Wiring Harness. When the magnet is near the ebrake sensor, the brake is inactive, allowing the motor to run.

Gear sensor : The Gear Sensor attaches to your shifting cable and momentarily cuts off power to your motor while shifting. The
gear sensor helps reduce wear and tear on your drivetrain components and chain.

please contact us if you need these spare parts .
