Quick Details
-
Packaging Type:
-
Vacuum Package, Carton Box.
-
Application:
-
Smart Industry, Smart Medical
-
Type:
-
Camera Module
-
Series:
-
Endoscope Camera Module
-
Features:
-
Mini Endoscope Camera Module
-
Mounting Type:
-
usb
-
Description:
-
Endoscope Camera Module
-
Sensor:
-
OV2740
-
View Angle:
-
DFOV140
-
F.NO:
-
5.0
-
Focusing Range:
-
8-80mm
-
Focus Length:
-
1.29mm
-
Distortion:
-
<-53%
-
Interface type:
-
USB
-
DSP:
-
USB 2.0 UVC
-
Certification:
-
RoHS
-
Warranty:
-
10 years
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ThinkFull
-
Model Number:
-
SF-C2016USB-D5.0-L1500-D140-Glass V1.0
-
Packaging Type:
-
Vacuum Package, Carton Box.
-
Application:
-
Smart Industry, Smart Medical
-
Type:
-
Camera Module
-
Series:
-
Endoscope Camera Module
-
Features:
-
Mini Endoscope Camera Module
-
Mounting Type:
-
usb
-
Description:
-
Endoscope Camera Module
-
Sensor:
-
OV2740
-
View Angle:
-
DFOV140
-
F.NO:
-
5.0
-
Focusing Range:
-
8-80mm
-
Focus Length:
-
1.29mm
-
Distortion:
-
<-53%
-
Interface type:
-
USB
-
DSP:
-
USB 2.0 UVC
-
Certification:
-
RoHS
-
Warranty:
-
10 years

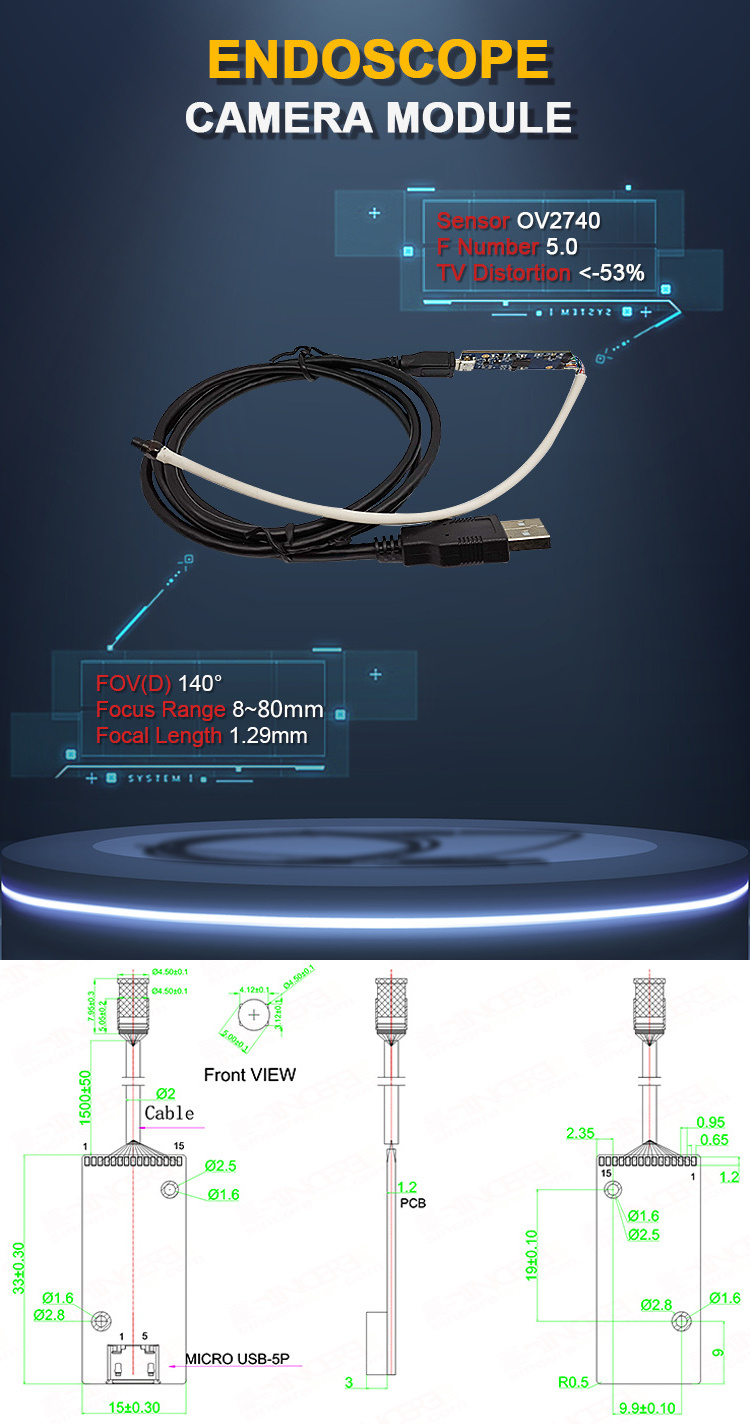

Details Images
Main Features & Advantage
1. Top Quality & advanced technology:
Our Factory is a good and professional manufacturer of CMOS Camera Module and endoscope camera module products. We provide high quality and compatible CMOS endoscopic Camera Module products and for different requests and wishes from clients.
2). Professional producing different pixel camera module:
CIF, VGA, 2 million,3 million, 5 million, 8 million, 12 million, 16 million, 21 million,22 million, 23 million,24 million 48
million, 54 million, 64 million, 1 billion pixel camera module. We also could do according to customer's specific requirements.

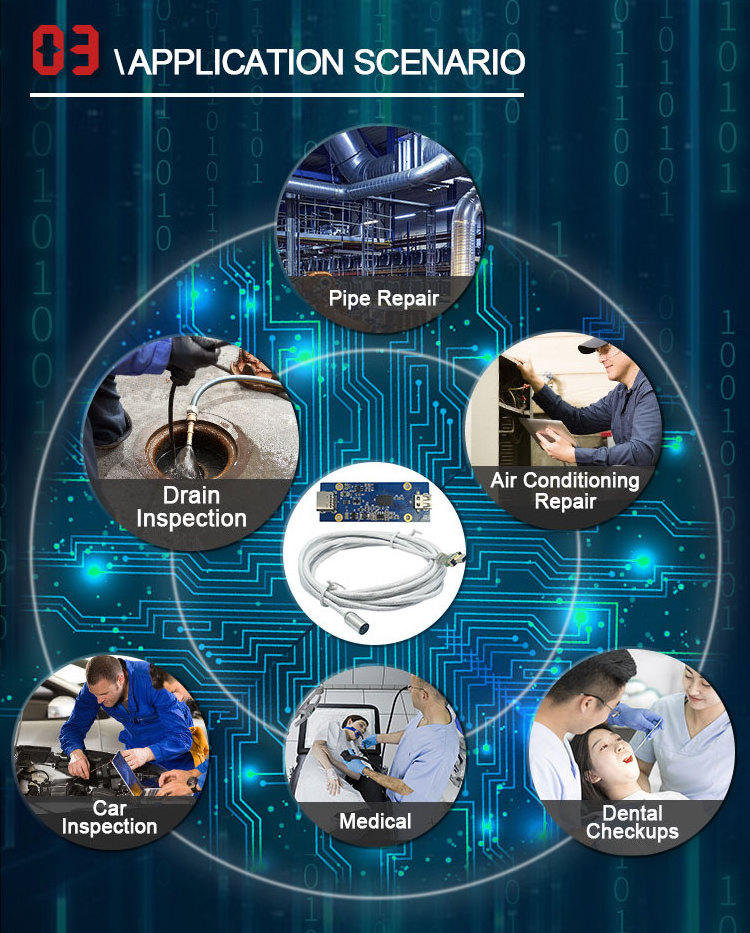

3. Widely Application :
Mobile phone, Artificial Intelligence,uav drone,smart home,Iris reorganization,Gesture Recognition,Machine Vision,3D printer
camera solution,2D Barcode Recognition,Optical Imaging System,Infrared Image for Industry,Digital Still Camera,
DV, PDA/Handheld, smart toy, PC Camera, Security Camera, Automotive Camera, etc.
4.Different Sensor: OVT sensor, Aptina sensor, Samsung sensor, Panasonic sensor, SONY sensor and some sensors which are made in China. Also we have SMT lines, CSP lines and COB lines.
2). Professional producing different pixel camera module:
CIF, VGA, 2 million,3 million, 5 million, 8 million, 12 million, 16 million, 21 million,22 million, 23 million,24 million 48
million, 54 million, 64 million, 1 billion pixel camera module. We also could do according to customer's specific requirements.
3. Widely Application :
Mobile phone, Artificial Intelligence,uav drone,smart home,Iris reorganization,Gesture Recognition,Machine Vision,3D printer
camera solution,2D Barcode Recognition,Optical Imaging System,Infrared Image for Industry,Digital Still Camera,
DV, PDA/Handheld, smart toy, PC Camera, Security Camera, Automotive Camera, etc.
4.Different Sensor: OVT sensor, Aptina sensor, Samsung sensor, Panasonic sensor, SONY sensor and some sensors which are made in China. Also we have SMT lines, CSP lines and COB lines.
|
Back connector
|
Micro USB
|
Lens Material
|
IP67 degree
|
|
|
|
Focusing Range
|
8-80mm
|
LED
|
4pcs LED optional
|
|
|
|
Diameter
|
5mm
|
FOV(D)
|
140 degree
|
|
|
|
Waterproof
|
IP67
|
Sensor
|
OV2740
|
|
|
