The uncoiler/decoiler is mainly used with punching machine, shearing machine, laser cutting machine and cold bending forming
machine to realize the automatic production of coils.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
3KW
-
Weight (KG):
-
1000
-
Thickness of material:
-
1-6.0mm
-
Uncoiler weight:
-
5-7 tons
-
Feeder:
-
70-1000mm
-
Speed:
-
16m/min
-
Feed roller:
-
2 sets
-
Straightening roller:
-
upper 5 lower 4
-
ID of coil:
-
508
-
OD of coil:
-
1600
-
Feed direction:
-
left or right
-
Uncoiler expantion:
-
hydraulic type
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LMS
-
Voltage:
-
220V
-
Power:
-
3KW
-
Weight (KG):
-
1000
-
Thickness of material:
-
1-6.0mm
-
Uncoiler weight:
-
5-7 tons
-
Feeder:
-
70-1000mm
-
Speed:
-
16m/min
-
Feed roller:
-
2 sets
-
Straightening roller:
-
upper 5 lower 4
-
ID of coil:
-
508
-
OD of coil:
-
1600
-
Feed direction:
-
left or right
-
Uncoiler expantion:
-
hydraulic type
Product Overview

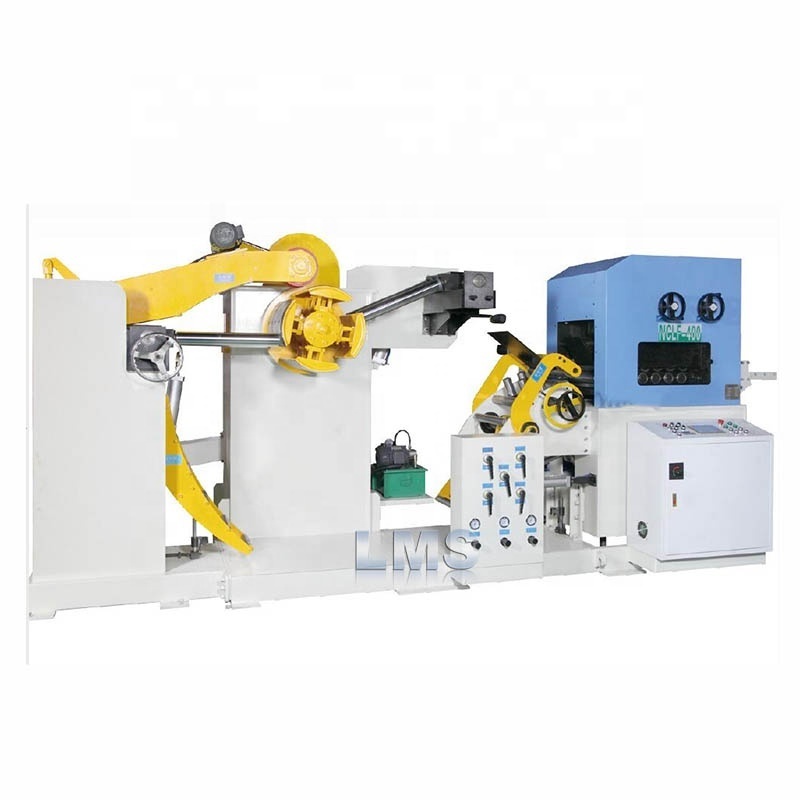

3 in 1 hydraulic uncoiler straightener feeder machine for metal coil
Thickness:1-6.0mm Width: 400-1000mm
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Thickness of coil
|
1-6.0mm
|
|
2
|
Width of coil
|
70-1000mm
|
|
3
|
Weight of coil
|
5-7tons
|
|
4
|
Feed roller
|
2 sets
|
|
5
|
Straightening roller
|
upper 5 lower 4
|
|
6
|
Uncoiling expansion
|
hydraulic type
|
|
7
|
Production speed
|
16m/min
|
|
8
|
Power supply
|
220V 3 phases
|
PRODUCT CONFIGURATION
3 in 1 uncoiler straightener feeder
Blanking line
We also offer punching machine and customized molds to produce hardware,metal components.
Hydraulic uncoiler
Hydraulic expansion
mandrel for fast fit inner diameter of metal coils.
Uncoiler stays same speed with whole line ,adjusted by inverter.
Motorize press arm and support arm to protect coil from rebounding.
Straightener and feeder
Upper 5 lower 4 straightener rollers , which gap thickness can be adjusted by handwheels.
Precise gauge readable to 0.1mm.
Colorful touch screen, button and remote auto control.
SALES AND SERVICE NETWORK
FAQ
Q1：Where is your factrory?
A1：In Guangdong
Q2：How much is this?
A2：Please leave your requirements.
Q3：How is the quality?
A3：Many domestic and foreign factory use our machine.
A3：Many domestic and foreign factory use our machine.
Q4：How to order?
A4：Please sent us inquiry.
A4：Please sent us inquiry.
Q5：How long to finish machine?
A5：2 months.
A5：2 months.
