Quick Details
-
Brand Name:
-
Adracing
-
Car Model:
-
For Toyota 3GR 3GRFE 2TRFE 1MZFE
-
Application:
-
For Toyota 3GR 3GRFE 2TRFE 1MZFE Conrods
-
Material:
-
40CrNiMoA(4340) Forged Steel
-
Beam Style:
-
H-beam
-
Bolts:
-
3/8"
-
Bolt Torque:
-
75N*m
-
Heat Treatment:
-
HRC33-38
-
Balance weight:
-
+/- 1 gram in set
-
Logo printing:
-
Available
-
Item name:
-
for Toyota 3GR Connecting Rod
-
Product name:
-
conrods for Toyota 3GR 3GRFE 2TRFE 1MZFE
Quick Details
-
OE NO.:
-
3GR 3GRFE 2TRFE 1MZFE
-
Warranty:
-
1 Years
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Adracing
-
Car Model:
-
For Toyota 3GR 3GRFE 2TRFE 1MZFE
-
Application:
-
For Toyota 3GR 3GRFE 2TRFE 1MZFE Conrods
-
Material:
-
40CrNiMoA(4340) Forged Steel
-
Beam Style:
-
H-beam
-
Bolts:
-
3/8"
-
Bolt Torque:
-
75N*m
-
Heat Treatment:
-
HRC33-38
-
Balance weight:
-
+/- 1 gram in set
-
Logo printing:
-
Available
-
Item name:
-
for Toyota 3GR Connecting Rod
-
Product name:
-
conrods for Toyota 3GR 3GRFE 2TRFE 1MZFE

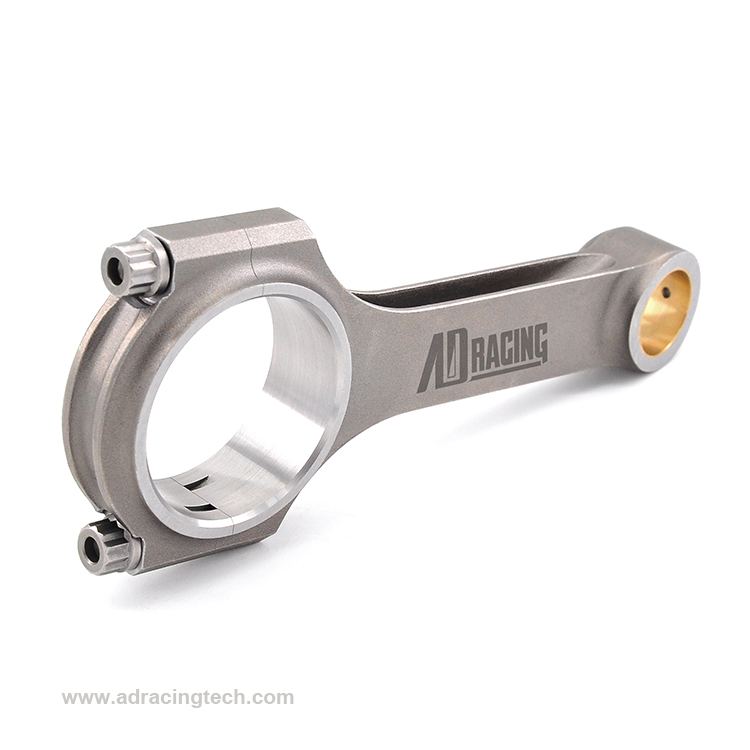

Adracing Custom Performance Racing 4340 Forged 3GR FE Connecting Rod For Toyota 2TR Engine 1MZ FE Conrod Con Rods
Adracing Custom Performance Racing 4340 Forged 3GR FE Connecting Rod For Toyota 2TR Engine 1MZ FE Conrod Con Rods
Adracing Custom Performance Racing 4340 Forged 3GR FE Connecting Rod For Toyota 2TR Engine 1MZ FE Conrod Con Rods
| Brand:Adracing | |
| Center to Center Length: | 147.5mm |
| Big End Bore Diameter: | 56.01mm |
| Big End Width: | 20.83mm |
| Small End Bore Diameter: | 22mm |
| Small End Width: | 20.83mm |
| Bolts size : | 3/8" 5/16" 7/16" |
| Beam Style: | H-beam |
For Toyota 3GR 3GRFE Conrods Features
| Material | Forged 4340 Steel |
| Copper bush Material | QAL10-3-1.5 |
| Quantity | 1 Set of 4 Pieces |
| Connecting Rod Finish | Shot-peened |
| Weight Matched Set | +/- 1gram in set |
| logo printing | Available |
| Custom design | Available |
| Warranty | 1 Year |
All size and design can be customized
What 's your a dvantages?
- 4340(40CrNiMoA)Aircraft quality steel
- High Durability and High Strength
- Processed by CNC machine
- Lighweight,Higher RPMs and High Horse Power
- Shot peening can relieve stress and remove tension. so that improve fatigue and increase use life
- Producing blank rods with fluorescent magnetic particle inspection
- Degaussing treatment is to get rid of tension caused by machining. Because Rods is easy to break because of the concentrated tension
1, Shot peening can relieve stress and remove tension. so that improve fatigue and increase use life .Smooth surface make the rods have a longer working life.
2,Our rods processed by CNC machine.Detail effect as picture here .
3,We can provide Adracing connecting rod bolts size 3/8 ,5/16 ,7/16
| Brand | Adracing |
| Material: | Forged 4340 steel |
| Stud Diameter: | 3/8 " |
| Under Head Lengh: | 1.600 |
| Torque: | 75N*M |
| Tensile: | 228455PSI |
We provide neutral packaging with Pearl cotton box to protect rods from damaging.
