Quick Details
-
Brand Name:
-
Lewin
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
3000*800*2100mm
-
Weight:
-
940 KG, 940kg
-
Name:
-

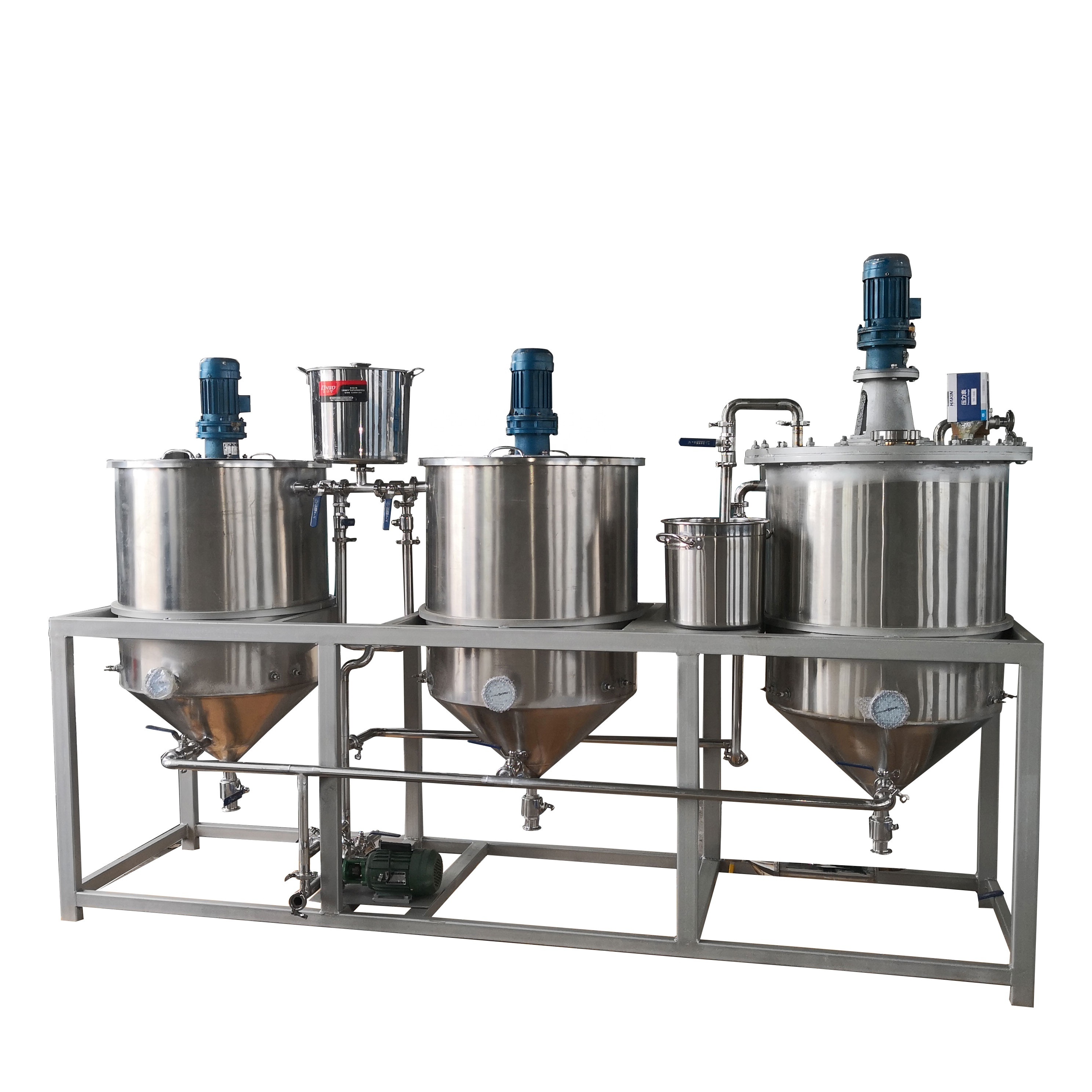

Cooking oil refinery equipment groundnut oil palm oil refining machine
-
Model:
-
LW-3
-
Tank Diameter:
-
700 mm
-
One tank capacity:
-
300kg oil
-
Working time:
-
8hours
-
Working one time capacity:
-
300kg oil
-
Main Power:
-
2.25Kw
-
Vacuum pump power:
-
0.81 Kw
-
Dimension:
-
3000*800*2100mm
Quick Details
-
Max Capacity:
-
500kg/day
-
Production Capacity:
-
98%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lewin
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
3000*800*2100mm
-
Weight:
-
940 KG, 940kg
-
Name:
-
Cooking oil refinery equipment groundnut oil palm oil refining machine
-
Model:
-
LW-3
-
Tank Diameter:
-
700 mm
-
One tank capacity:
-
300kg oil
-
Working time:
-
8hours
-
Working one time capacity:
-
300kg oil
-
Main Power:
-
2.25Kw
-
Vacuum pump power:
-
0.81 Kw
-
Dimension:
-
3000*800*2100mm
Product Description
Technoological process
:
crude oil→degumming&dephosphorization → deacidification → drying → decolorization → deodorization → defatting → dewaxing → finished oil.
Process:
1. Degumming Section: Some impurity, such as Phospholipid, gum, and protein, can be oil when there is no water, but once there is water in oil, these impurities can be dissolved into water. So, in the degumming section, we use the hot water to wash crude oil.
2. Neutralizing Section: Crude oil contains much free fatty acid, which is harmful to health. Free fatty acid can have the reaction with caustic soda, during the reaction, it can be saponified and becomes soapstock Then small soapstock pellets will sink and becomes sediment and be pumped out. After neutralizing most of the free fatty acid will be removed out.
3. Decolorization Section: Most of the crude oil has deep color because of the pigments, such as carotene, xanthophyll, etc. We use bleaching earth to remove pigments because bleaching earth has strong adsorption capacity. Then pump oil into plate filter to remove bleaching earth then pigment also will be removed out along with bleaching earth, then oil will be clean and transparent.
4. Deodorizing Section: Pure oil has no smell, but different crude oil has their special smell because of some volatile matters, for example, the oxide for ketones, aldehydes, hydrocarbons. In the deodorizing section, we deliver steam into oil continuously and make sure steam and oil fully contacted under high temperature and pressure, then volatile matters can be removed out along with the steam.
Main Features
1.The small refined oil equipment adopts food grade stainless steel material and is polished to meet the food machinery standards.
2. Simple design, refined appearance, improve customer satisfaction.
3. The operation data is all displayed by the instrument, the operation is simple, and the operation is safe; .
4. Small refined oil equipment can achieve the dephosphorization, de-alkali, dehydration function of the oil, according to the needs of users can also perform constant temperature decolorization.
Paramater:
Edible oil refinery machine is used to process crude oil. The Oil Refining Machine is used for removing the impurities of oil, such as fatty acid, phosphatide, pigment. After the process of oil refining machine, the refined oil reaches the edible oil standard
2,Wide range of capacity for more choices of our custome
3,Wide application of oil press for more cost-effective solution
| Model | LW-3 |
| Tank Diameter | 700 mm |
| One tank capacity | 300kg oil |
| Working time | 8hours |
| Working one time capacity | 300kg oil |
| Main Power | 2.25Kw |
| Vacuum pump power | 0.81 Kw |
| Dimension |
3000*800*2100mm |
| Weight | 940kg |
Detailed Images
The refining equipment processing capacity is related to the oil refining process and the oil grade, the refining tank processing cycle is related to the raw oil quality and the finished oil grade requirements.
Refining tank processing capacity 200-250L/tank, dehydration tank and refining tank are matched, decolorization tank filtration capacity 300L/tank, with time about 4-5 hours.
(1) If the crude oil quality is good, after heating, hydration, sedimentation, dehydration and other processes, about 4 hours to deal with one tank.
(2) If the crude oil quality is bad and the finished oil grade needs high requirement, after heating, hydration, sedimentation, alkali refining, washing, dehydration and other processes, about 12-24 hours for processing one tank.
Advantage:
(1) Simple design, low consumption and light weight, easy to handle and move.
(2) Easy for operating, low labor intensity and high economical profit
