Quick Details
-
Brand Name:
-
Beelee
-
Model Number:
-
BL-JGHG-H2.5X14-3
-
Max. Current:
-
0.5A
-
Operate Range:
-
15-40AT
-
Release Range:
-
5 (min)AT
-
Bounce Time (typ.):
-
1.5ms
-
Switched Power (max):
-
5W
-
Switched Voltage DC (max):
-
175V
-
Certification:
-
RoHS
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
175V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Beelee
-
Model Number:
-
BL-JGHG-H2.5X14-3
-
Max. Current:
-
0.5A
-
Operate Range:
-
15-40AT
-
Release Range:
-
5 (min)AT
-
Bounce Time (typ.):
-
1.5ms
-
Switched Power (max):
-
5W
-
Switched Voltage DC (max):
-
175V
-
Certification:
-
RoHS

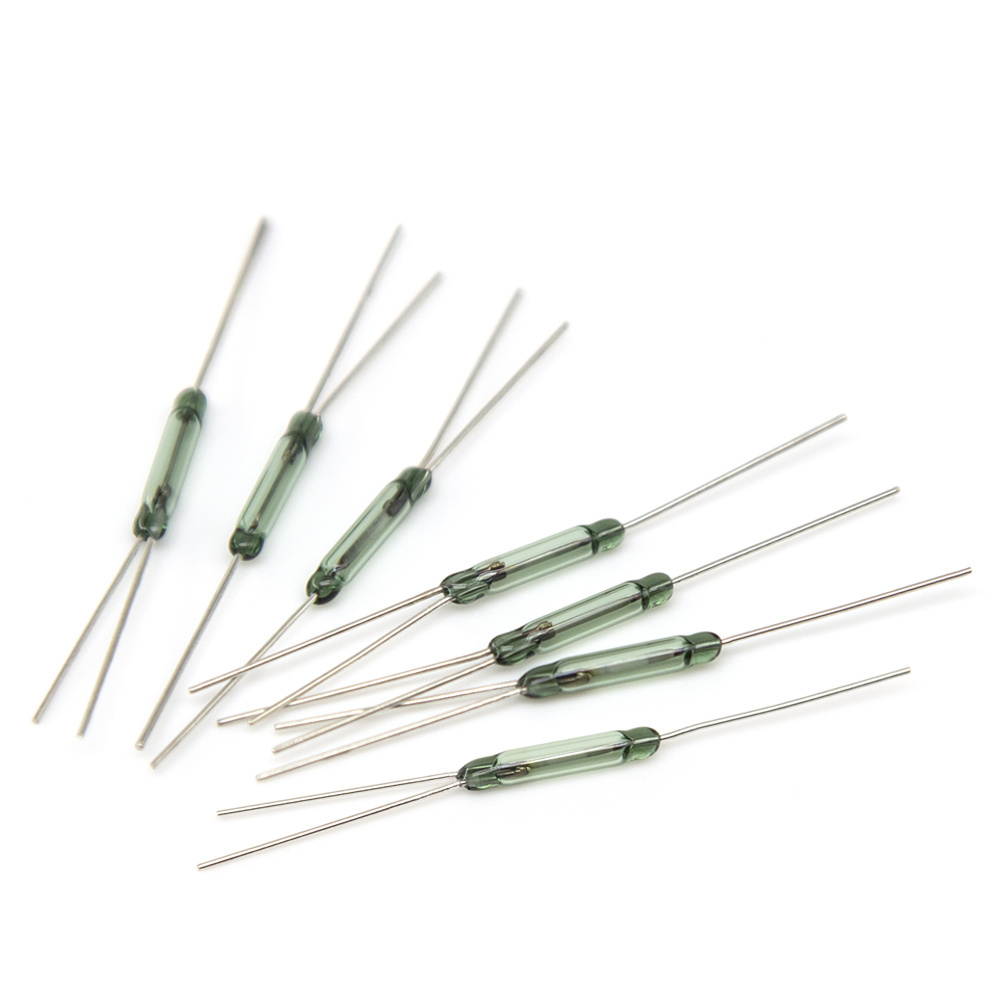

01.Micro changeover reed switch hermetically sealed in gas fulled envelope.Single-pole, double-throw
(SPDT) type, normally open and normally closed contact.
02.The switch may be actuated by an electromagnet, a permanent magnet or a combination of both.The
device is intended for use in sensors, relays, pulse counters or similar devices.
| Operating Characteristics | |||
| Parameters | Test Conditions | Units | BL-JGHG-H2.5X14-3 |
| Operate Range | AT | 15-40 | |
| Release Range | AT | 5 (min) | |
| Operate Time - including Bounce (typ.) | ms | 1.0 | |
| Bounce Time (typ.) | ms | 1.5 | |
| Release Time (max) | µs | 1.0 | |
| Resonant Frequency (typ.) | Hz | TBD | |
| Electrical Characteristics | |||
| Switched Power (max) | W | 5 | |
| Switched Voltage DC (max) | V | 175 | |
| Switched Voltage AC, RMS value (max) | V | 125 | |
| Switched Current DC (max) | Ma | 400 | |
| Switched Current AC, RMS value (max) | 280 | ||
| Carry Current DC (max) | A | 0.5 | |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
4.Q:How many types of switches do you have,and what about your quality?
A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
