1. Login vending system
2. Meter number registration
3. Customer information registration
4. Price Setting
5. Open Account
6. Vending/Topping up meters
7. Get the Token
8. Input Token to meter with keypad
9. Recharging successfully
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Stron
-
Model Number:
-
STW36-B
-
Standrad:
-
STS
-
Protection class::
-
IP68
-
Battery Life:
-
8 years
-
Display::
-
LCD
-
Accuracy:
-
Class C
-
Water pressure:
-
16MPA
-
System:
-
Vending&AMI system
-
Charge Mode:
-
Step price Supports
-
Protect:
-
Anti-Tamper Magnetic field protection
-
Certification:
-
STS Certificate,ISO9001,ISO14001
Quick Details
-
Warranty:
-
2 years
-
Type:
-
Multi-jet meters, Prepaid water meters
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Stron
-
Model Number:
-
STW36-B
-
Standrad:
-
STS
-
Protection class::
-
IP68
-
Battery Life:
-
8 years
-
Display::
-
LCD
-
Accuracy:
-
Class C
-
Water pressure:
-
16MPA
-
System:
-
Vending&AMI system
-
Charge Mode:
-
Step price Supports
-
Protect:
-
Anti-Tamper Magnetic field protection
-
Certification:
-
STS Certificate,ISO9001,ISO14001
Product Description
These water meters are STS standard, Token type prepaid meter. It has high quality with IP68 waterproof, allowing to operate in harsh environments.The Multi-Jet construction make the meter running Normally in muddy water never stuck. It has low pressure loss(<0.06Mpa), and the accuracy always better after 10years.
Prepaid Keypad Type Plastic Water Meter
Prepaid Keypad Type Brass Water Meter

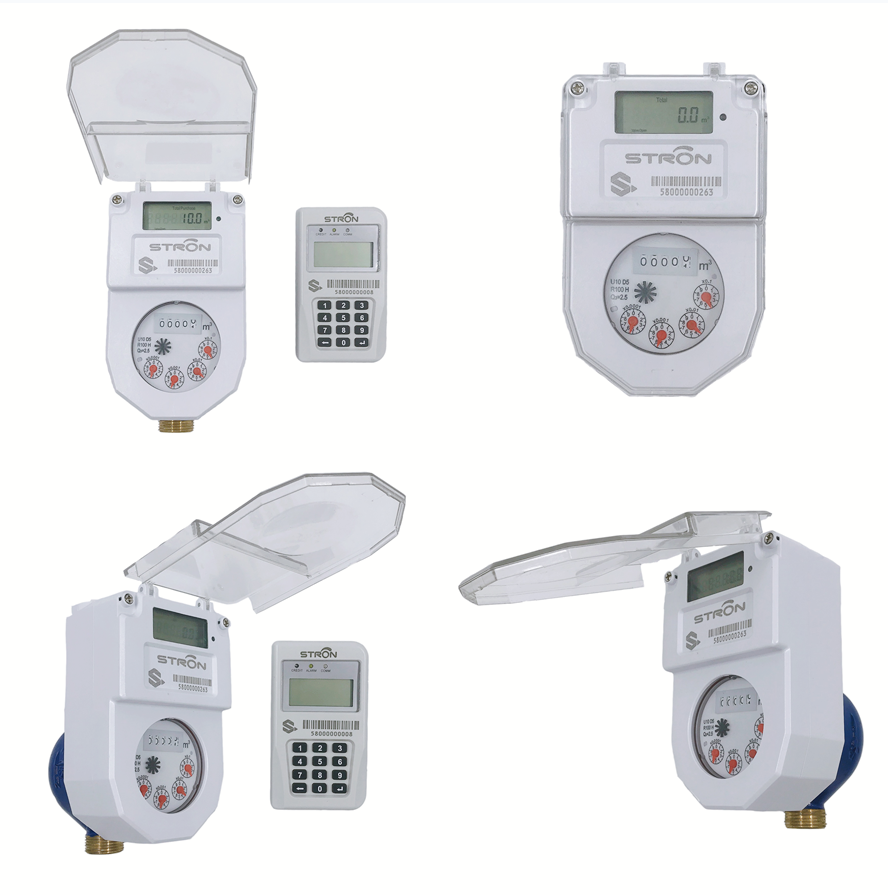

Prepaid Split Keypad Type Brass Water Meter+CIU
Prepaid Keypad Type Brass Water Meter+CIU
Specifications
|
Function
|
Details
|
|
Prepayment
|
STS Standard, recharge by input 20digits TOKEN
|
|
Low credit alarm
|
Alarm value can be set by inputting corresponding TOKEN
|
|
Prepaid and post-paid switch
|
Meter can be switch to prepaid mode or post-paid mode
|
|
Non-return valve
|
Non-return valve inside for preventing back-flow
|
|
Anti-tamper
|
Meter will automatically close the valve after detection of magnetic field and open cover event
|
|
Step Tariff
|
Step Tariff can be set by inputting corresponding TOKEN
|
|
Overdraft Collection
|
Non- Revenue gas (Overdraft) can be collected day by day or
month by month |
|
Communication
|
The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request
|
|
Information Inquiry
|
Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code
|
Strong Point
Metrological Parameters of different size
|
Size
|
|
DN15mm 1/2"
|
DN20mm 3/4"
|
DN25mm 1"
|
|
|
Overload flow rate Q4
|
|
3.13
|
5
|
7.875
|
|
|
Permanent l flow rate Q3
|
|
2.5
|
4
|
6.3
|
|
|
Transitional flow rate Q2
|
|
0.04
|
0.064
|
0.1
|
|
|
Minimum flow rate Q1
|
|
0.025
|
0.04
|
0.063
|
|
|
Ratio ”R” Q3/Q1
|
|
100
|
100
|
100
|
|
|
Maximum working pressure
|
|
16Bar
|
16Bar
|
16Bar
|
|
|
Maximum pressure loss
|
|
0.6Bar
|
0.6Bar
|
0.6Bar
|
|
|
Maximum reading
|
|
99999
|
99999
|
99999
|
|
|
Max temperature
|
|
50℃
|
50℃
|
50℃
|
|
|
Error
|
Q1≦Q≦Q2
|
5%
|
5%
|
5%
|
|
|
|
Q2≦Q≦Q4
|
2%
|
2%
|
2%
|
|
Meter Dimensions
|
Size
|
DN15 1/2"
|
DN20 3/4"
|
DN25 1"
|
|
Length(L)
|
165/190
|
190
|
225/260
|
|
Width(W)
|
99
|
99
|
103
|
|
Height(H)
|
104
|
106
|
114
|
|
Connecting Thread
|
G3/4B
|
G1B
|
G1-1/4B
|
Vending Process
Operation of vending software
Option 1: Vending at local sales point
Option 2: Vending with the third part APP/mobile payment /billing system with API
API:
Application Program Interface, which is the agreement connecting the third party APP and our Stronpay vending software.
