Quick Details
-
Place of Origin:
-
Guangdong, China
-
Item:
-
Antenna Adapter for Starlink Antenna
-
Adapter Material:
-
Aluminium alloy
-
Bolt/Nut Material:
-
Metal Alloy
-
Upper O.D.:
-
1.5 in/38 mm
-
Lower O.D.:
-
1.35 in/34.4 mm
-
Cable internal clearance:
-
0.87 in/22 mm
-
Overall length:
-
5.12 in/130 mm
-
Fastening screws:
-
M6 x 55 mm - use M10 size spanner
-
Safety hole diameter:
-
0.24 in/6 mm
-
Package Include:
-
1x Antenna adapter kits, 1x Stainless Steel Antenna Mount
Quick Details
-
Type:
-
Antenna Adapter
-
Brand Name:
-
Superbat
-
Model Number:
-
TG-XL01+DB1-2172-ZD+RF32204x4+HZ-34
-
Place of Origin:
-
Guangdong, China
-
Item:
-
Antenna Adapter for Starlink Antenna
-
Adapter Material:
-
Aluminium alloy
-
Bolt/Nut Material:
-
Metal Alloy
-
Upper O.D.:
-
1.5 in/38 mm
-
Lower O.D.:
-
1.35 in/34.4 mm
-
Cable internal clearance:
-
0.87 in/22 mm
-
Overall length:
-
5.12 in/130 mm
-
Fastening screws:
-
M6 x 55 mm - use M10 size spanner
-
Safety hole diameter:
-
0.24 in/6 mm
-
Package Include:
-
1x Antenna adapter kits, 1x Stainless Steel Antenna Mount
Products Description
|
Brand Name:
|
SUPERBAT
|
|
Product Name:
|
Antenna adapter specially designed for Starlink Satellite Dish V2 Antenna
|
|
Adapter material:
|
Aluminium alloy
|
|
Bolt/Nut Material:
|
Metal Alloy
|
|
Upper O.D.:
|
1.5 in/38 mm
|
|
Lower O.D.:
|
1.35 in/34.4 mm
|
|
Cable internal clearance:
|
0.87 in/22 mm
|
|
Overall length
:
|
5.12 in/130 mm
|
|
Fastening screws:
|
M6 x 55 mm - use M10 size spanner
|
|
Safety hole diameter:
|
0.24 in/6 mm
|
|
Package Include:
|
1x Antenna adapter kits, 1x Stainless Steel Antenna Mount
|
|
Warranty
|
12 Months Warranty
|
|
Product Certificates
|
CE ; RoHs ; FCC
|
Specification
Antenna adapter specially designed for Starlink Satellite Dish V2 Antenna
Adapter material: Aluminium alloy
Bolt/Nut Material: Metal Alloy
Upper O.D.: 1.5 in/38 mm
Lower O.D.: 1.35 in/34.4 mm
Cable internal clearance: 0.87 in/22 mm
Overall length: 5.12 in/130 mm
Fastening screws: M6 x 55 mm - use M10 size spanner
Safety hole diameter 0.24 in/6 mm
The Adjustable Base Mount is made of high-strength 316 stainless steel, waterproof and rust-proof, sturdy and durable.
Standard marine antenna threads for direct mounting.
Dual axis heavy duty ratchet mounting bracket for inclined or horizontal surface mounting.
Dimensions Base 65*92 mm
Vertical height from base to thread: 110 mm
Internal diameter of screw hole approx: 6.5mm.
Suitable for all antennas with 1" - 14 threads
Screws: Length: 1.2 inches/30 mm
Bolt: Length: 1.96 inches/50 mm
Nut: Diameter: 0.38 inches/9.8 mm
Package Includes - 1x Antenna adapter kits, 1x Stainless Steel Antenna Mount You can choose the screws according to your actual situation. (Screws are made of 316 stainless steel).

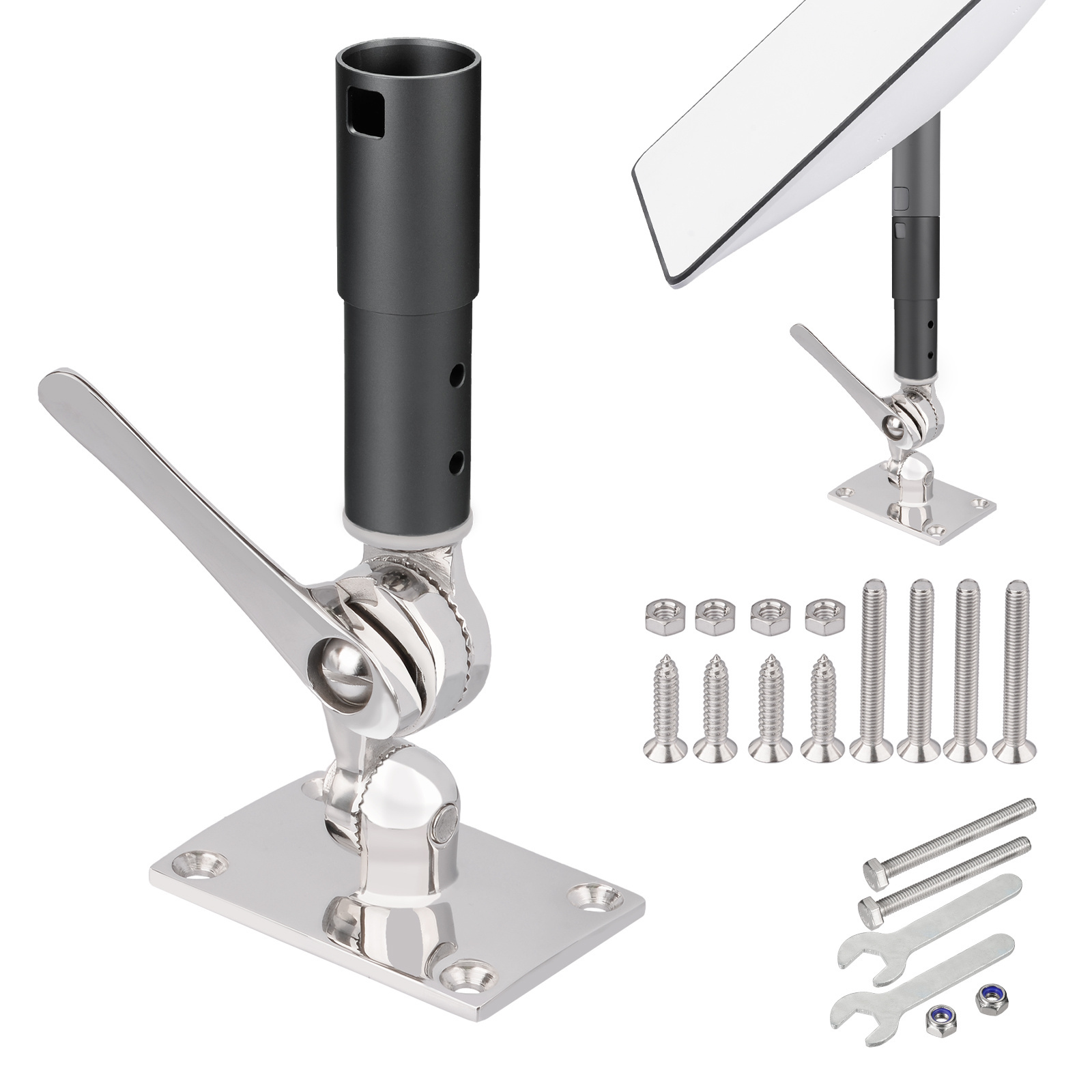

Starlink adapter is specially designed to seamlessly integrate with the Starlink Satellite Dish V2 Antenna, ensuring optimal performance and reliability.
Precision Machining: The adapter is made of high-quality aluminum alloy, hard oxidised surface, not easy to scratch, and built-in Anti-rotation rib;the Clamp base is made of 316 stainless steel for excellent protection against rust and corrosion.
Easy Installation: With multiple mounting options including threaded or sleeved compatibility. The ratchet can be adjusted in angle.Standard marine 25mm diameter threads with M6 size self-tapping screws and screw nuts allow for easy installation of antennas with 1" - 14 threads for quick and easy installation.
Versatile: Suitable for a variety of installation scenarios, can be marine, automotive, it provides a versatile solution for your outdoor communication needs.
