Functions: Drilling holes on five sided one time passing.
High precision and smooth operation
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
2400*2200*1600mm
-
Warranty:
-
One Year
-
Weight (KG):
-
2000 KG
-
Power (kW):
-
7.5
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Main Motor:
-
3HP
-
Application:
-
5 sides boring one time passing
-
Hinge boring:
-
Available
-
Vertical Boring spindle:
-
7 X +6 Y + hinge drilling
-
Main motor rotatiing:
-
18000rpm
-
Tools Diameter:
-
6mm, 8mm (other size available)
-
Router (collect type):
-
Er32
-
Boring head power:
-
2.0kw, 4000prm
-
Min.width of workpiece:
-
50mm
-
Certification:
-
ISO9001
Quick Details
-
Motor Type:
-
Servo Motor
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WEHO
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
2400*2200*1600mm
-
Warranty:
-
One Year
-
Weight (KG):
-
2000 KG
-
Power (kW):
-
7.5
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Main Motor:
-
3HP
-
Application:
-
5 sides boring one time passing
-
Hinge boring:
-
Available
-
Vertical Boring spindle:
-
7 X +6 Y + hinge drilling
-
Main motor rotatiing:
-
18000rpm
-
Tools Diameter:
-
6mm, 8mm (other size available)
-
Router (collect type):
-
Er32
-
Boring head power:
-
2.0kw, 4000prm
-
Min.width of workpiece:
-
50mm
-
Certification:
-
ISO9001

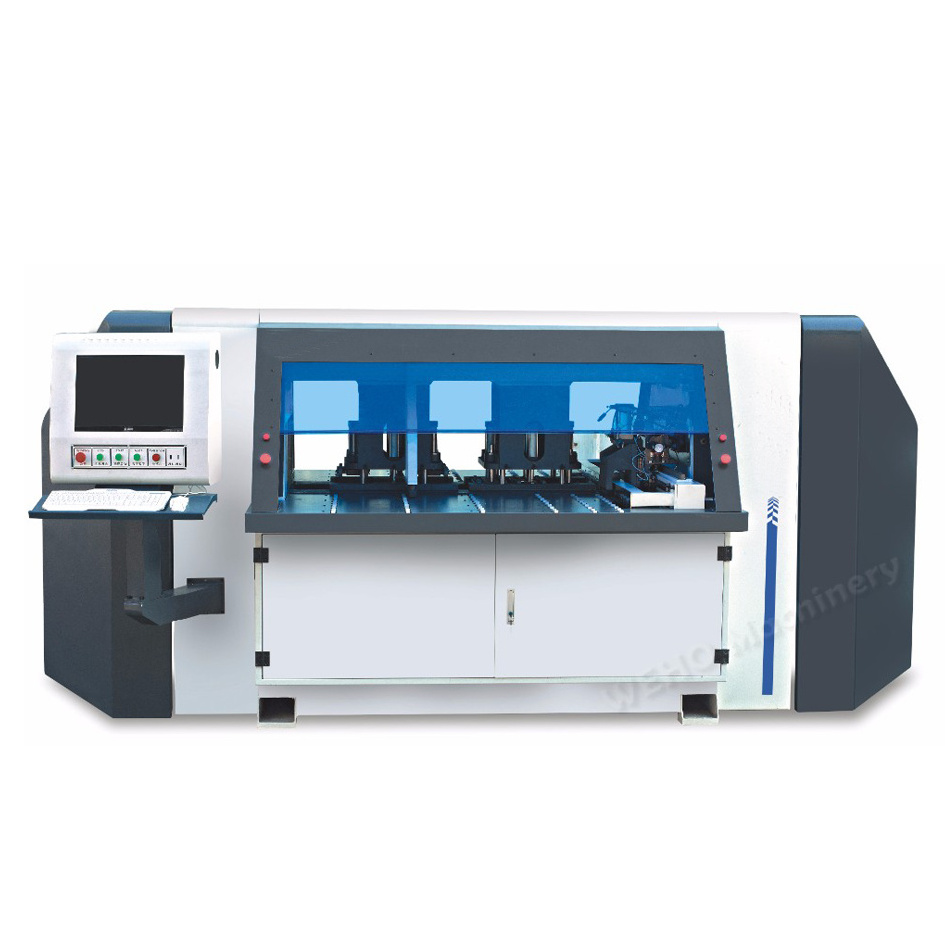

CNC plywood 5 side dowel wood carving drilling cabinet door making machine
Boring holes from 5 sides of wood panel, four sides holes boring and bottom face boring holes, boring position set from cnc program, control system is Taiwai SYNTEC, working high efficient and convient for operation.
|
SPECIFICATIONS FOR
CNC wood boring machine
|
|
|
|
|||
|
CNC wood boring machine
working speed
|
X axis max moving speed
|
m/min
|
70
|
|||
|
|
Y axis max moving speed
|
m/min
|
70
|
|||
|
|
D axis max moving speed
|
m/min
|
30
|
|||
|
CNC wood boring machine working size
|
Minimum panel width
|
mm
|
60
|
|||
|
|
Max panel width
|
mm
|
1000
|
|||
|
|
Effective panel width
|
mm
|
800
|
|||
|
CNC wood boring machine working length
|
Minimum panel length
|
mm
|
300
|
|||
|
|
Max thickness
|
mm
|
50
|
|||
|
|
min thickness
|
mm
|
10
|
|||
Dowel cnc wood boring machine
|
Packaging
|
|
|
|
Size
|
2400 (L) * 1200 (W) *1800 (D)
|
|
|
Weight
|
4.3 Tc
|
|
|
Packaging Details
|
The normal package is frilm(Size: 3800L*2200W*2100H).
|
|
|
Packaging
|
|
|
|
Size
|
3800 (L) * 2200 (W) * 2100 (D)
|
|
|
Weight
|
2.0T
|
|
|
Packaging Details
|
The optional package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
