Quick Details
-
Lamp Body Material:
-
Aluminum
-
Lamp Luminous Flux(lm):
-
51000
-
Working Temperature(℃):
-
-25 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
R2T
-
Model Number:
-
R2T-288V2+-240W
-
Wattage:
-
240w
-
Luminous Efficacy(μmol/J):
-
2.8
-
Light Output(μmol/s):
-
2111.8
-
Emitting Color:
-
Red+white
-
Er(W/m2):
-
10.973
-
Chips:
-
Samsung LM301B plus XPE660nm
-
Cover Range:
-
4*2ft
-
CRI (Ra>):
-
80
-
Actual power:
-
265w
-
Size:
-
590*200*20mm
-
warranty:
-
2years
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
180
-
Support Dimmer:
-
Yes
-
Application:
-
BLOOM, VEG, full cycle
-
Lamp Body Material:
-
Aluminum
-
Lamp Luminous Flux(lm):
-
51000
-
Working Temperature(℃):
-
-25 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
R2T
-
Model Number:
-
R2T-288V2+-240W
-
Wattage:
-
240w
-
Luminous Efficacy(μmol/J):
-
2.8
-
Light Output(μmol/s):
-
2111.8
-
Emitting Color:
-
Red+white
-
Er(W/m2):
-
10.973
-
Chips:
-
Samsung LM301B plus XPE660nm
-
Cover Range:
-
4*2ft
-
CRI (Ra>):
-
80
-
Actual power:
-
265w
-
Size:
-
590*200*20mm
-
warranty:
-
2years
New Full spectrum 288V2 Quantum panel Samsung LM301B top bin and LH351H or XPE 660 730nm IR led grow light bar

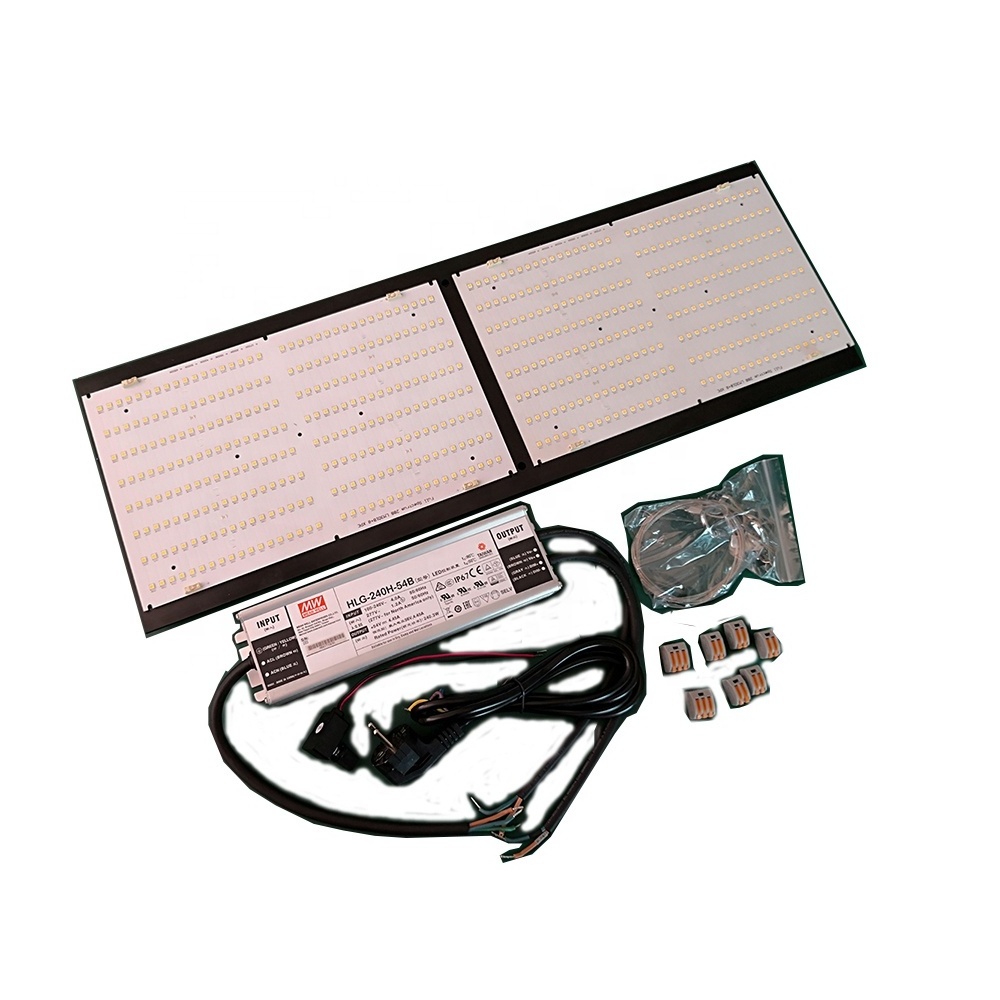

Product include:
2pcs QP288+8 Board
1pcs 590*205*19.5mm heatink
1set Hinger
1pcs Meanwell 240H-54b driver
1pcs black and red small potentiometer
1pcs 1.5m US/UK/EU/AU cable
2pcs 3ways Wago easyway connectors
1pcs 2way quickly connector
1pcs 3way quickly connector
Specifications of products
1.Isolated standards isolated driver which is safety for everyone;
2.Full spectrum distribute most nutrient lights from vegetative growth ,flowering and fruit-bearing;
3.Samsung LM301B RA:80, CCT option: 2700k/3000k/4000k/5000k/6500k
Cree XPE660nm;
4.Customize wattages,chips ratio,logo,package available.
|
Initiator: |
Russell |
Date: |
201 9 - 7 - 17 |
|
Project Name: |
240 W LED boards |
New Project Code: |
R2T-288 led boards |
|
Function Request |
|||
|
Electronic Requirement): |
2in 1 288V2+ comob kit,Single Baord Sepc 173.6*285.8*2mm, HASL, 1oz, 2.0w/m.k,288pcs Samsung301B ,8in parallel 38 in series add 4in parallel 2in series XPE660nm chips, 46.8~58V/2000mA(Max), |
||
|
Optic Requirement: |
Single boards: 288 pcs chips, S amsung LM301B ,3000Kevin,RA:80,SK ,16 in parallel 18 in series 4pcs single pin molex connectors plus 8pcs Cree XPE 660nm, |
||
|
Mechanical & Outline Request |
|||
|
Circuit Board Requirement: |
N.Layer: |
Single side LAYER |
|
|
substrate: |
Aluminum |
||
|
Board thickness: |
2. 0mm |
||
|
Copper thickness: |
1oz |
||
|
Finishing: |
HASL |
||
|
Solder Mask: |
White |
||
|
silkscreen: |
Black |
||
|
Panel |
N o request |
||
|
Special Requirement |
2.0w/m.K thermal cond u c t ivity |
||
|
Silkscreen Design: |
Black words |
||
|
Location hole: |
Size: |
M3* 8 |
|
|
location |
N/A |
||
|
Others |
|
||
QP288 V2+ with Samsung LM301B SK top bin chips plus Cree 660nm
QP288 V2+ Samsung LM301B Top bin with or without Cree XPE 660nm
Testing Data for 3000K Mix +8pcs XPE 660nm chips
Spectrum
Power :600W testing distance: 12inch
Power :240W testing distance: 14inch
Power :240W testing distance: 16inch
Power :240W testing distance: 18inch
Power :240W testing distance: 20inch
Power :240W testing distance: 22inch
Power :240W testing distance: 24inch
Effectivity of Special Wavelength
Why and when need grow light
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
