Quick Details
-
Marketing Type:
-
Hot Product
-
Application:
-
Warehouse,workshop,plant,etc.
-
Rated Lifting Moment:
-
30-200kn
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
AICRANE
-
Weight (KG):
-
10000 kg
-
product name:
-
RTG rubber tyre container 40 ton 50 ton gantry crane for sale
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
color:
-
as your requirement
-
electrical machine:
-
Siemens or other famous brand
-
low-voltage protection:
-
include
-
weight overload protection device:
-
include
-
polyurethane material buffer:
-
include
-
votage:
-
380v 50Hz 3-phase
-
control mode:
-
ground/cabin
-
ISO9001:2000::
-
pass
Quick Details
-
Rated Loading Capacity:
-
45 Ton, 50 Ton, 30 Ton, 40 Ton
-
Max. Lifting Height:
-
6,9m or as your requirement
-
Span:
-
12-30m
-
Marketing Type:
-
Hot Product
-
Application:
-
Warehouse,workshop,plant,etc.
-
Rated Lifting Moment:
-
30-200kn
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
AICRANE
-
Weight (KG):
-
10000 kg
-
product name:
-
RTG rubber tyre container 40 ton 50 ton gantry crane for sale
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
color:
-
as your requirement
-
electrical machine:
-
Siemens or other famous brand
-
low-voltage protection:
-
include
-
weight overload protection device:
-
include
-
polyurethane material buffer:
-
include
-
votage:
-
380v 50Hz 3-phase
-
control mode:
-
ground/cabin
-
ISO9001:2000::
-
pass
Product Description

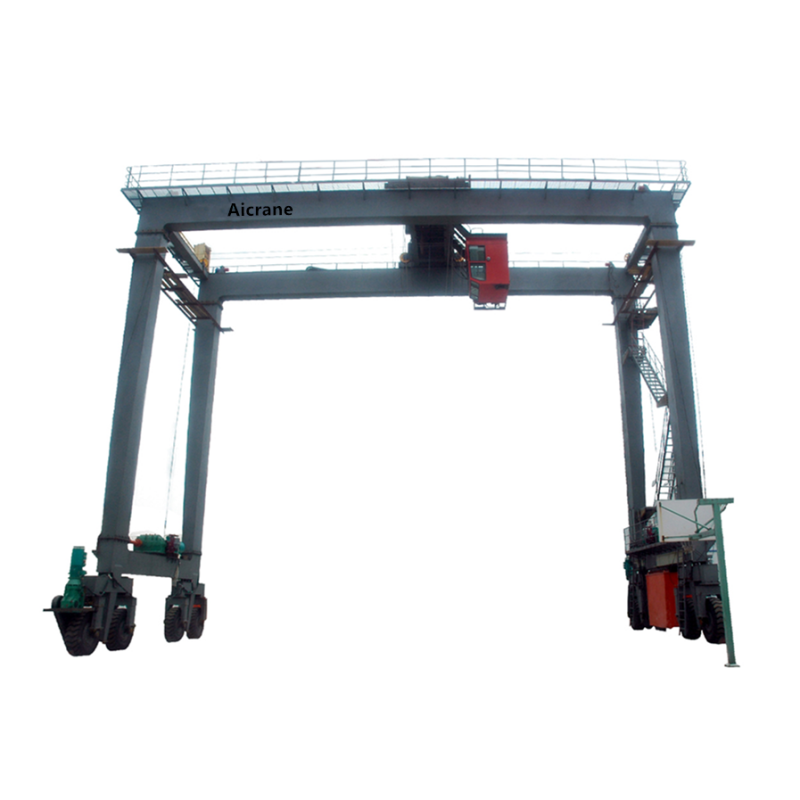

Rubber Tyre Gantry Cranes(RTG) are special equipments to remove, load and unload international standard containers. Running and moving in the yard, it has the advantage of high production efficiency and fine maneuverability, also the small sensibility to unevenness of the ground. RTG has tractor trolley and standard trolley two models. RTG is powered by cable drum. At the same time,diesel generating set is equipped for conditions when the power is off or the crane moves to another yard.
Specification
|
Capacity
|
t
|
30
|
35
|
40.5
|
45
|
50
|
|
Span
|
S(m)
|
18~35
|
18~35
|
18~35
|
18~35
|
18~35
|
|
Lifting height
|
m
|
12.3~21
|
12.3~21
|
12.3~21
|
12.3~21
|
12.3~21
|
|
Lifting speed
|
m/min
|
12.5
|
9.5
|
10
|
9.8
|
9.2
|
|
Trolley speed
|
m/min
|
56
|
48
|
48
|
45
|
45
|
|
Crane speed
|
m/min
|
50
|
44.3
|
44.3
|
42
|
42
|
|
Container
|
|
20' 40'
|
20' 40' 45'
|
20' 40' 45'
|
20' 40' 45'
|
20' 40' 45'
|
|
Work duty
|
|
A6~A8
|
A6~A8
|
A6~A8
|
A6~A8
|
A6~A8
|
|
Track type
|
|
QU80
|
QU80 QU100
|
QU80 QU100
|
QU100 QU120
|
QU100 QU120
|
Container gantry crane
1. Reasonable structure
2. Favorable performance
3. Smooth starting and stopping
4. Safe and reliable traveling
5. Low noise, commodious cabin and good view
6. Convenient maintenance, excellent exchange ability for parts and components
7. Saves electricity specifications
