Factory direct high quality 3D Steel Welding bench Welding Table Accessory Plates for sale

Factory direct high quality 3D Steel Welding bench Welding Table Accessory Plates for sale

FOB Reference Price: Get Latest Price

≥10 Pieces

US $1000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: KC-b1

Material:: Cast Iron/Steel, Cast Iron/Steel

Accuracy:: The tolerance of the two holes is ±0.1mm

Operation Mode:: Guarantee assembly accuracy

Item Weight:: customized

Usage:: ±0.1mm

Structure mode:: box type steel plate

Are standard parts:: Yes

Standard:: JB/T7974-99

Size:: OEM

Product name:: 3D welding plate

Application:: Industrial

Quick Details

Warranty:: 1 years

Place of Origin:: Hebei, China

Brand Name:: Kaicheng, Kaicheng

Model Number:: KC-b1

Material:: Cast Iron/Steel, Cast Iron/Steel

Accuracy:: The tolerance of the two holes is ±0.1mm

Operation Mode:: Guarantee assembly accuracy

Item Weight:: customized

Usage:: ±0.1mm

Structure mode:: box type steel plate

Are standard parts:: Yes

Standard:: JB/T7974-99

Size:: OEM

Product name:: 3D welding plate

Application:: Industrial

Product Specifications

It is processed by CNC machining center. It is divided into two series according to the hole system: Φ28 and Φ16. It is divided into two-dimensional flexible combination tooling and three-dimensional flexible combination tooling according to the structure. The tooling platform is divided into steel piece platform and cast iron platform and board platform according to materials. The grid is engraved with corresponding grid lines. According to customer requirements, the millimeter scale can be drawn on the two right sides of the platform.

Attached form：

3d welding table	Hole diameter	Grid lines	Hole pitch
D28 series	28mm	100mmx100mm	100mm
D16 series	16mm	50mmx50mm	50mm

Origin	Hebei, China
Brand	Kaicheng
Model No	custom
Usege	Welding reference table
Material	Cast Iron/Steel
Structure mode	box type steel plate
Are standard parts	Yes

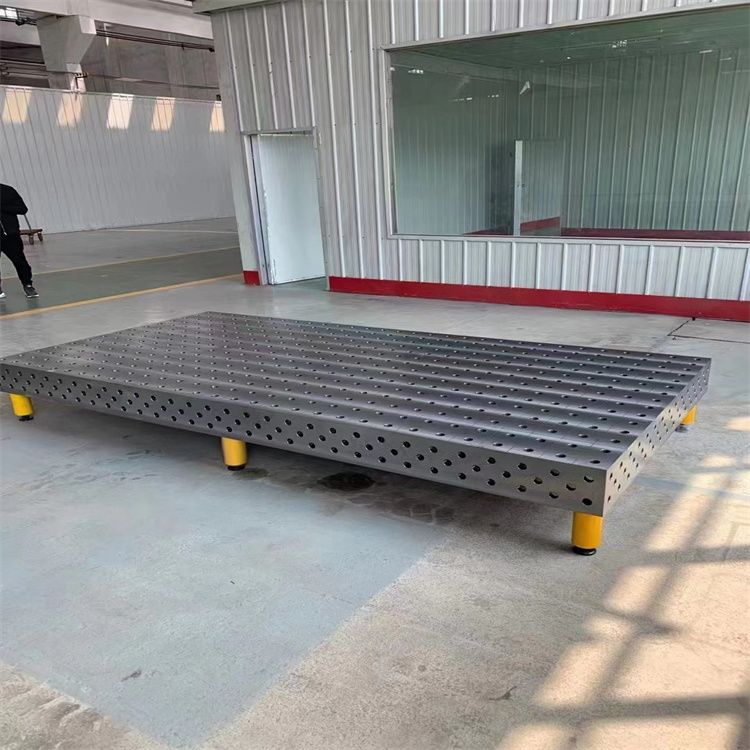

Product Display

Product Advantages

1. Quick positioning fixture, no adhesive tape required.

2. The five sides can be realized through modular extension and extension.
3. Different products and standards can be reused.

4. The ribs at the bottom of the steel plate ensure the stability and
non-deformation of the product.
5. The customer can adopt reasonable support method according to the actual situation.

Title goes here.

Botou Kaicheng Machinery Equipment Co., Ltd. is a manufacturer specializing in the production of measuring tools, casting machine tools, large, medium and small machine tool castings and machine tool accessories. Our company is located in China's famous "Hometown of Foundry" Botou City, Hebei Province.
