Quick Details
-
Output Wave:
-
Pure sine wave
-
Output Power:
-
1 - 200KW
-
Output Continuous Power:
-
1200W
-
Output Power 15 min:
-
1600W
-
Instantaneous impact power:
-
3200W
-
Max. USB Output:
-
5VDC/1A
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Output Type:
-
Single
-
Input Voltage Range:
-
21.6~32VDC /43.2~60VDC
-
Output Wave:
-
Pure sine wave
-
Output Power:
-
1 - 200KW
-
Output Continuous Power:
-
1200W
-
Output Power 15 min:
-
1600W
-
Instantaneous impact power:
-
3200W
-
Max. USB Output:
-
5VDC/1A

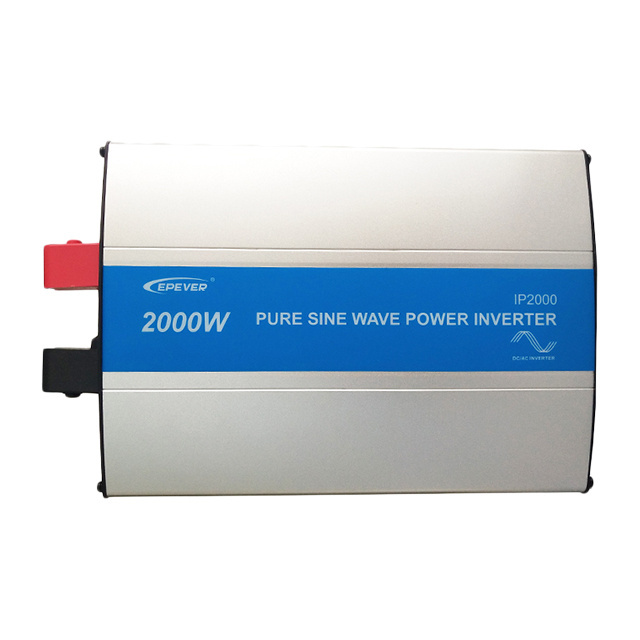

Overview:
IPower series is a pure sine wave inverter which can convert 12/24Vdc into 110/120Vac 220/230Vac. It has the characteristics of concise outline, compact size, high reliability, high efficiency, easy to install and operate and so on. The inverter applicable to household emergency lighting system, vehicle mounted system and small field power supply, etc
Features:
Complete isolation-type inverter technology
Adoption of advanced SPWM technology, pure sine wave output
Dynamic current loop control technology to ensure inverter
reliable operation
Wide DC input voltage range
Low output harmonic distortion (THD≤5%)
Optional output voltage and frequency at 110/120VAC,50/60Hz
High conversion efficiency up to 93%~ 95%
USB output 5VDC/1A*
RS485 communication port*
Extensive Electronic protection
| Model | IP2000-21 | IP2000-22 | IP2000-41 | IP2000-42 |
| Input Rated Voltage | 24VDC | 48VDC | ||
| Input Voltage Range | 21.6~36VDC | 43.2~60VDC | ||
| Input surge voltage | <40V | < 80V | ||
| No-load current | <0.6A | < 0.4A | ||
| Output Voltage |
110VAC(±5%)
120VAC(-7%~+5%) |
220VAC(±5%)
230VAC(-7%~+5%) |
110VAC(±5%)
120VAC(-7%~+5%) |
220VAC(±5%)
230VAC(-7%~+5%) |
| Output Continuous Power | 1600W | |||
| Output Power 15 min. | 2000W | |||
| Instantaneous impact power | 3200W | |||
| Output way | Single phase | |||
| Output Wave | Pure sine wave | |||
| Output Frequency | 50/60Hz(±0.2%) | |||
| Distortion THD | THD≤5%(Resistive load) | |||
| Max. Efficiency | 95% | 95% | 95% | 95% |
| Max. USB Output | 5VDC/1A | |||
| Working environment temperature | -20°C~+45°C | |||
| Storage temperature range | -35°C~+70°C | |||
| Humidity range | ≤95%(N.C.) | |||
| Enclosure | IP20 | |||
| Altitude | <5000m(Derating to operate according to IEC62040 at a height exceeding 1000 m) | |||
| Binding post | Φ 10mm | |||
| Overall dimension | 326.12×231.5×98.5mm | 326.12×231.5×98.5mm | ||
| Mounting dimension | 208×219.5mm | 163×219.5mm | ||
| Mounting hole size | Φ5.5mm | |||
| Net weight | 4.0kg | |||
