Quick Details
-
Brand Name:
-
Kefa
-
Voltage:
-
380V, 380V 50Hz
-
Power:
-
20000
-
Dimension(L*W*H):
-
OEM
-
Weight:
-
10000 kg, About 7T
-
Suitable to process:
-
Glazed Steel Coil
-
Width of the coil:
-
300mm
-
Rollers:
-
13rows
-
Thickness of the plate:
-
1.5-3mm
-
Productivity:
-
5--10m/min
-
Material of the cutting blade:
-
Cr12
-
Computer Control:
-
PLC
-
Processing precision:
-
Processing precision
Quick Details
-
Work Pressure:
-
OEM
-
Production Capacity:
-
High
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Kefa
-
Voltage:
-
380V, 380V 50Hz
-
Power:
-
20000
-
Dimension(L*W*H):
-
OEM
-
Weight:
-
10000 kg, About 7T
-
Suitable to process:
-
Glazed Steel Coil
-
Width of the coil:
-
300mm
-
Rollers:
-
13rows
-
Thickness of the plate:
-
1.5-3mm
-
Productivity:
-
5--10m/min
-
Material of the cutting blade:
-
Cr12
-
Computer Control:
-
PLC
-
Processing precision:
-
Processing precision

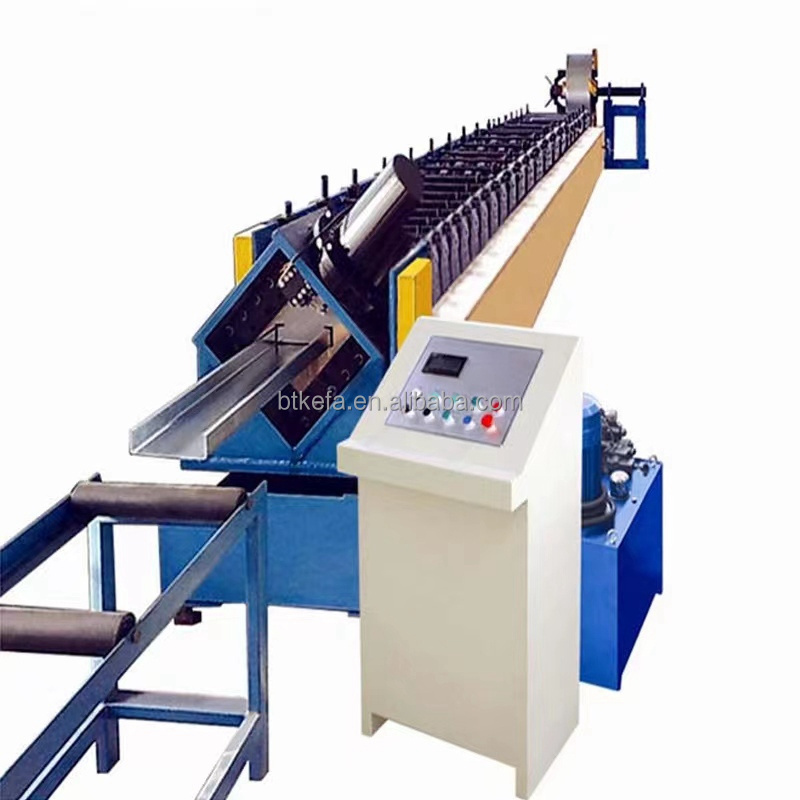

CZ Purlin Roll Forming Machine (Quick Change type CZ80-300)
Main features of interchange cz cold rolled purlins machine
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side
Detailes of interchange cz cold rolled purlins machine
Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined
Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling
Main motor=22KW , Frequency speed control. Forming speed approx.18m/min
Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON)
It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Z Purlin: A=120-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm
Interchange cz cold rolled purlins machine decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 5Ton
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding
CZ purlin machine punching system
with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.
made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa
Auto powered,two unit (3m*2)
Engineers and technicians are rich in experience of designing,developing and manufacturing of machines to provide customers with customized designs. We pay close attention to new trend of technologies.Our products are sold to many countries and regions around the world, and we have established long-term cooperative relationships with customers.
1. Quality Control
A. Every parts of machine is examed carefully without any omit.
B. Welcome to our factory to check machine
2. Installation & Training
A. We supply video to teach buyer how to install and operate machine
B. Welcome customers come to our factory, we are glad to teach you face to face.
C. Our technicians could come to customers' factory to install machine
3. After-sale service
A. One year warranty for parts and shipment of parts is free.
B. 24hours*365 days technical support online.
Our machines are working throughout our country and overseas.Few of our reputed clients have in fact given us their repeat orders for their production expansion.
Established in 2008 year,Kefa is a professional manufacturer specializing in the developing and manufacturing of cold roll forming machine,Silo Making Machine,Curve Profile Roll Forming Machine.
1.Construction Roll Form Machine:
Roof And Wall Panel,Floor & Roof Deck,Purlines,Elevators,Metal Building Beam,Metal Framework,Drywall Stud and Track,False Ceilings,Door & Window Frame,Door Skin,Shutter Door,C/Z/U/L Shaped Steel,Roof Flashings Roll,Arch Roof Panel,Container House
2.Automotive Roll Form Machine:
Carriage Panel,Bicycle/Motorbycle Wheel Rim,Tanker/Trailer Fender,Body Sides.
3.Agricultural Roll Form Machine:
Steel Silos,Greenhouse Pipe/Channels,Conveyor Cover,Layer Cage Frame,Vineyard Post,Corrugated Sheet Curver,
4.Industry Roll Form Machine:
Fence,Leveling/Slit & Cut to Length Line,sheet rolling bending,Cone rolling bending,Lock hoop,Pipe Arch Curve,Expansion Joint,Hand rail,Guard rail,pipe milling
5.Energy & Electricals
Solar Panels,Conduits,Light Fixtures,Pylons,Cable Trays,Cabinets,Box.
6.Logistics Roll Form Machine
Metal Containers,Upright,Shelving,Mezzanine Floors,Walkways,Scaffolding,Cold Rooms,Pallet Rack,
KEFA has been engaged in the metal roll forming industry for many years and devoted to developing some steel structure machines with a professional technology and reasonable price. In particular, we can provide professional service, high quality, through design and installation. At KEFA, our experience is our advantage.
FAQ
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
