Quick Details
-
Battery Type::
-
GEL,AGM,Deep Cycle,Calcium Batteries
-
Efficency:
-
>87%(at full load)
-
Battery Reverse:
-
Yes,by fuse burnt
-
Short-Circuit:
-
Yes,Automatic Shutdown
-
Overload:
-
Yes,Current Limited
-
Cooling:
-
Speed controlled by charging stage
-
Dimensions(mm):
-
208*93*64
-
Weight(KGS):
-
0.9
-
Safety & CE:
-
LVD:EN60335-1 & EN60335-2-29
Quick Details
-
Type:
-
Electric
-
Port:
-
AC
-
Place of Origin:
-
Taiwan, China
-
Battery Type::
-
GEL,AGM,Deep Cycle,Calcium Batteries
-
Efficency:
-
>87%(at full load)
-
Battery Reverse:
-
Yes,by fuse burnt
-
Short-Circuit:
-
Yes,Automatic Shutdown
-
Overload:
-
Yes,Current Limited
-
Cooling:
-
Speed controlled by charging stage
-
Dimensions(mm):
-
208*93*64
-
Weight(KGS):
-
0.9
-
Safety & CE:
-
LVD:EN60335-1 & EN60335-2-29
Features
1. 8
Stages Charging
: T1:Pulse<10V,T2:Soft Start 50%Current,T3:Bulk, to 14.6V,T4:CC to CV,T5:Analysis Battery; T6:Recondition Battery; T7 Float Charging; T8:Maintain Battery.
2.
Short-circuit Protection
: Charger O/P cut-off automatically when short circuit
4.
Overload Protection
: Charger O/P current-limited automatically when overload.
5.
Reverse Polarity Protection
: Charger O/P cut-off automatically when battery reverse connection.
6. 9
LED Display
: Green(power), Red(Fault) & 7LEDs (Charging Stage)

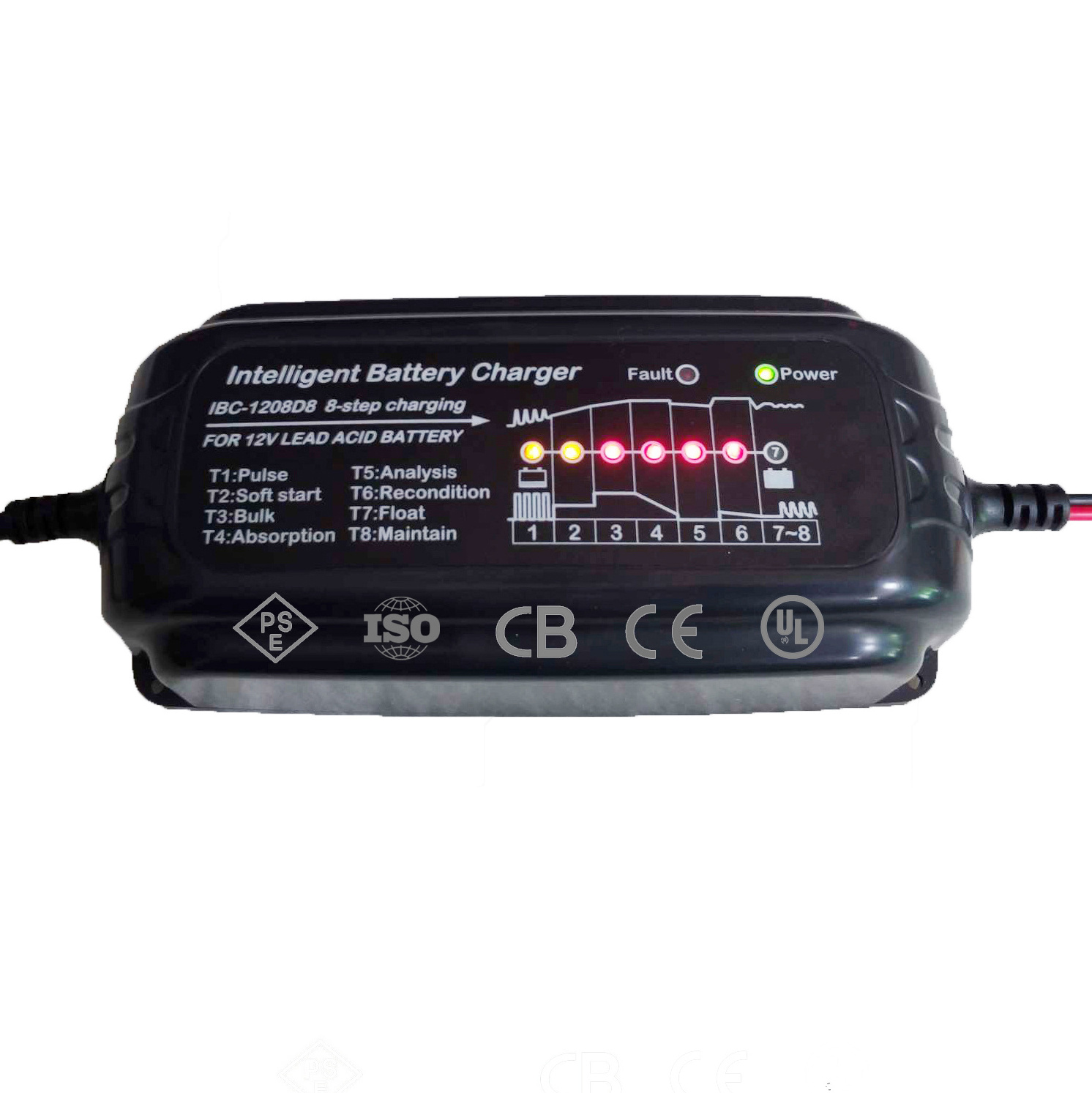

| Model No. | IBC-1208D8 | |
| Charging Type | 8-Stage, fully automatic charging cycle | |
| Input | Voltage | 100-120Vac or 200-240Vac |
| Frequency | 47~63HZ | |
| Output | Voltage | 12V |
| Current (Max.) | 8A | |
| Efficiency | 84.50% | |
| Min. Battery Voltage | >8V | |
| Charging Cycle | Charging Type | 8-Stage, fully automatic charging cycle |
| Pulse / Desulphation (1) | 14.6V ( if battery <10V) | |
| Soft Start (2) | 4Amp until 12V | |
| Bulk (3) | 8Amp until 14.6V | |
| Absorption (4) | Increasing voltage to 14.6V 0.8A | |
| Analysis (5) @1min. | Go to next if battery >12V; go to fault if battery <12V | |
| Recondition (6) | 4Amp until 15.4V | |
| Float (7) | 13.8V 0.4A (max.) ; Stop charging (if current <0.1A) | |
| Maintain (8) | 13.8V 4Amp (if battery voltage <12.5V) | |
| Re-start fully charging cycle (if battery voltage <12V) | ||
| Battery Capacity | 32~75Ah | |
| Display | Charging stage LEDs,Power LED,Fault LED | |
| Ambient Temperature | 0 ~ +40 ℃, output power is reduced automatically at high temperatures | |
1.Above data was based on 25 ℃ ,the O/P current maybe different at different temperature.
2. The charger is designed for charging only for batteries according to the technical specification.
3. Specification is subject to improve without prior notice
Operations:
Operations:
1. Before use, please confirm if the mains voltage is same as the specifications of the charge.
2. Connect your charger to the battery before connect the charger to a wall receptacle.
3. The charger will turn on after a few seconds, the panel LED will lit and then off. At this time, if the battery voltage is >8V, the charger will automatically start charging. If the battery voltage is <8V, the charger will not start charging. If you still want to charge, you can force the output through the key switch (not marked) in the upper right corner, but personnel cannot leave the site to observe the battery temperature status, such as if there is an abnormality, the charging must be stopped immediately
4. If the Fault light is on during charging, there are roughly three reasons:
4.1 *Over-temperature of the charger
4.2 *Reverse connection of the battery
4.3 *The battery capacity is too large, and the timing is not transferred to another stage
5. After the battery is fully charged, if it is not recharged, please disconnect the battery and then unplug the AC plug.
Accessories Reference
Remark: Connecting Wire and Terminal are available upon receiving customer's request.
