VP70 High Quality German Technology vacuum extruder clay mud porotherm brick making machine

Clay brick machine auto brick making project

1. We are direct manufacturers of brick making machine.

2..Using German technology;

3.Save power,save labour

1.mouthpiece  2.distance-piece  3.manometer  4.barrel  5.machine tool  6.vacuum gauge  7.vacuum chamber

8.mixing box  9. speed down box 10.clutch  11.clutch  12. speed down box  13.electric motor speed down

This machine by the superior mixing extruder and lower extruder, two levels of a total of four motor drive, through the gear box reducer are respectively driven stirring shaft, a mud pressing shaft and a reamer spindle, in mixing extruding machine at the end of a vacuum chamber and vacuum pump pumping port is connected. Work, add enough water ageing raw materials from the upper into the mixing part, the blade stirring stirring to move forward, stirring after the section of the blade spiral extrusion, forced stirring the raw material through a comb plate is a chopping knife cut into fine mud into the vacuum chamber, mud in the air through the vacuum chamber is pumped out, raw material became dense and into body, is spiral reamer launched through the nose, mouth machine squeeze into the mud.

1.Vacuum extruder for brick machine  applies to clay,shale,coal gangue,fly ash,split brick etc,to produce all kinds of hollow blocks and solid bricks and color paving bricks, only by changing different mouth-piece.

2.  Extrusion pressure: 3.0MPa, it can make both solid and hollow brick and big holes

3. Main axle techniques: Quenching, tempering, the suppression experiment, so strengthen main axle's steel and toughness .

4.  Reamer techniques : adopts the high chromium casting , passed the aging , quenching and tempering process

5. Techniques of squeeze out cylinder and vacuum chamber: the whole processing, quenching processing, these can increase the toughness and extent complete machine life.

6. T he steel material of shafts and gears adopt high quality carbon steel and alloy steel , the key parts are quenched and tempered treated so as to extend fly ash bricks making machine life .

7.For double shaft mixer blades, we choose 45 Carbon steel as material

8.Differ types of moulds insure that you can produce different types of brick( Solid and hollow brick )

Note :if your brick size is different , then the capacity will differ .We would send different brick capacity list and different brick machine price list to you once we get your mail to us.

Raw materials and Brick sample photos

The extruder is the main parts of brick making plant and our extruder is suitable for producing all kinds of cell brick with material like clay, gangue, shale, fly ash .

The following is part of brick sample which auto brick making machine can produce .

Note: We can provide other different brick mould with different mould sizes according to your requirements

The whole set of machinery of clay brick production line

Clay brick production line

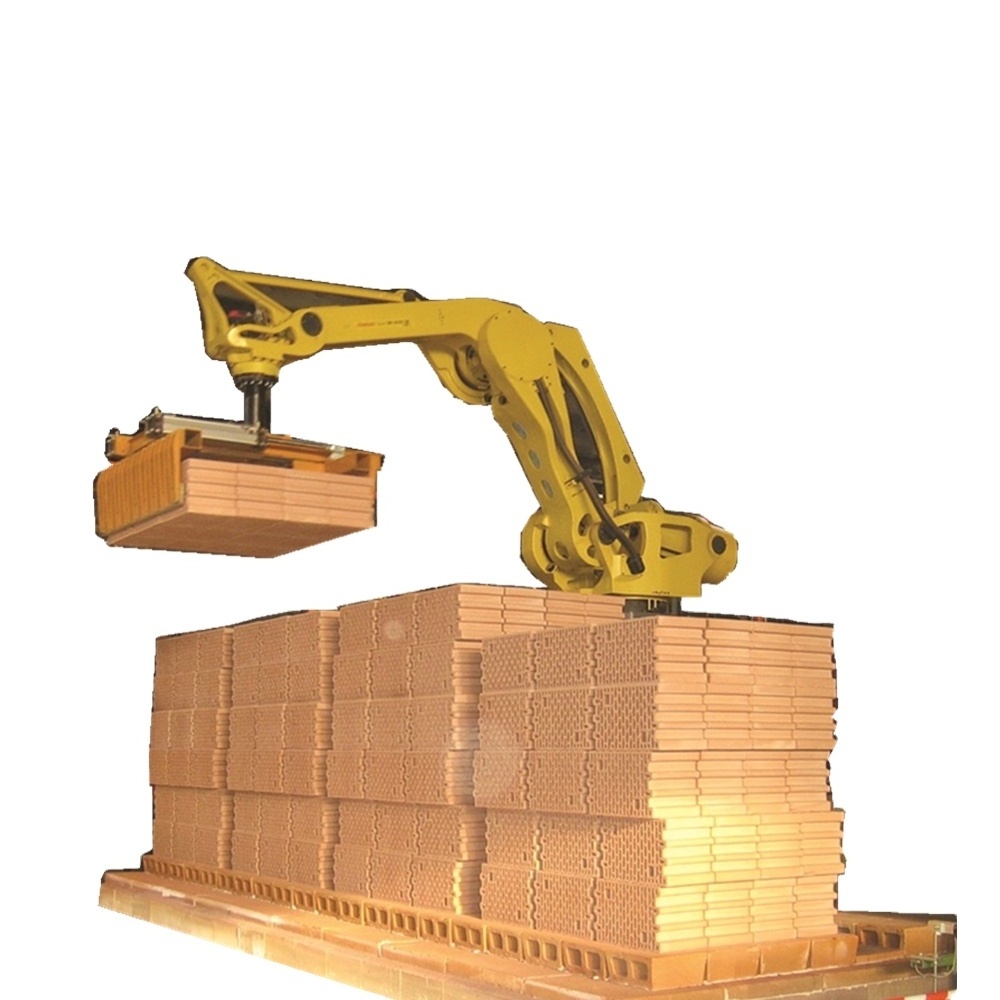

Note: The above production line is based on clay,shale,coal gangue,fly ash or with small stones .And this is full automatic,if you want to save money , you can`t use robotic and setting machine,you can manual setting,but waste time and expend is very high.the automatic is suitable for tunnel kiln,and manual is Hoffman kiln.

Major equipments in clay brick production line.
