- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Apartment
-
Design Style:
-
Modern
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
ruilian
-
Model Number:
-
FIREPROOF BOARD
-
Type:
-
Fire Barrier
-
Material:
-
Polyurethane composite panel
-
Usage:
-
Fire Proof Insulation
-
Advantage:
-
Longer Service Life
-
Color:
-
Grey.ect
-
Function:
-
Soundproof
-
Feature:
-
Fire Retardant
-
Size:
-
Custom Size
-
Thickness:
-
2/4mm Customized
-
MOQ:
-
1 Piece
-
Different Thickness:
-
100mm
-
Ability:
-
Fire Insulation
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Apartment
-
Design Style:
-
Modern
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
ruilian
-
Model Number:
-
FIREPROOF BOARD
-
Type:
-
Fire Barrier
-
Material:
-
Polyurethane composite panel
-
Usage:
-
Fire Proof Insulation
-
Advantage:
-
Longer Service Life
-
Color:
-
Grey.ect
-
Function:
-
Soundproof
-
Feature:
-
Fire Retardant
-
Size:
-
Custom Size
-
Thickness:
-
2/4mm Customized
-
MOQ:
-
1 Piece
-
Different Thickness:
-
100mm
-
Ability:
-
Fire Insulation
Products Description

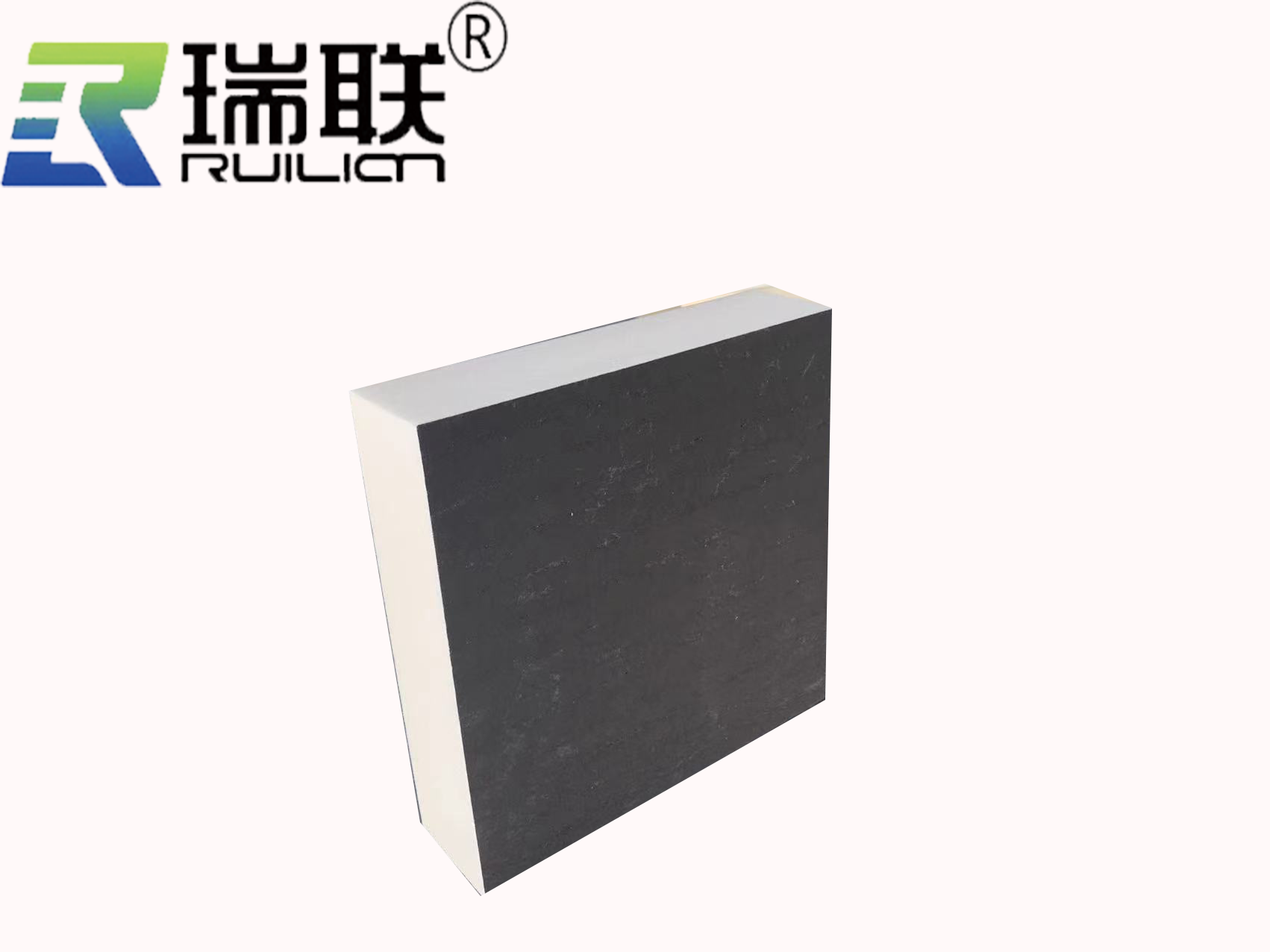

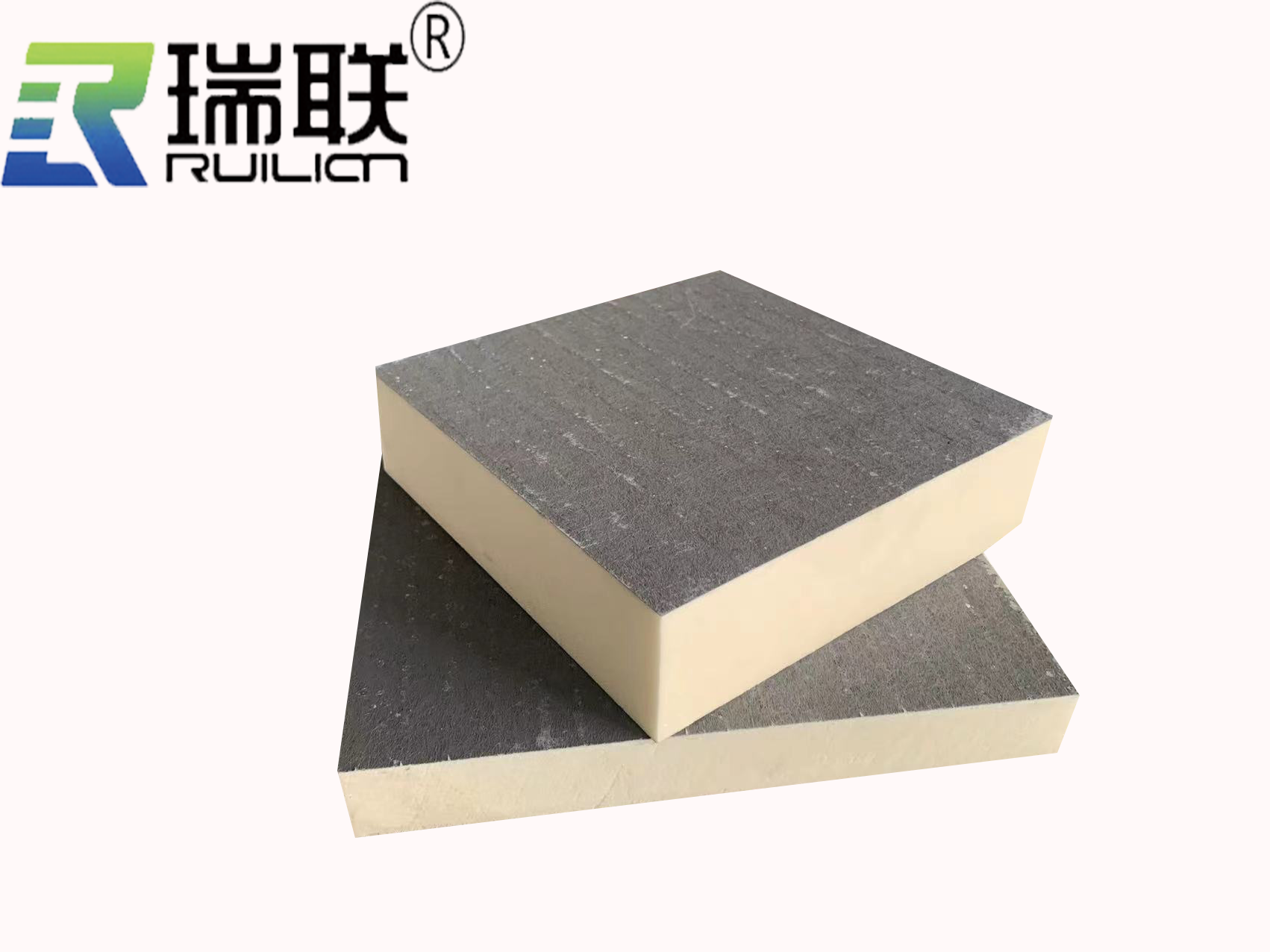

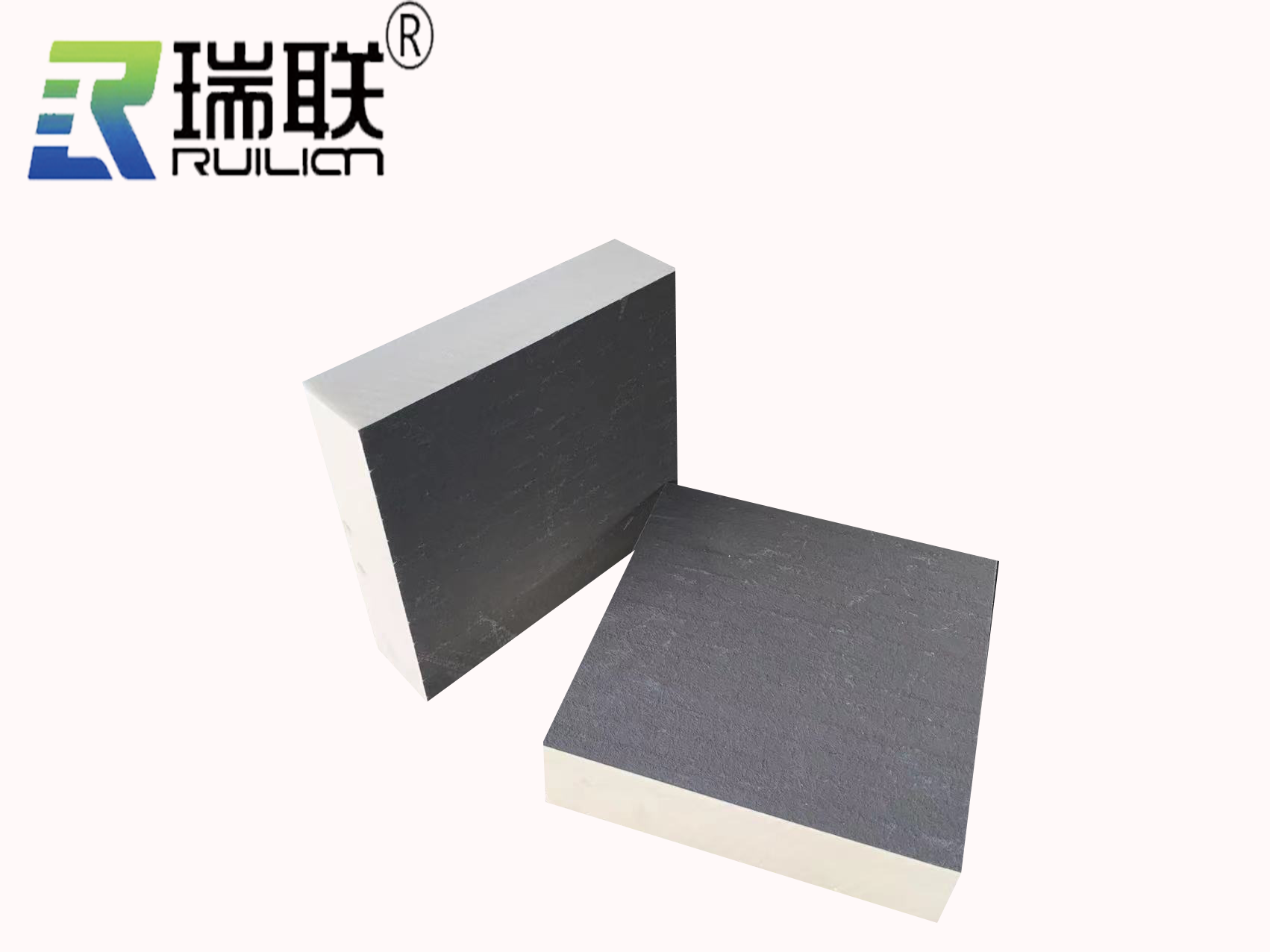

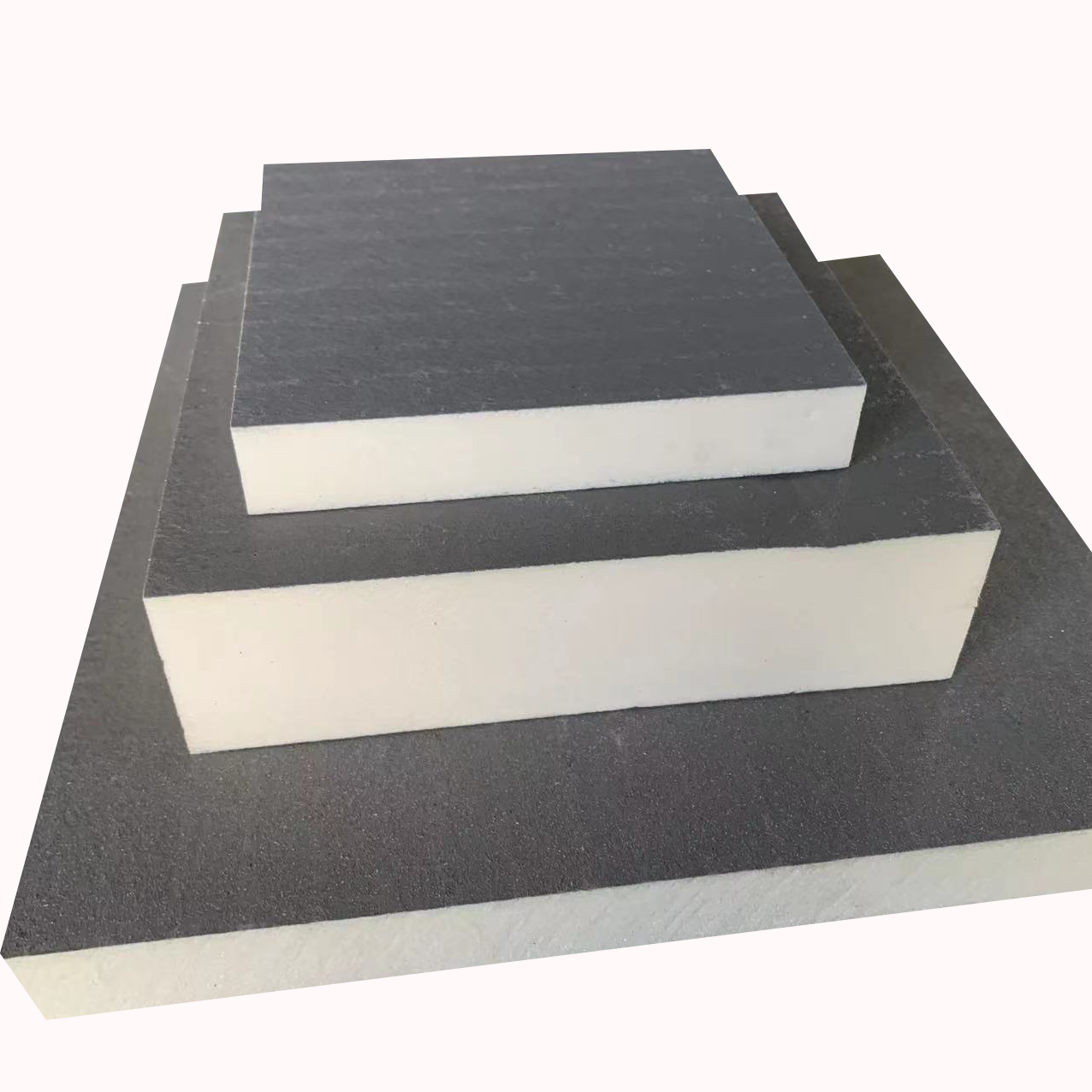

Polyurethane thermal insulation fireproof composite board adopts the most advanced building energy-saving material - polyurethane rigid foam, making full use of the principle of double-group polyurethane liquid crosslinking foaming, in the factory automatic laminated continuous foaming production line and fireproof mortar interface membrane to produce a certain thickness, strength of energy-saving foam board body, the use of composite technology, the fireproof mortar interface material directly composite on the surface of the board body, is a kind of enhanced thermal insulation fireproof composite panel with 3 layer structure
Product performance advantages
1: Strong thermal insulation performance:
it has excellent thermal insulation performance, the lowest thermal conductivity in organic insulation materials (<0.024), and the ideal insulation material to achieve the goal of 75% energy saving in China's buildings.
2:Super flame retardant:
The oxygen index of the polyurethane insulation board is more than 32%, super flame retardant, and it burns for 30 minutes after 1300 °C flame. At up to 150 ° C there is no low drop, non-sticking, no signs of combustion.
3:Good dimensional stability:
The compressive strength of polyurethane insulation board reaches more than 200KP, and the plate has good temperature resistance, high strength and no deformation.
4.weather resistance lasting:
Related polyurethane insulation board has superior wind and load resistance, after more than 6 months of rain and heat cycle weather resistance test, the stability, can be the same life as the building.
Scope of application
Office buildings, office buildings, banks, hospitals, hotels, villas, high-end residences and much more
Product Paramenters
|
category
|
project
|
Performance metrics
|
|
Insulation core
|
Performance density/kg/
m
3
|
≥35
|
|
|
Thermal conductivity w/(m·k)
|
≤0.024
|
|
|
Water absorption (%)
|
≤3
|
|
Integral sheet
|
Dimensional stability(%)
|
70℃ 48≤1.5
-30℃ 48≤1.0
|
|
|
Compression strength(MPa)
|
≥0.15
|
|
|
Tensile bond strength(MPa)
|
≥0.15，And the damage is on the insulation core layer
|
